Product Overview

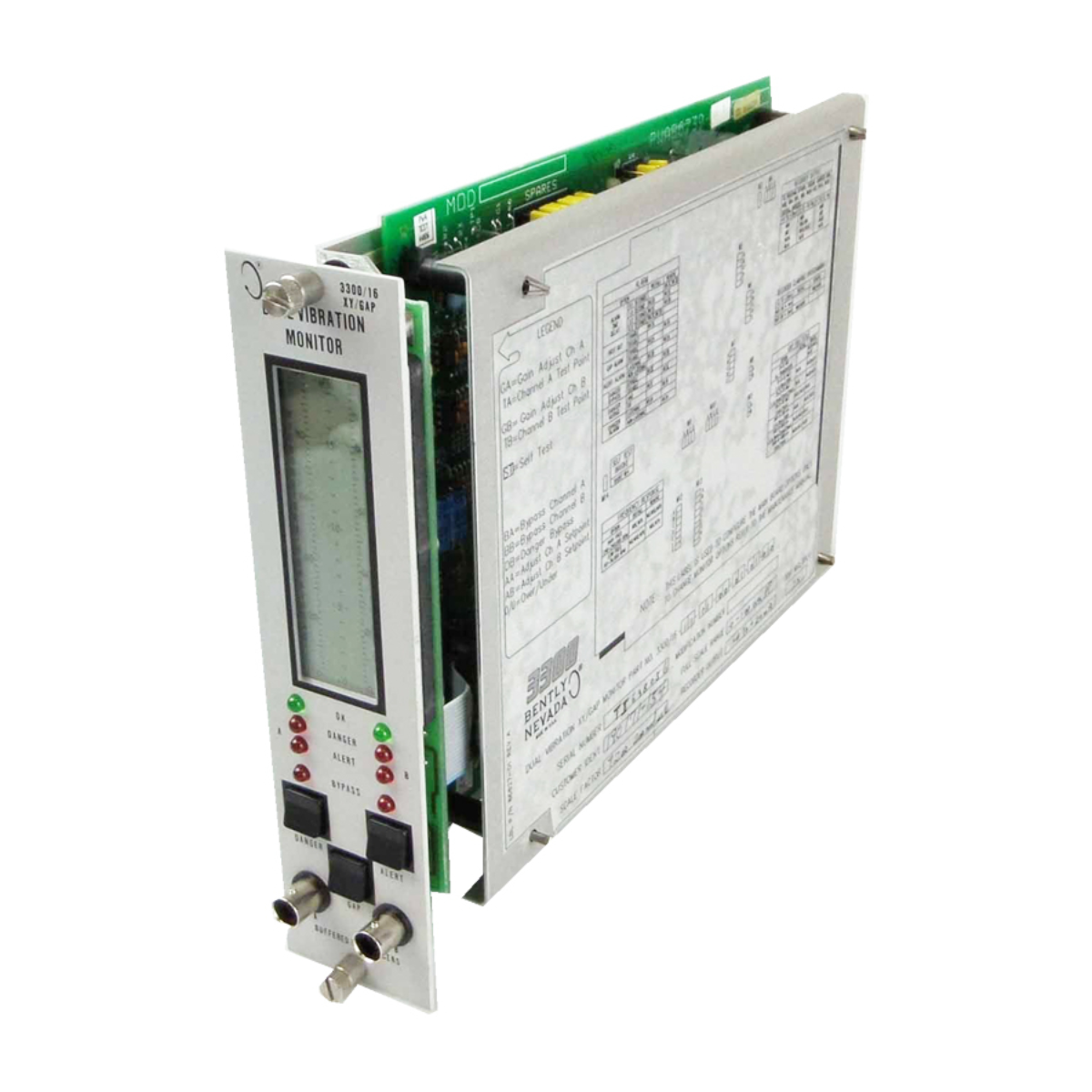

The Bently Nevada 3300/16-14-01-03-00-00-00 XY/GAP Dual Vibration Monitor delivers continuous, real-time measurement of radial vibration and average shaft position. It replaces the legacy 3300/15 model while introducing gap alarms for both vibration channels. Moreover, this dual-channel monitor enhances protection and diagnostics in critical rotating equipment.
It supports inputs from two proximity probes or Proximitor® systems, ensuring precise monitoring across a wide frequency range. Therefore, engineers gain both performance visibility and protection against mechanical failure.
Core Capabilities:
- Dual-channel measurement for radial vibration and shaft gap
- Accepts standard proximity probe signals (3300 XL, 7200 Series)
- LCD bargraph display with integrated probe gap scale
- Programmable trip multiply, alert, and danger setpoints
- API 670-compatible machine protection
Functional Highlights
This module’s flexibility makes it suitable for diverse machinery configurations. Each channel provides programmable sensitivity, frequency range, and output type, supporting reliable signal conditioning and alarm logic.
In addition, its user-friendly interface, combined with front and rear buffered outputs, enables quick diagnostics without interrupting system performance.
Key Advantages:
- Flexible Sensitivity: 100 mV/mil or 200 mV/mil, user-selectable for optimal accuracy
- Wide Frequency Range: 1 Hz to 4,000 Hz for various machine speeds
- Multiple Recorder Outputs: +4 to +20 mA, +1 to +5 VDC, or 0 to -10 VDC
- Gap and Vibration Alarms: Configurable thresholds for each channel
- Compact Installation: Occupies one standard rack slot
Technical Data
| Parameter | Specification |
|---|---|
| Model | 3300/16-14-01-03-00-00-00 |
| Measurement Type | Dual-channel XY/GAP vibration |
| Input Type | 1–2 proximity probe or Proximitor® inputs |
| Input Impedance | 10 kΩ |
| Sensitivity Options | 100 or 200 mV/mil (user-programmable) |
| Frequency Response | 1 Hz – 4,000 Hz |
| Power Consumption | 2 W nominal |
| Recorder Output Options | +4–20 mA, +1–5 VDC, 0 to –10 VDC |
| Output Impedance | 100 Ω (min. load 10 kΩ) |
| Transducer Supply Voltage | –24 VDC or –18 VDC (current limited) |
| Alarm Setpoints | Alert, Danger, and Gap alarms (0–100% digital adjustment) |
| Display Type | 63-segment LCD per channel with center probe gap scale |
| Indicators | OK (Green), Alarm (Red), Bypass (Red) |
| Operating Temperature | 0°C to +65°C |
| Humidity | Up to 95%, non-condensing |
| Rack Requirement | One rack slot (except positions 1 & 2) |
| Weight | 1 kg (2.2 lb) |
Furthermore, its solid-state relays ensure dependable alarm operation, while onboard memory retains configuration and diagnostic data after power loss.
System Integration & Applications
The Bently Nevada 3300/16 Dual Vibration Monitor integrates seamlessly with 3300 Series racks, Keyphasor® modules, and other Bently Nevada monitoring components. It provides essential vibration and position data for turbomachinery, compressors, and pumps.
For instance, operators can combine it with 3300/25 Keyphasor® and 3300/20 modules to form a complete machine protection chain.
Common Applications:
- Radial and axial vibration detection in turbines and compressors
- Shaft position tracking in rotating equipment
- Process condition monitoring for industrial machinery
- Predictive maintenance and reliability programs
