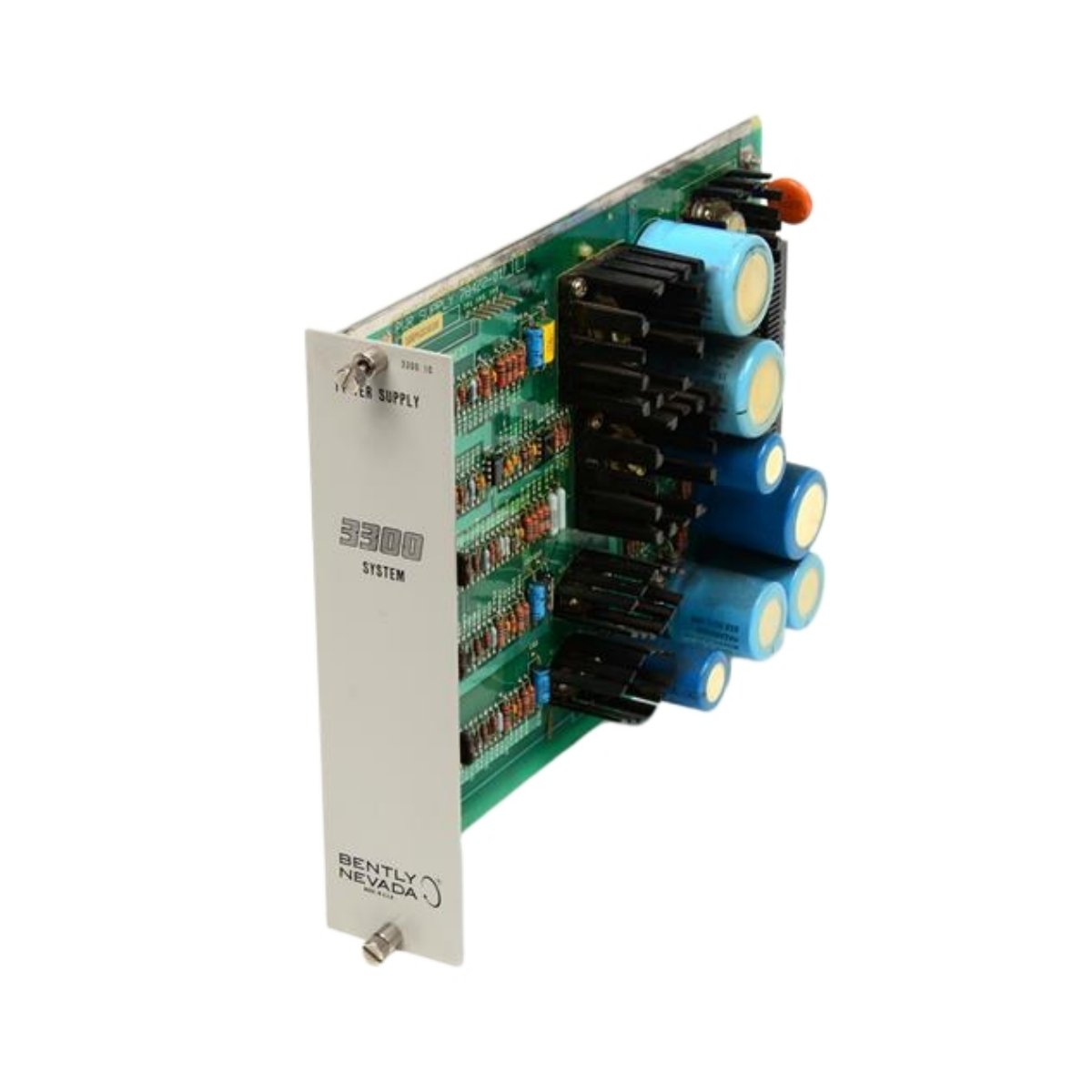

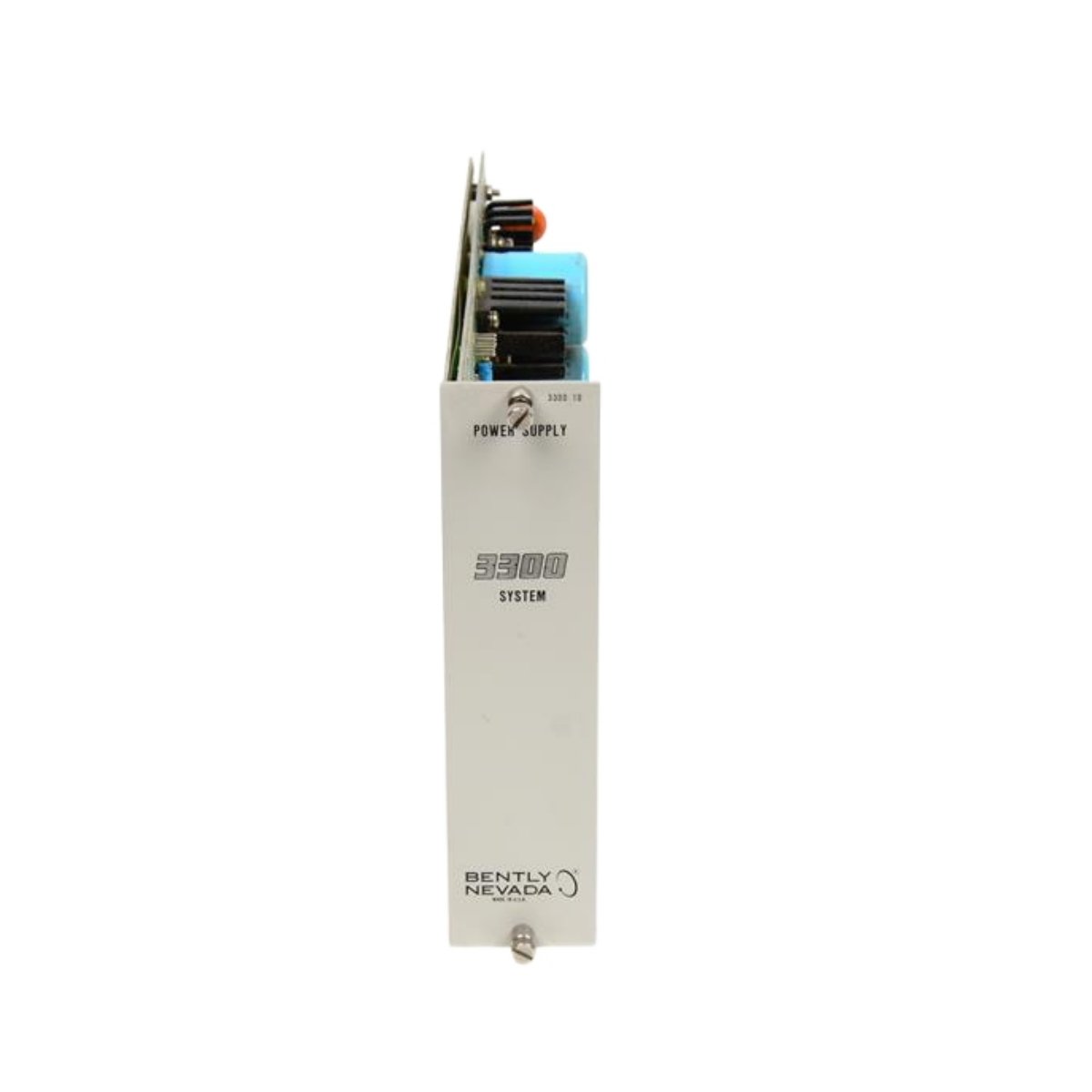

The Bently Nevada 3300/10-01-02-00 is a precision-engineered power supply module built for reliable performance in industrial monitoring systems. It delivers stable AC-to-DC power conversion and supports a wide range of input voltages, ensuring continuous operation in demanding environments. Designed by Bently Nevada (Baker Hughes), this module maintains consistent transducer power output and provides excellent overload protection across multiple monitoring channels.
Technical Overview
The 3300/10-01-02-00 features a compact 5×8×3-inch form factor, making it ideal for standard rack installation. Its power flexibility allows operation with 95–125 Vac or 190–250 Vac, selectable through a positive retention socket. Engineers can configure the output voltage between –24 Vdc and –18 Vdc, depending on application needs. Built-in overload protection safeguards each channel independently, ensuring both safety and long-term reliability.
Key Features
- Dual input range for global compatibility (95–125 Vac / 190–250 Vac)
- User-programmable output voltage: –24 Vdc or –18 Vdc
- Individual channel overload protection for enhanced reliability
- Hermetically sealed OK relay for system integrity
- Compact aluminum design suitable for industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3300/10-01-02-00 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | Power Supply Module |
| Input Voltage Range | 95–125 Vac or 190–250 Vac |
| Frequency Range | 50–60 Hz |
| Input Current | 1.0 A max (95–125 Vac) / 0.5 A max (190–250 Vac) |
| Power Surge at Start-Up | 26 A peak or 12 A RMS for one cycle |
| Fuse Rating | 1.5 A slow blow (95–125 Vac) / 0.75 A slow blow (190–250 Vac) |
| Output Voltage | –24 Vdc (+0%, –2.5%) or –18 Vdc (+0%, –2%) |
| Protection | Overload protection per channel |
| Operating Temperature | 0°C to +50°C |
| Humidity Range | 5%–95%, non-condensing |
| Dimensions | 5 in × 8 in × 3 in |
| Weight | 1 kg (2 lbs) |
| Mounting Type | Standard rack mount |
| Safety Standard | EN 61010-1 |
| EMC Compliance | EN 55011 Class A |
Configuration Options
| Option | Description |
|---|---|
| 01 | Power Input Module: 95–125 Vac 50/60 Hz |
| 02 | OK Relay: Standard, Hermetic |
| 00 | Agency Approval: Not Required |
Design and Build Quality

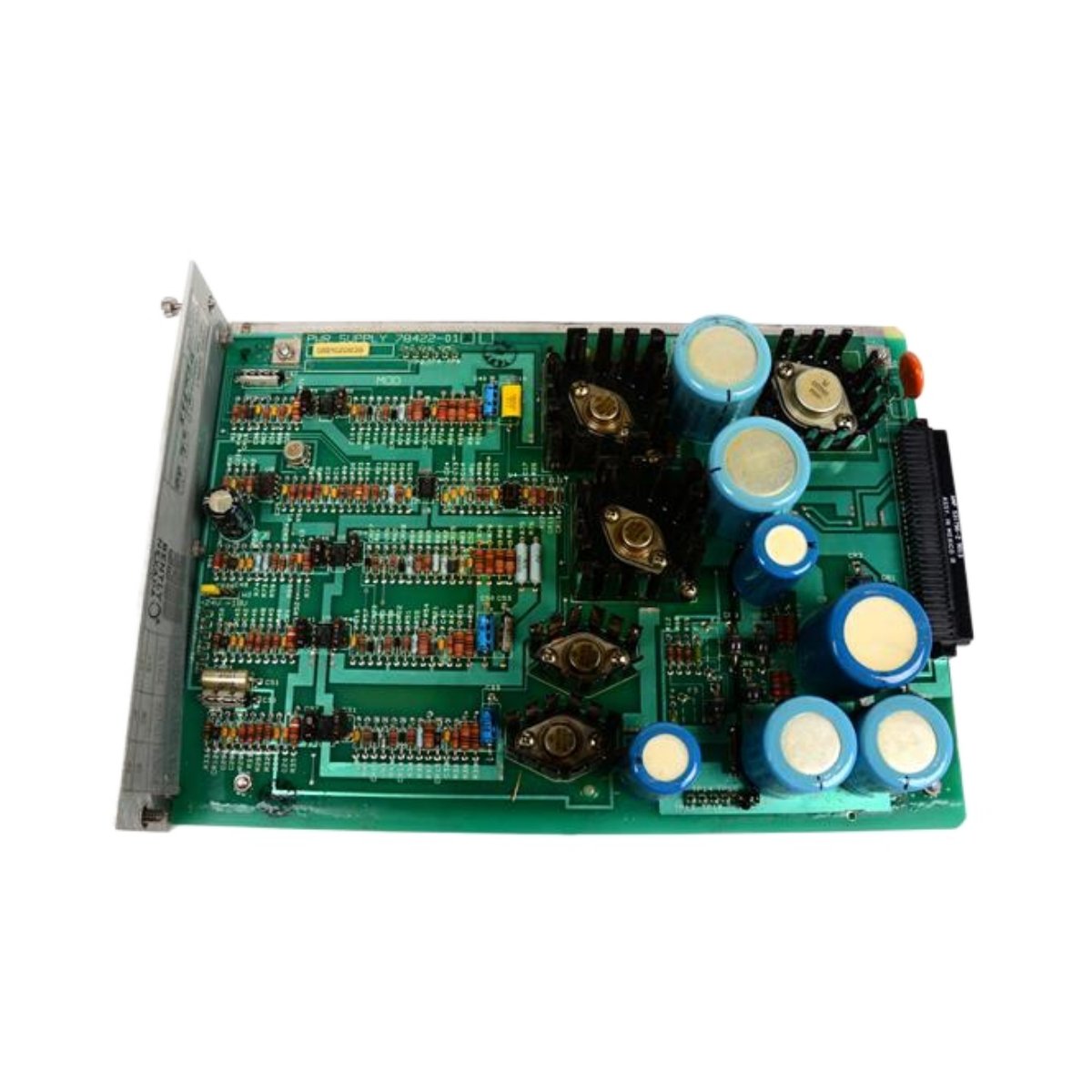

Built with industrial-grade materials, the Bently Nevada 3300/10-01-02-00 maintains high power efficiency and minimal electrical noise. Its precision-engineered housing ensures durability, while internal circuit boards provide reliable performance across extended operating cycles. The module integrates seamlessly with other components in the 3300 series racks, supporting continuous machine monitoring applications in oil and gas, marine, and energy sectors.
Origin, Dimensions, and Weight
- Country of Origin: USA
- Dimensions: 5 × 8 × 3 inches
- Weight: 1 kg (2 lbs)
Applications
The 3300/10-01-02-00 power supply module supports vibration and condition monitoring systems, delivering steady transducer power for rotating machinery such as turbines, compressors, and motors. Its flexible configuration and rugged design make it ideal for harsh industrial environments requiring high uptime and precise performance.
Details
| Weight | 1 kg |
|---|---|
| Dimensions | 50 × 70 × 30 mm |
