Product Overview

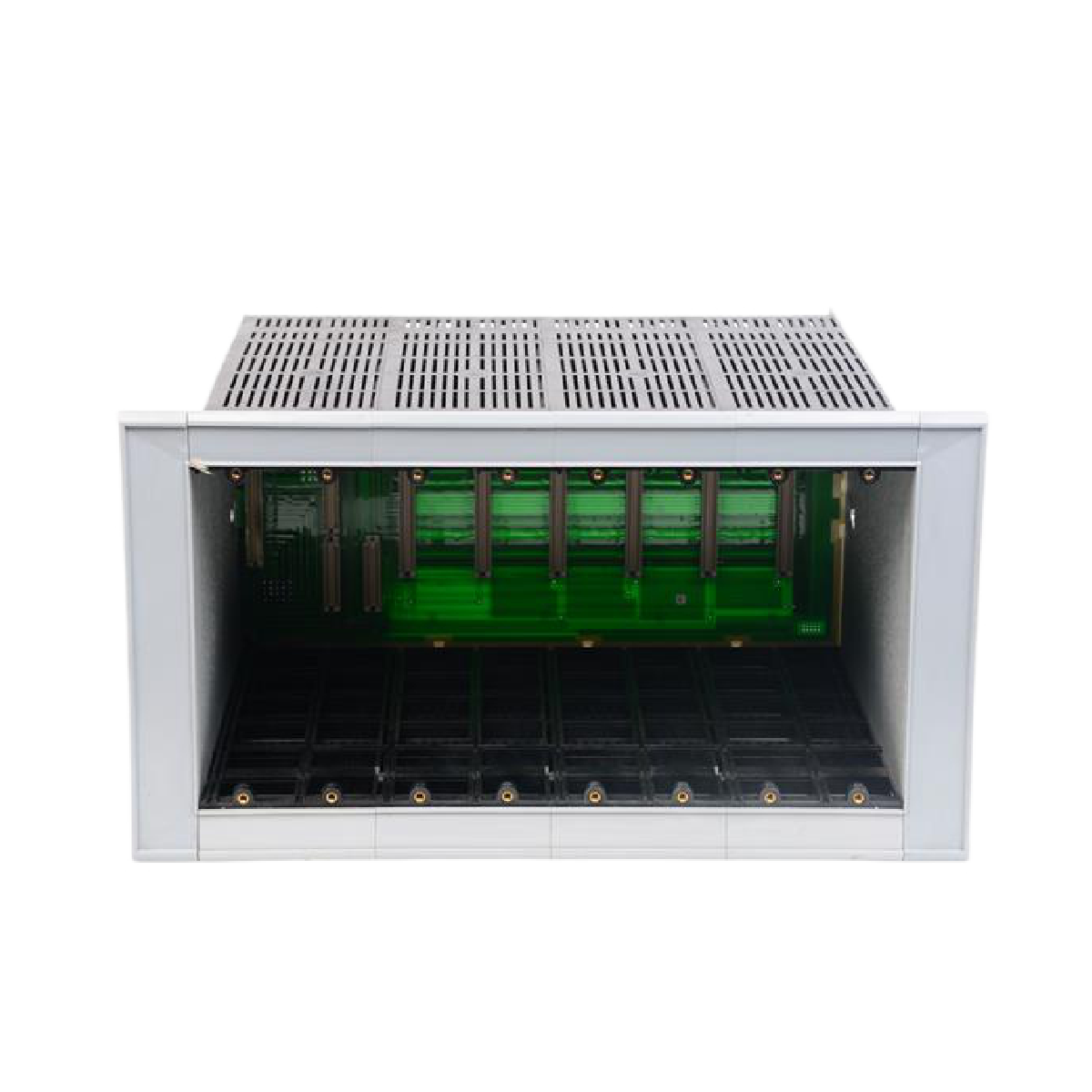

The Bently Nevada 3300/05-24-00-00 Rack is an expandable mounting frame engineered for the 3300 Monitoring System. It securely accommodates the Power Supply, System Monitor, and multiple monitoring modules in a compact, durable housing. Moreover, its injection-molded, conductive plastic frame effectively dissipates electrostatic discharge to enhance system reliability.
This rack provides front and rear accessibility for easy installation and maintenance. Therefore, users can easily manage wiring and module replacement without disrupting ongoing operations. The design supports long-term scalability for growing condition monitoring setups.
Functional Highlights
The 3300/05-24-00-00 offers a flexible and efficient platform for turbine and rotating machinery monitoring. Its modular layout and tool-free configuration ensure straightforward system customization.
Key Benefits:
- Optimized Configuration: Positions 1 and 2 reserved for Power Supply and System Monitor; remaining slots available for monitor modules.
- Electrostatic Protection: Anti-static, conductive materials prevent system damage from discharge.
- Ease of Identification: Factory-engraved bezel tags and clear plastic overlays simplify module labeling.
- Effortless Expansion: Plug-in modular design eliminates the need for internal wiring.
- Durable Construction: Engineered for industrial reliability and long-term use.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 3300/05-24-00-00 |
| Rack Type | 3300 Series Modular Mounting Rack |
| Material | Conductive, anti-static injection-molded plastic |
| Rack Size | 10-position rack (SDI/DDI compatible) |
| Position 1 | Power Supply module slot |
| Position 2 | System Monitor slot |
| Positions 3–14 | User-selectable monitoring modules |
| Agency Approval | None (option “00”) |
| Mounting Option | Standard |
| Weight | Approx. 1 kg (2.2 lbs.) |
In addition, each monitor position includes a dedicated rear input/relay module position, supporting reliable signal and alarm management.
System Integration
The Bently Nevada 3300/05-24-00-00 Rack integrates seamlessly with existing Bently Nevada 3300 series monitoring systems. It supports various monitor types such as vibration, temperature, and speed monitors. Furthermore, the modular design allows users to expand system capacity without additional cabling or configuration complexity.
This flexibility makes the rack ideal for turbines, compressors, pumps, and other critical rotating equipment where continuous condition monitoring is essential.
