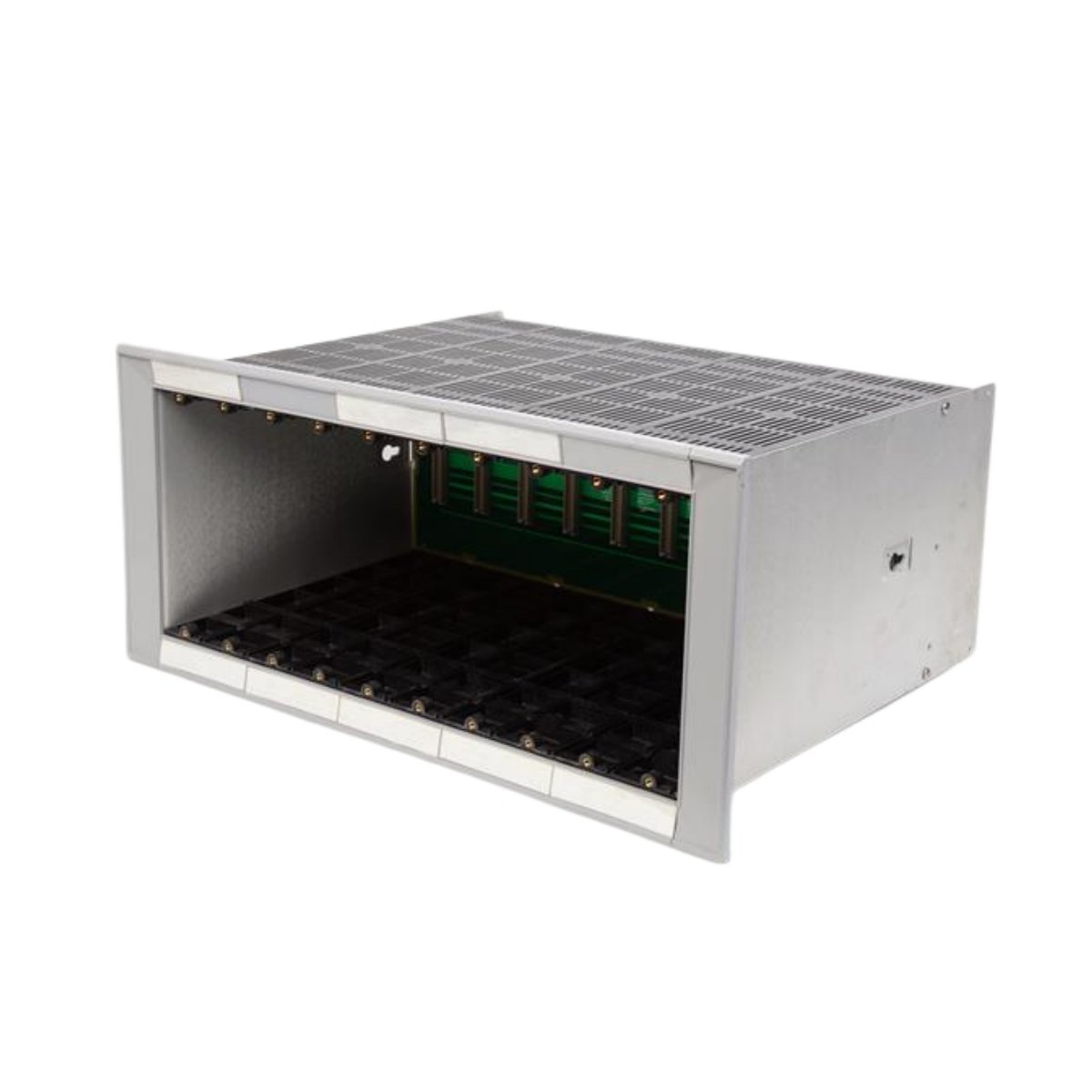

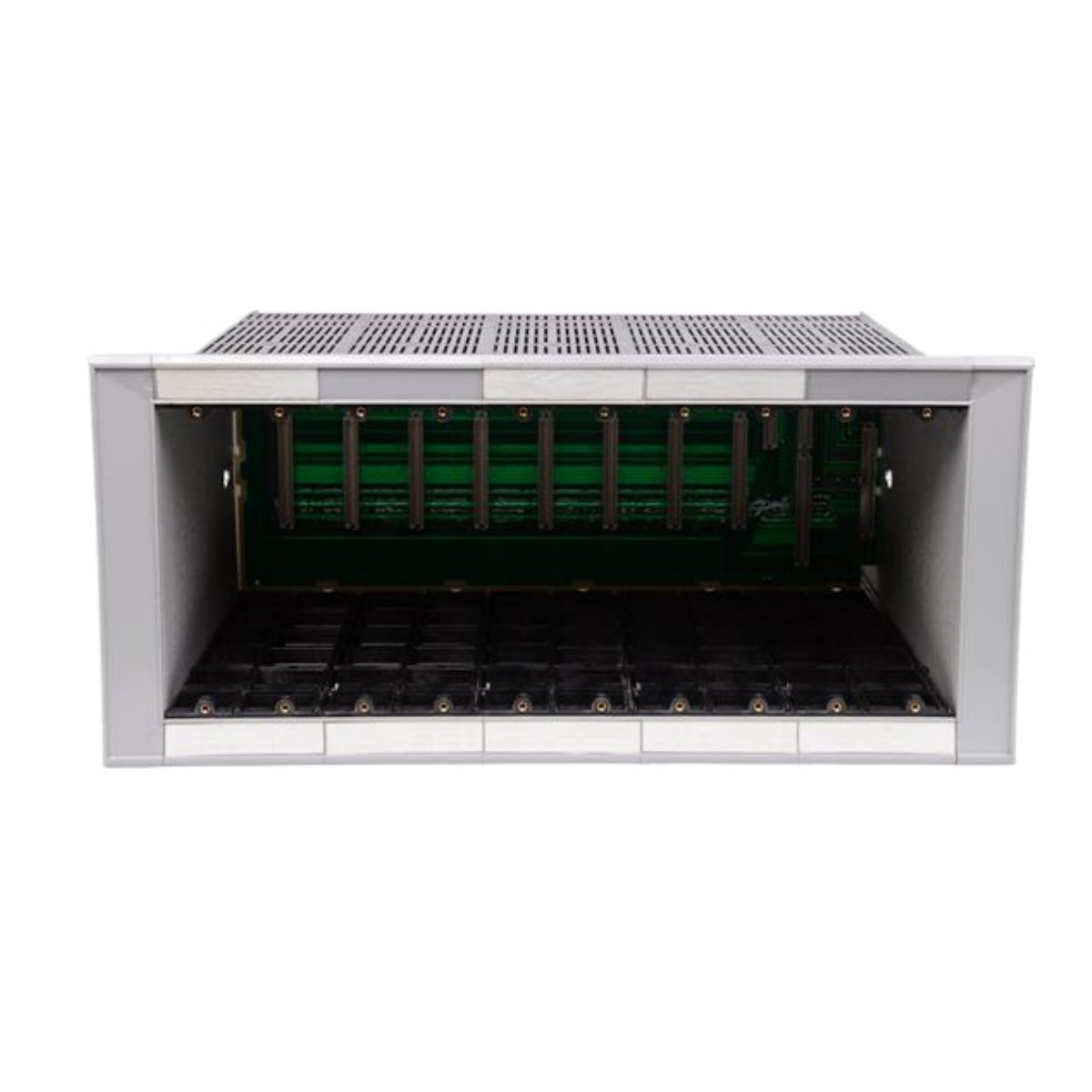

The Bently Nevada 3300/05-23-00-00 is a high-performance 8-slot rack designed for precise vibration and condition monitoring systems. Built from durable anodized aluminum, it ensures reliable performance under demanding industrial conditions. This rack supports multiple monitoring modules and provides stable power and communication interfaces for critical rotating machinery applications.
Technical Overview
The 3300/05-23-00-00 rack offers a standard 8U height and 19-inch width, making it ideal for integration into standard industrial cabinets. Its modular layout allows flexible configuration and quick replacement of monitoring cards without system downtime. With a power rating of 24V DC and 1.5A current consumption, it efficiently supports multiple Bently Nevada modules while maintaining excellent thermal stability across a wide temperature range.
Key Features
- Compatible with Bently Nevada monitoring modules
- Supports 8 module positions with secure mounting
- Designed for both ATEX and CSA/NRTL/C hazardous area certifications
- Constructed from lightweight anodized aluminum alloy
- Excellent temperature resistance and mechanical durability
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3300/05-23-00-00 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | 8 Slot Rack |
| Voltage Rating | 24V DC |
| Current Consumption | 1.5A |
| Rack Height | 8U (14 in / 355.6 mm) |
| Rack Width | 19 in / 482.6 mm |
| Rack Material | Aluminum Alloy |
| Finish | Anodized |
| Ethernet Connectivity | 10/100Base-T |
| Serial Ports | RS-232 / RS-485 |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +85°C |
| Certifications (CSA) | Class I, Div 2, Groups A-D, T4 @ 65°C |
| Certifications (ATEX) | II G, EEx nC(LL) IIC, T4 @ -20°C to +60°C |
| Certification Number (CSA) | 150368-1002151 (LR 26744) |
| Certification Number (ATEX) | BN26744C-55A |
Dimensional Details
| Variable | Inches | Millimeters |
|---|---|---|
| A | 19.00 | 482.6 |
| B | 16.18 | 411.0 |
| C | 16.57 | 420.9 |
Origin, Weight, and Build
- Country of Origin: USA
- Weight: 12.2 kg (27 lbs)
- Construction: Rigid aluminum frame with anodized surface for corrosion resistance
Certifications and Approvals
The Bently Nevada 3300/05-23-00-00 meets both ATEX and CSA/NRTL/C safety standards, allowing it to operate safely in hazardous environments. It maintains stable operation up to +60°C and is certified for Group IIC gas environments, ensuring compliance for a wide range of industrial applications.
Applications
This 8 Slot Rack serves as a reliable foundation for Bently Nevada monitoring systems, particularly in turbine, compressor, and rotating equipment diagnostics. It provides dependable signal integrity, secure communication, and easy system expansion, ensuring long-term reliability in power generation, oil and gas, and marine sectors.
Details
| Weight | 12.2 kg |
|---|---|
| Dimensions | 482.6 × 411 × 420.9 mm |
