Product Overview

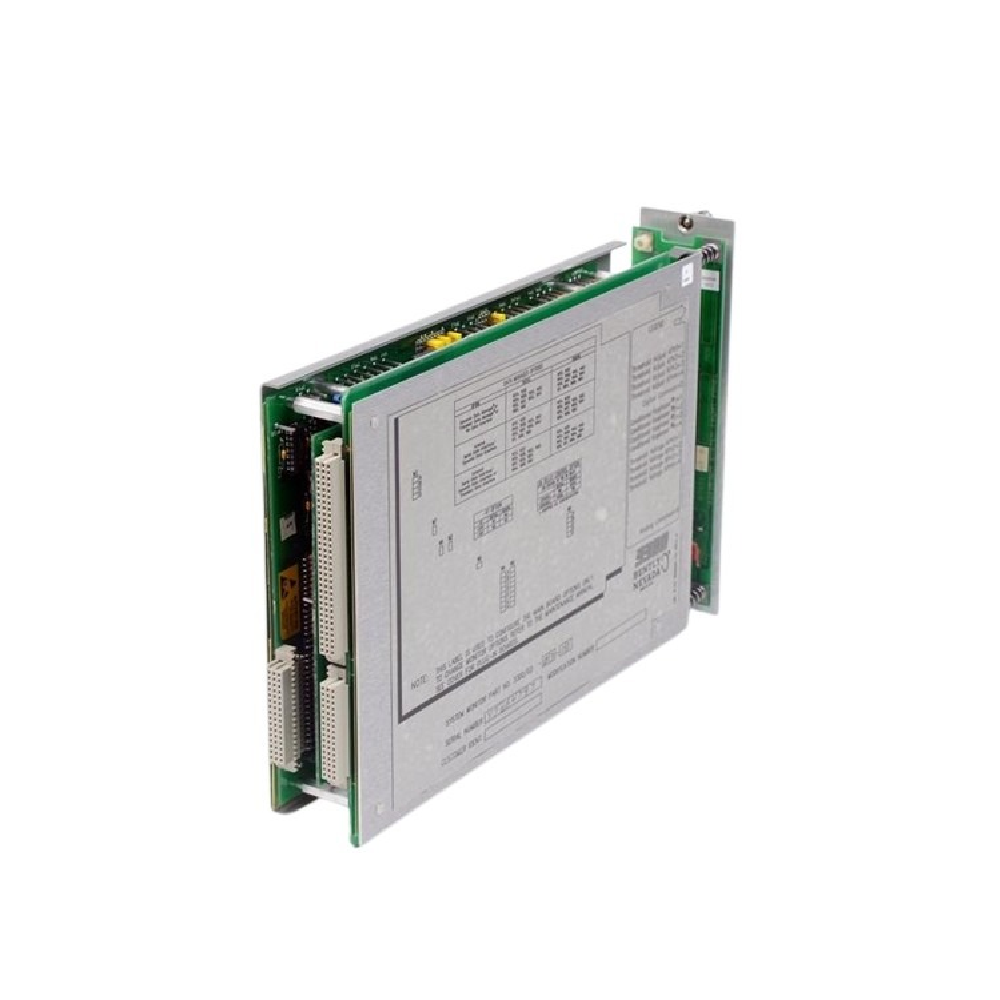

The Bently Nevada 3300/03-01-00 System Monitor is designed for high-performance vibration and phase monitoring in industrial rotating machinery. It ensures accurate, real-time signal processing, making it an essential part of predictive maintenance systems. Built with reliability in mind, it integrates easily into existing Bently Nevada monitoring platforms.
Functional Highlights
This module accepts up to four Keyphasor inputs, offering precise phase and speed measurements.
It supports user-selectable frequency ranges up to 10 kHz and delivers superior signal accuracy, ensuring dependable monitoring across diverse operating conditions.
Moreover, its diagnostic LEDs simplify system status checks, helping technicians quickly identify voltage or communication faults.
Key Benefits:
- Reliable monitoring of vibration and phase data
- Compatible with Bently Nevada 3300 systems
- Built-in LED diagnostics for easy troubleshooting
- Compact and durable design for long-term industrial use
Technical Specifications
| Category | Specification |
|---|---|
| Power Consumption | 2 W (standard), 4.6 W with interface options |
| Inputs | Up to four Keyphasor signals |
| Input Impedance | 10 kΩ |
| Frequency Range | User-selectable, up to 10 kHz |
| Dynamic Signal Accuracy | ±0.3% typical, ±0.7% max at 25°C |
| Phase Accuracy | ±0.2° typical, ±1° max at 25°C |
| Gap Accuracy | 0.3% of DC signal range |
| RPM Accuracy | ±1 rpm |
| Output Impedance | 100 Ω |
| Keyphasor Power Supply | -24 VDC or -18 VDC, short-circuit protected |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | Up to 95% RH, non-condensing |
| Rack Requirement | One position, installs next to power supply |
| Weight | 0.9 kg (2.2 lbs) |
System Integration
The 3300/03-01-00 System Monitor fits seamlessly within Bently Nevada 3300 Series racks. It works alongside proximity probes and Keyphasor transducers to deliver continuous condition monitoring.
In addition, its short-circuit-protected power supply ensures safe operation even under challenging environments.
FAQ
Q1: Is the Bently Nevada 3300/03-01-00 System Monitor brand new and original?
Yes, all units are 100% brand new and original from Bently Nevada. We ship only authentic products with full traceability.
Q2: How long does delivery take?
Typically, orders ship within 3 days to 2 weeks, depending on quantity and stock level. Shipments are handled via DHL, FedEx, or UPS.
Q3: What happens if there’s a quality issue?
We offer a 30-day return policy for quality-related issues. Customers may request replacement or refund within this period.
Q4: Can it be used with older 3300 series racks?
Yes, it is fully compatible with standard Bently Nevada 3300 system racks and Keyphasor configurations.
Details
| Weight | 0.9 kg |
|---|
