High-Accuracy Industrial Measurement Sensor

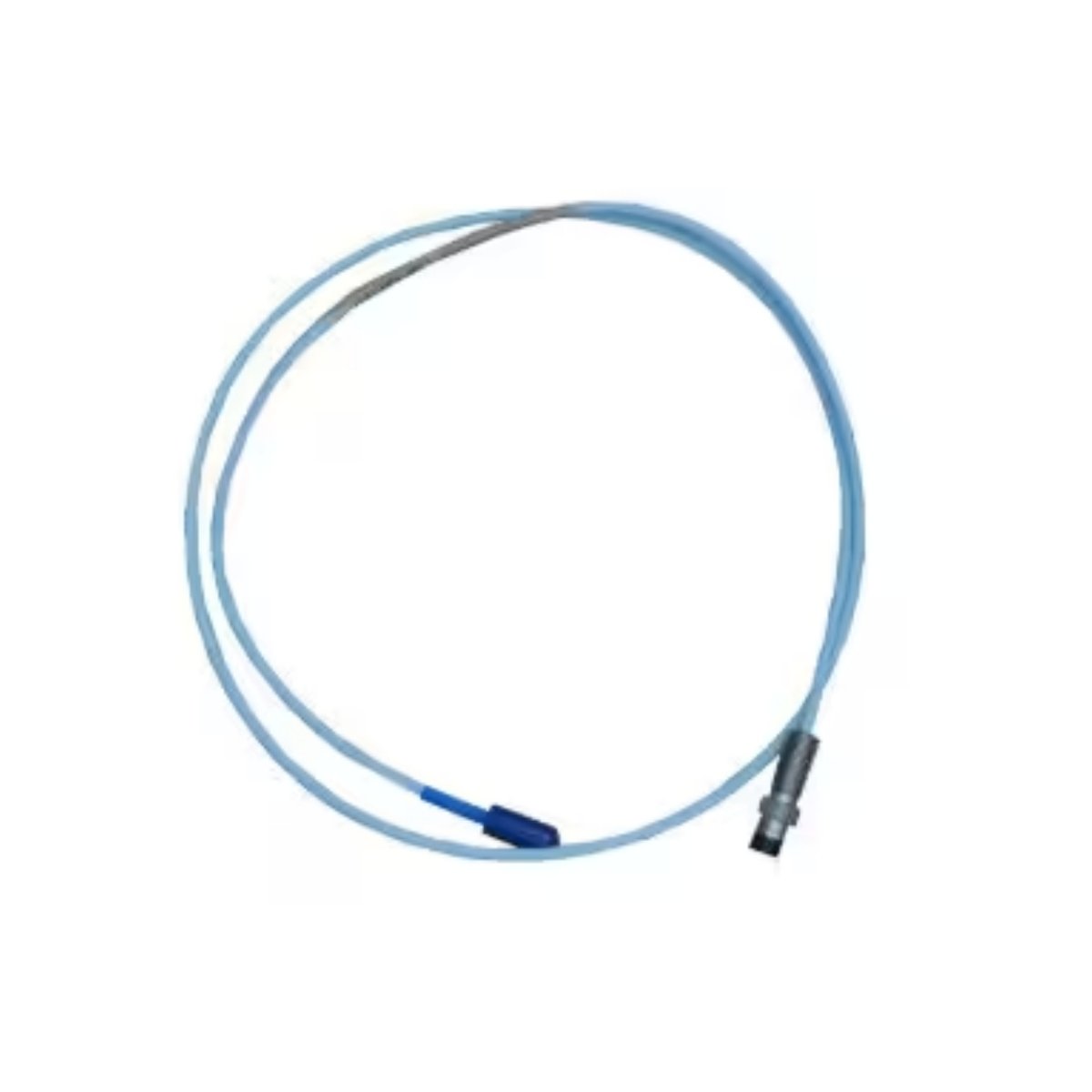

The Bently Nevada 30002-00-50-18-02 from the Proximity Sensors series delivers precise displacement measurements across demanding industrial environments. It supports configurable analog outputs, and it maintains stable accuracy through wide temperature variations, so engineers can integrate it confidently into vibration and position monitoring systems.
Performance and Functional Overview
This sensor covers a 25 mm measuring range with 0.001 mm resolution, and it sustains fast response up to 500 kHz. It offers 4–20 mA or 0–10 V outputs, which allows flexible integration with modern control hardware. Its stainless-steel body ensures strong durability, while the M8 × 1 threaded interface supports secure mounting in compact machinery spaces.
Technical Specifications
General Information
| Parameter | Value |
|---|---|
| Brand | Bently Nevada |
| Model | 30002-00-50-18-02 |
| Series | Proximity Sensors |
| Type | Proximity Sensor |
Performance
| Parameter | Value |
|---|---|
| Measuring Range | 0–25 mm (0–1 in) |
| Frequency Range | 2 Hz–500 kHz |
| Input Voltage | 24 VDC ±10% |
| Output Signal | 4–20 mA or 0–10 V |
| Resolution | 0.001 mm |
| Sensitivity | ±0.5% of reading |
| Accuracy | ±0.1% of full scale |
Environmental
| Parameter | Value |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| Max Cable Length | 30 m (98 ft) |
| Thread Type | M8 × 1 |
| Material | Stainless Steel |
| Weight | 150 g (5.29 oz) |
Durability
| Parameter | Value |
|---|---|
| Vibration Resistance | MIL-STD-810G (up to 50 g) |
| Shock Resistance | MIL-STD-810G (up to 500 g) |
| IP Rating | IP67 |
Certifications & Compliance
| Parameter | Value |
|---|---|
| CE Certification | Yes |
| EMI Shielding | High |
| Power Consumption | 10 mA at 24 VDC |
Mounting & Cable
| Parameter | Value |
|---|---|
| Mounting Type | Flange Mount |
| Mounting Torque | 5–7 Nm |
| Cable Type | Shielded, 2-wire, twisted pair |
Compliance
| Parameter | Value |
|---|---|
| Standards | RoHS, CE, UL |
Dimensions & Weight
- Thread Size: M8 × 1
- Sensor Weight: 150 g (5.29 oz)
Origin
- Made in: Not specified by manufacturer
Details
| Weight | 0.15 kg |
|---|
