Overview

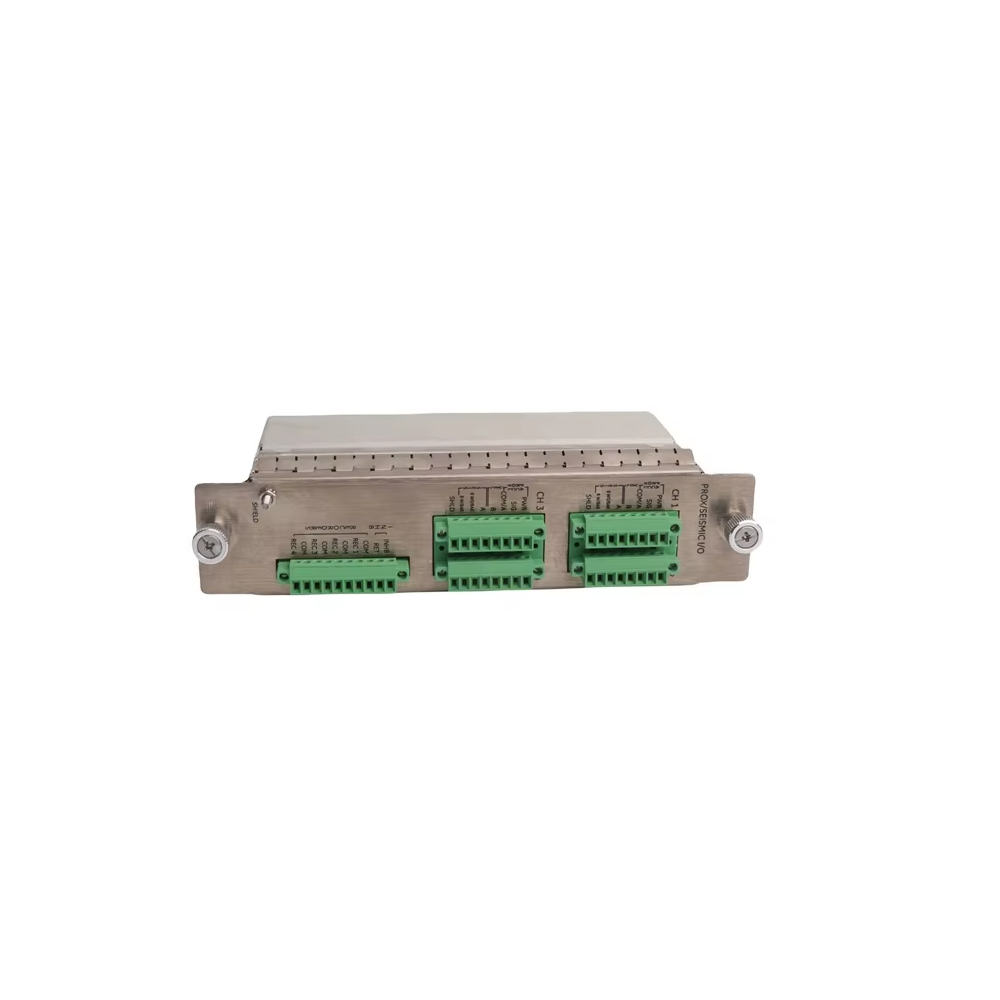

The Bently Nevada 289837-01 Proximitor/Seismic I/O Module provides precise vibration and position measurements for industrial machinery. Moreover, it supports four configurable channels, each compatible with proximity, velocity, or acceleration transducers. Users can define alarm thresholds, measurement types, and signal conditioning through 3500 Rack Configuration Software.
Functional Highlights
- Multi-Measurement Capability: Supports radial vibration, thrust, eccentricity, differential expansion, acceleration, and velocity.
- Configurable Alarm Setpoints: Users can set Alert and Danger thresholds from 0–100% full-scale.
- LED Indicators: OK, ALERT, DANGER, and Bypass LEDs provide instant operational feedback.
- Buffered Outputs: Each channel features coaxial connectors with 499 Ω output impedance and short-circuit protection.
Technical Data
| Specification | Details |
|---|---|
| Power Consumption | 6.8 W typical |
| Input Impedance | 10 kΩ for Proximitor and Acceleration inputs |
| Radial Vibration Sensitivity | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) |
| Differential Expansion Sensitivity | 0.394 mV/µm (10 mV/mil) or 0.787 mV/µm (20 mV/mil) |
| Acceleration Sensitivity | 10 mV/(m/s²) (100 mV/g) |
| Velocity Sensitivity | 20 / 5.8 / 4 mV/(mm/s) pk |
| Alarm Accuracy | ±0.13% full-scale |
| Operating Temperature | -20°C to +65°C (-4°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
| Dimensions (H x W x D) | 208.28 x 48.26 x 127 mm |
| Weight | 0.68 kg |
System Integration
This module integrates seamlessly into Bently Nevada 3500 monitoring racks, offering real-time vibration tracking. In addition, it drives external relays, recorders, and alarm systems, ensuring machinery safety. Users can configure frequency response filters, gap filters, and proportional outputs for all measurement types to match plant requirements.
