Overview

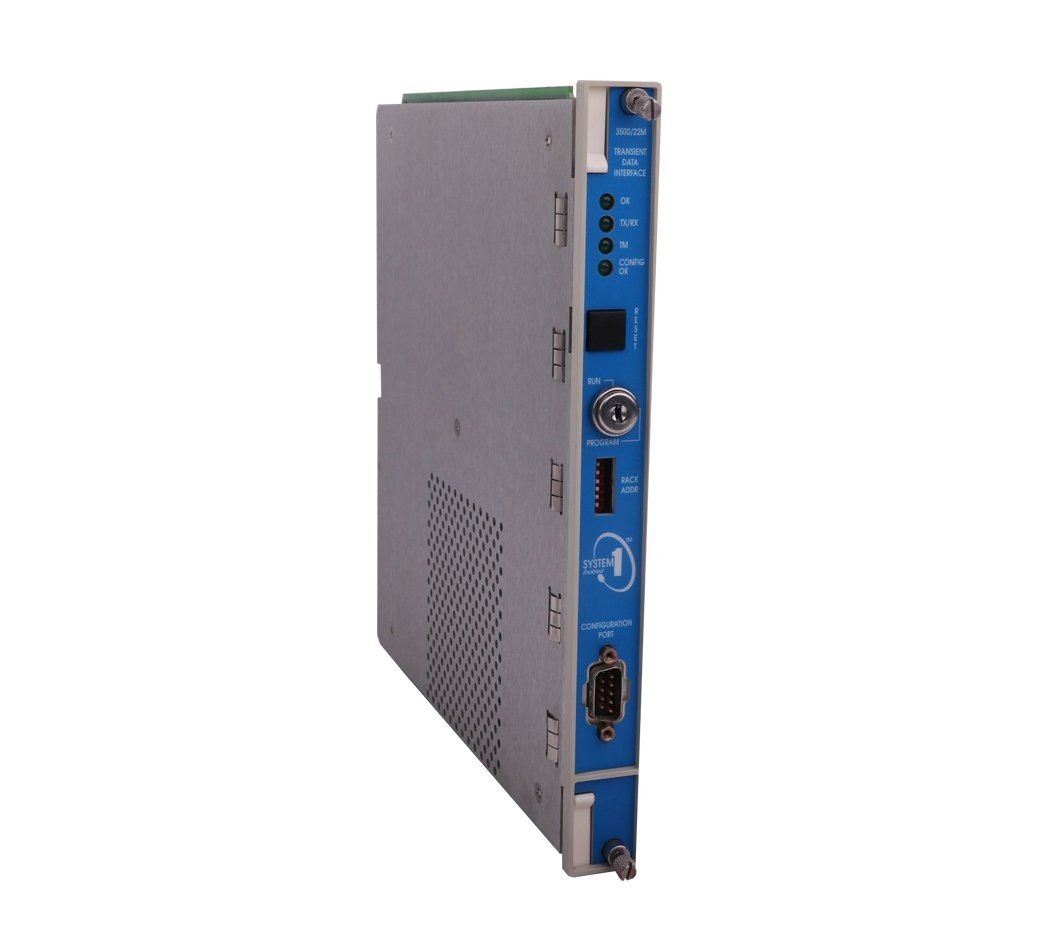

The 288055-01 + 146031-01 from Bently Nevada is a Standard Transient Data Interface (TDI) for 3500 systems. It functions as a Rack Interface Module (RIM) and communication processor. The module collects steady-state and transient waveform data and transfers it to GE System 1* machinery management software via Ethernet. It operates independently of the critical monitoring path, ensuring system reliability.
Key Features
- Captures both steady-state and transient waveform data for diagnostics.
- Integrates with M series monitors such as 3500/40M and 3500/42M.
- Supports Ethernet communication using BN Host Protocol and BN TDI Protocol.
- Optional Channel Enabling Disk enables dynamic or transient data capture.
- Provides TMR functionality for voting logic and channel comparison.
- LED indicators and OK relay allow clear operational monitoring.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Part Numbers | 288055-01, 146031-01 |
| Module Type | Standard Transient Data Interface (TDI) |
| Application | 3500 System Rack Interface |
| Power Consumption | 10.5 Watts |
| Front Panel Communication | RS232 up to 115.2 kbaud |
| Ethernet I/O | 10Base-T/100Base-TX, 100Base-FX Fiber Optic |
| LED Indicators | OK, TX/RX, TM, CONFIG OK |
| OK Relay | 5A @ 24V DC / 120V AC, Normally Energized |
| Controls | Keylock (RUN/PROGRAM), Address Switch (up to 127) |
| System Contacts | Trip Multiply, Alarm Inhibit, Rack Reset (<1mA DC) |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Battery Life | Powered: 38 years at 50°C, Unpowered: 12 years |
| Module Dimensions | 241.3 mm x 24.4 mm x 99.1 mm (9.50 x 0.96 x 3.90 in) |
| Weight | 0.34 kg (0.75 lb) |
Applications
Bently Nevada 288055-01 + 146031-01 suits industrial monitoring setups requiring high-precision waveform data capture. It ensures seamless integration with System 1* software and supports TMR applications for redundancy monitoring.
Why Choose Bently Nevada 288055-01 + 146031-01
This TDI module provides reliable data collection while maintaining independent operation from the critical path. Its compact size and lightweight design allow easy installation in 3500 system racks. Advanced communication protocols ensure efficient and accurate data transfer.
Details
| Weight | 0.34 kg |
|---|
