Overview

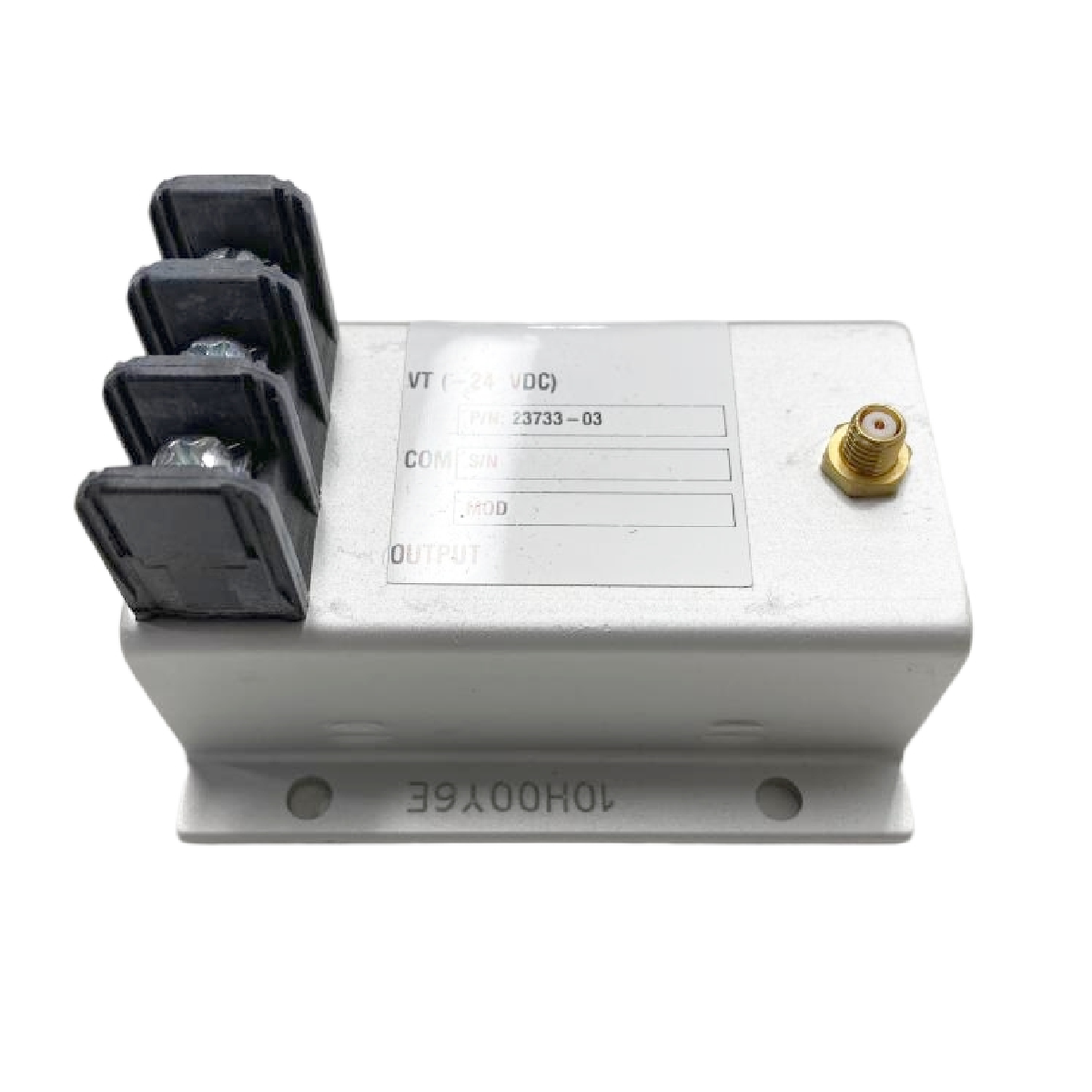

The Bently Nevada 23733-03 converts accelerometer signals into voltage and velocity outputs.
It monitors vibrations for gas turbines and aero-derivative generators.
Compatible with 3300 series monitors including 3300/95, 3300/15, and 3300/25.

Key Features

• Converts accelerometer charge input to voltage acceleration signal
• Scales signal to 10 mV/g peak (1.02 mV/m/s² peak)
• Buffers signals for long-distance cable connections
• 12th-order bandpass filter with option BB corner frequencies
• Converts acceleration into velocity (100 mV/in/s peak, 3.94 mV/mm/s peak)
• Supports balanced and single-ended outputs
• Suitable for GE LM 2500, LM 5000, LM 1600, and LM 6000 turbines

Technical Specifications

• Part Number: 23733-03
• Supply Voltage: -23 VDC to -26 VDC
• Maximum Current Draw: 22 mA
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Filter Type: 12th-order bandpass
• Compatible Monitors: 3300/95, 3300/15, 3300/25
• Country of Origin: USA

Compatible Accelerometers

• Supports 50 pC/g and 100 pC/g charge-mode accelerometers
• Works with Bently Nevada 45357-01 (50 pC/g, 1000 pF capacitance)
