Product Overview

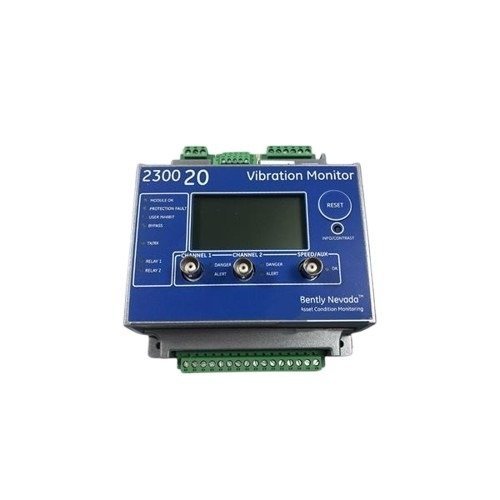

The Bently Nevada 2300/20-00 monitor delivers reliable condition monitoring for Balance of Plant (BOP) equipment. Moreover, it supports dual seismic channels and speed monitoring for comprehensive asset management.
In addition, the module provides real-time operational data through an integrated LCD and LED indicators, ensuring quick detection of abnormal conditions. Therefore, this solution minimizes unplanned downtime effectively.
Functional Highlights
This monitor offers versatile outputs and flexible inputs for seamless system integration. For instance, it includes two 4-20mA outputs and two relay outputs with programmable setpoints for alarms.
Key Benefits Include:
- Dual Seismic Channels: Continuous monitoring of motors, pumps, and fans
- Flexible Inputs: Compatible with seismic transducers, proximity probes, and magnetic pickups
- Buffered Outputs: Three BNC transducer outputs for diagnostics
- Advanced Communication: Supports Ethernet 10/100 Base-T and Modbus
- Software Configurable: PC software simplifies setup and data visualization
Moreover, the LCD and LED indicators provide local readings for immediate operational awareness.
Technical Data
| Parameter | Specification |
|---|---|
| Model Number | 2300/20-00 |
| Module Type | Monitor with 4-20mA Outputs |
| Power Input | 18–36 VDC, 6.5 W |
| Seismic Channels | Compatible with ICP accelerometers (2–80 g peak range) |
| Speed Input | Supports multiple sensors up to 120,000 RPM |
| Relay Outputs | SPDT, Max 400 VAC / 150 VDC, 6A @ 250 VAC / 24 VDC |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
| Dimensions | 127 x 127 x 76.2 mm (5″ x 5″ x 3″) |
| Weight | 1.03 kg (2.26 lbs) |
| Mounting | Panel mount or DIN rail adapter included |
In addition, the monitor provides configurable relay setpoints and buffered outputs, enhancing diagnostics for critical machinery.
Typical Applications
The 2300/20-00 monitor is suitable for BOP equipment such as pumps, fans, and motors. Moreover, it integrates easily with System 1 software, enabling remote monitoring and real-time data analysis.
For instance, operators can monitor vibration, speed, and operational status continuously, preventing unplanned downtime. Therefore, this device improves asset reliability and reduces maintenance costs.
Details
| Weight | 1.03 kg |
|---|
