Module Overview

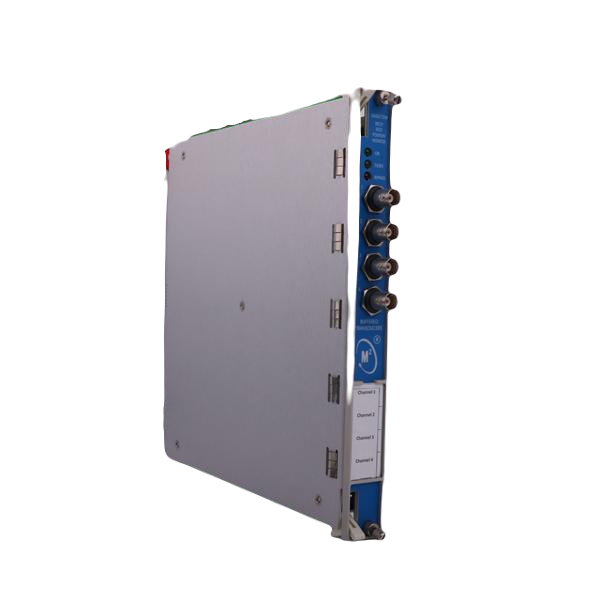

The Bently Nevada 190214-01 3500/94M Normal I/O Module is a key component of the 3500 Machinery Protection System. It facilitates seamless communication between the touch controller and display unit, ensuring accurate data transfer and visualization in real-time monitoring environments.
This module supports high-performance analog and digital signal management, designed for dependable operation in demanding industrial conditions. Moreover, it fits conveniently into a single rear slot within the 3500 rack, simplifying system integration and maintenance.
Functional Highlights
Engineered for reliability and precision, the 3500/94M I/O Module provides stable communication between system components. Its robust design ensures consistent operation across temperature and humidity variations, maintaining dependable monitoring even in harsh environments.
Key Advantages:
- Provides smooth RS232 communication with touch controllers.
- VGA output ensures clear, high-quality display performance.
- Compact design fits one full-height rear rack slot.
- Wide operating temperature range for field reliability.
- Compatible with Bently Nevada’s 3500 monitoring architecture.
In addition, this module’s lightweight construction improves ease of installation while maintaining strong electrical isolation and thermal endurance.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 190214-01 |
| Type | 3500/94M Normal I/O Module |
| Inputs | RS232 port for communication with touch controller |
| Outputs | VGA port with analog RGB and sync signals |
| Operating Temperature | -20°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 99.1 mm (9.50 × 0.96 × 3.90 in) |
| Weight | 0.34 kg (0.75 lb) |
| Rack Requirement | Occupies one full-height rear slot |
| Replacement Part | 190214-01 – Normal I/O Module |
Therefore, the 190214-01 module is ideal for maintaining optimal I/O performance and display accuracy across a range of machinery monitoring applications.
System Integration
The Bently Nevada 3500/94M I/O Module integrates seamlessly into the 3500 rack, connecting directly with the system’s touch controller and display interface. It ensures continuous and accurate monitoring output, supporting critical process data visualization.
Common Integration Scenarios:
- Power plant turbine monitoring systems
- Compressor and pump vibration analysis
- Machinery health diagnostics and alarm displays
- Industrial automation and process control systems
Furthermore, the module’s rugged construction and stable communication capability enhance overall system availability and uptime.
