Product Overview

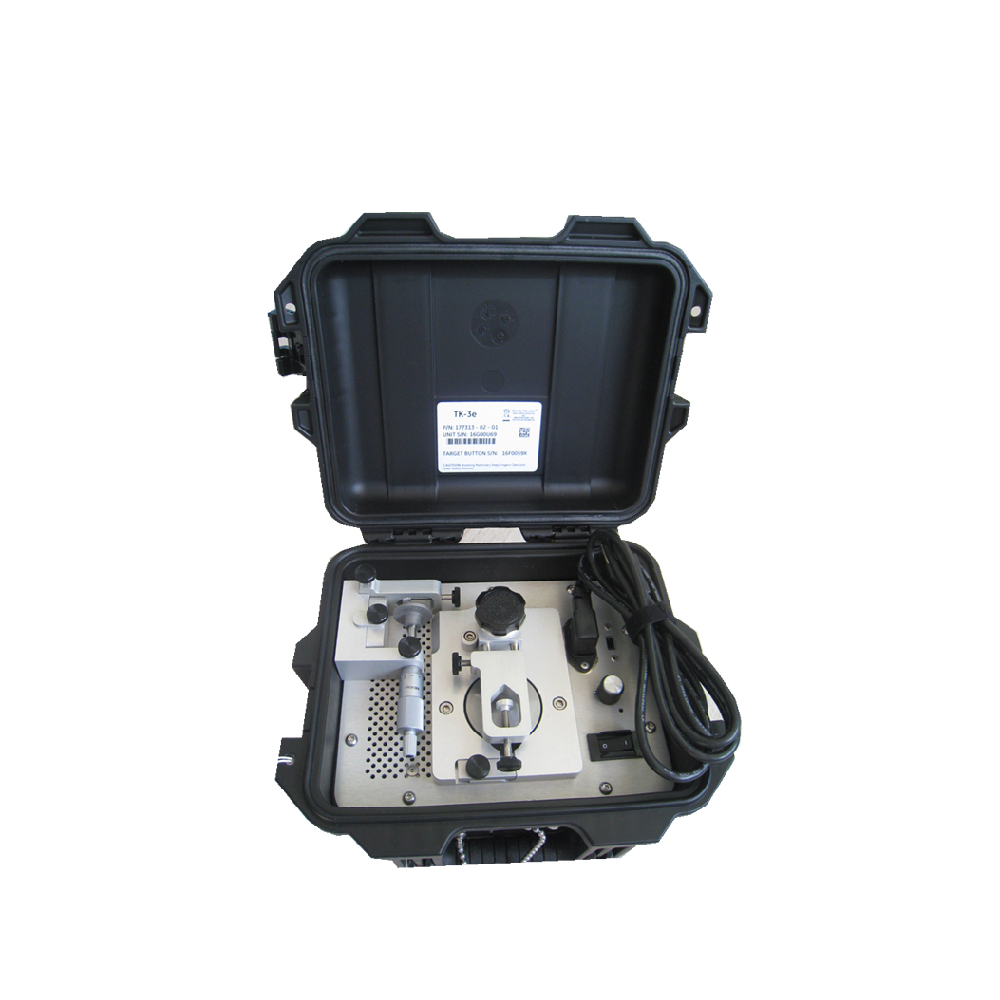

The Bently Nevada 177313-02-02 TK-3e Electric Driven Test Kit provides a complete solution for simulating shaft vibration and position during system calibration.
It enables accurate verification of proximity probes and monitor inputs, ensuring system reliability across all Bently Nevada* vibration monitoring platforms.
Moreover, its compact design and dual-drive options allow engineers to perform both bench and field calibration efficiently.
Key Functional Highlights
- Dual Drive Operation: Supports both electric and air-driven modes for flexible calibration environments.
- Precision Micrometer Assembly: Adjustable spindle supports 5–19 mm probe diameters, enabling highly accurate gap and vibration tests.
- Integrated Wobble Plate: Generates controlled mechanical vibrations from 50 to 254 µm (2–10 mils) peak-to-peak.
- User-Friendly Design: Magnetic base allows quick setup in the field without requiring additional mounting fixtures.
- Safety and Compliance: Fully conforms to IEC/EN61000 and IEC/EN61010-1 standards for EMC and low-voltage safety.
In addition, the TK-3e eliminates the need for oscilloscopes during testing, simplifying vibration calibration and reducing total setup time.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 177313-02-02 |
| Type | Electric Driven Proximity System Test Kit |
| Power Requirements | 95–125 Vac or 190–250 Vac, 50/60 Hz, 1A |
| Air Supply | Maximum 90 psi (6.2 bar) |
| Wobulator Range | 50–254 µm (2–10 mils) peak-to-peak |
| Speed Range | 0–5000 cpm ±1000 cpm |
| Micrometer Range | 0–25.4 mm (0–1000 mils) |
| Target Material | AISI 4140 Alloy Steel |
| Dimensions (H×W×D) | 195 × 299 × 248 mm |
| Weight | 5.22 kg (11.5 lb) |
| Temperature (Operating) | 0 °C to 50 °C (32 °F to 122 °F) |
| Protection Rating | IP54 (closed) |
| Compliance | CE, EMC (EN61000-6-2 / EN61000-6-4) |
System Integration and Applications
The TK-3e Test Kit is essential for Bently Nevada proximity transducer systems calibration in turbines, compressors, and other rotating equipment.
For instance, maintenance teams can validate Proximitor® sensors and ensure monitor readings are within tolerance before startup.
Therefore, it is widely used in power generation, petrochemical, and heavy machinery sectors where precision monitoring is critical.
