Product Overview

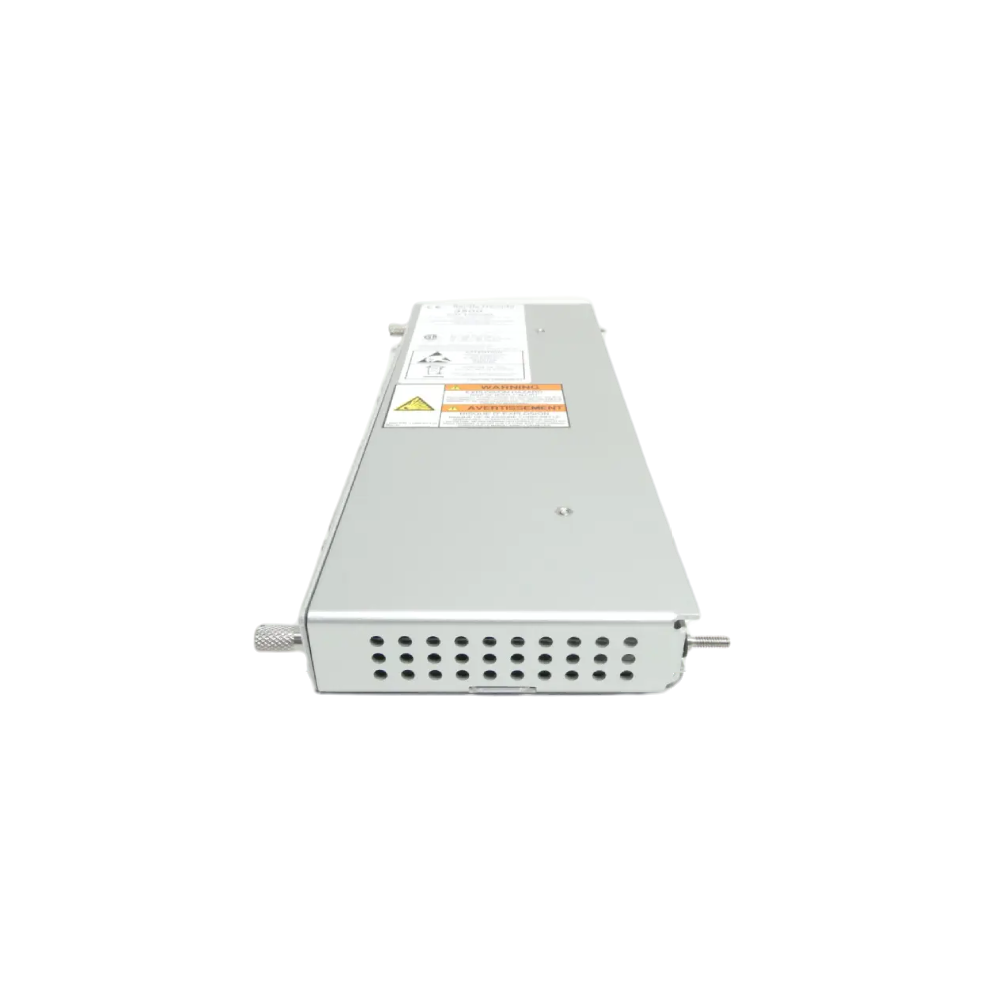

The Bently Nevada 172109-01 is an RTD/Isolated Tip TC I/O Module designed for use with the 3500/65 16-Channel Temperature Monitor. This module connects up to 16 temperature inputs, allowing flexible installation and connection of RTDs (Resistance Temperature Detectors) and thermocouples (TCs). It offers compatibility with a wide range of transducers, ensuring accurate temperature measurements in industrial applications.
Key Specifications
| Specification | Details |
|---|---|
| Input Channels | 1 to 16 RTD or Isolated Tip TC inputs |
| Input Impedance | Greater than 1 MΩ per lead input |
| Power Consumption | 3 watts nominal |
| Transducer Compatibility | Thermocouples (TC): Type E, J, K, T |
| RTDs: 100 Ω, 120 Ω, 10 Ω (3-wire and 4-wire) | |
| Thermocouple Type and Range | Type E: -100 °C to +1000 °C |
| Type J: 0 °C to +760 °C | |
| Type K: 0 °C to +1370 °C | |
| Type T: -160 °C to +400 °C | |
| RTD Type and Range | 100 Ω Platinum RTD (α = 0.00385): -200 °C to +850 °C |
| 100 Ω Platinum RTD (α = 0.00392): -200 °C to +700 °C | |
| 120 Ω Nickel RTD: -80 °C to +260 °C | |
| 10 Ω Copper RTD: -100 °C to +260 °C | |
| Recommended RTD | Platinum RTDs (α = 0.00385) are recommended for all applications. |
Installation & Maintenance Notes
- Before replacing older I/O modules (e.g., 172109-01 Rev D, 172103-01 Rev F, 172115-01 Rev E), upgrade the 3500/65 monitor’s firmware to the latest version.
- If you don’t upgrade the firmware, expect an I/O Module Mismatch and 562 ADC Failure in the System Event List.
Product Features
- Multiple Input Compatibility: Supports RTDs and Thermocouples, offering flexibility for different temperature measurement needs.
- High Impedance: The module ensures high input impedance, reducing signal interference and ensuring measurement accuracy.
- Low Power Consumption: It operates with a nominal power consumption of only 3 watts, making it energy-efficient for continuous operations.
Applications
The Bently Nevada 172109-01 I/O Module is perfect for industrial temperature monitoring applications, such as:
- Power Generation
- Oil & Gas facilities
- Refineries
- Manufacturing plants requiring precise temperature control
FAQ
Q1: What types of thermocouples does the 172109-01 module support?
A1: The module supports Type E, Type J, Type K, and Type T thermocouples, allowing flexibility across industrial applications.
Q2: Is the 172109-01 compatible with all RTDs?
A2: The module works with 100 Ω platinum RTDs (α = 0.00385), 120 Ω nickel RTDs, and 10 Ω copper RTDs, covering a broad temperature range. We recommend 100 Ω platinum RTDs (α = 0.00385) for all applications.
Q3: How do I replace the 172109-01 module?
A3: Before replacing, upgrade the 3500/65 monitor’s firmware to the latest version to avoid compatibility issues and ADC failures.
Q4: How many temperature inputs can the 172109-01 module handle?
A4: The module supports up to 16 temperature inputs, offering flexibility for larger systems.
Details
| Weight | 0.32 kg |
|---|
