Product Overview

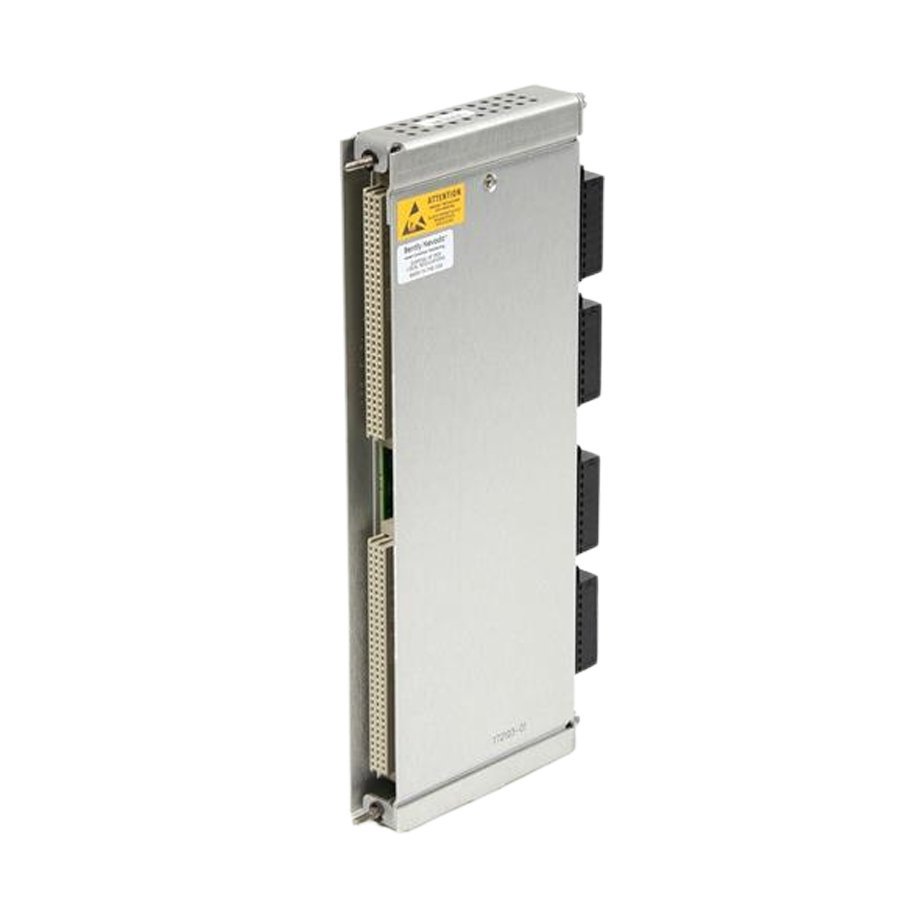

The Bently Nevada 172103-01 3500/65 Temperature Monitoring Module delivers precise temperature monitoring across sixteen channels. Moreover, it supports both isolated tip Thermocouples (TCs) and Resistance Temperature Detectors (RTDs) for flexible deployment. In addition, the module enables integration into Triple Modular Redundant (TMR) systems for high reliability.
Functional Highlights
- Input Flexibility: Accepts isolated tip TCs, 3-wire RTDs, 4-wire RTDs, or combinations of both.
- Alarm Configuration: Programmable Alert and Danger alarms per channel for proactive monitoring.
- TMR Support: Compatible with Triple Modular Redundant setups to ensure continuous operation.
- Integrated Signal Conditioning: Provides high-resolution temperature measurement (1°C / 1°F) without calibration.
- Status Indicators: OK, TX/RX, and Bypass LEDs for real-time module status verification.
Technical Data
| Specification | Details |
|---|---|
| Part Number | 172103-01 |
| Module Type | 3500/65 Temperature Monitoring Module |
| Channels | 16 |
| Transducer Support | Thermocouples (E, J, K, T); RTDs (Platinum, Nickel, Copper) |
| Power Consumption | 3 watts nominal |
| Physical Dimensions | Main: 241.3 x 24.4 x 241.8 mm; I/O: 241.3 x 24.4 x 99.1 mm |
| Weight | Main: 0.91 kg; I/O: 0.45 kg |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
Typical Applications
The 172103-01 module is ideal for monitoring temperature in critical rotating and stationary equipment:
- Industrial turbines, compressors, and pumps
- Power plants and oil & gas facilities
- Manufacturing and process control systems
Therefore, operators can detect temperature anomalies early, improving machinery reliability and plant safety.
