Product Overview

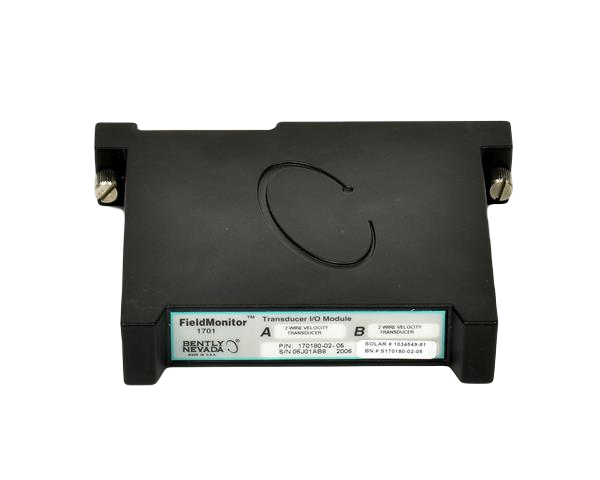

The Bently Nevada 170180-01-05 Transducer I/O Module is an essential component of the FieldMonitor™ system, designed for asset condition monitoring in industrial environments. It facilitates seamless integration with various transducers, including proximity probes and accelerometers, ensuring efficient real-time data acquisition and diagnostics. This module allows for up to two transducer inputs, making it ideal for applications that require high-integrity monitoring.
Key Features
- Versatile Compatibility: Supports proximity probes and vibration sensors (acceleration and velocity), offering broad applications in industrial monitoring.
- Dual Input Channels: Accepts up to two transducer inputs, enhancing flexibility and allowing for synchronized data acquisition from multiple sources.
- Hazardous Area Approval: Configurations like 170180-01-05 are approved for Division 2/Zone 2 for monitors and Division 1/Zone 0/1 for transducers, ensuring safe operation in critical environments.
- Easy Integration: Occupies a single slot in the FieldMonitor terminal base, facilitating simple setup and installation.
Functional Specifications
- Channel A: One Proximitor or Accelerometer (with -24 Vdc supply)
- Channel B: One Proximitor or Accelerometer (with -24 Vdc supply)
Interface Module Specifications
| Module | Specification |
|---|---|
| Proximitor/Accelerometer Interface | Input Voltage Range: 0 to -Vt |
| Output Voltage Range: 0 to -Vt | |
| Frequency Response: -5% at >25 kHz | |
| Current Draw: 2.0 mA max (without transducer) | |
| Current Limit: 33.6 mA min, 37.6 mA max at 25°C (77°F) | |
| 2-Wire Velocity Transducer Module | Input Voltage Range: 0 to -Vt |
| Output Voltage Range: 0 to -Vt | |
| Frequency Response: -5% at >25 kHz | |
| Input Impedance: 9.98 ± 0.02 kΩ | |
| Velomitor Piezo-Velocity Transducer | Nominal Bias Voltage: -12 Vdc |
| Regulated Current: 3.00 to 4.10 mA | |
| Frequency Response: -5% at >25 kHz | |
| -18 V Proximitor Interface | Supply Voltage: -17.75 to -18.24 Vdc |
| Frequency Response: -5% at >25 kHz |
Applications
The Bently Nevada 170180-01-05 Transducer I/O Module is ideal for monitoring asset conditions in various industries, including:
- Oil & Gas Industry
- Power Generation
- Chemical Manufacturing
- Pharmaceutical Production
Ordering Information
| Part Number | Description |
|---|---|
| 170180-01-05 | Dual Proximitor/Accelerometer I/O Module |
| Ordering Options | |
| I/O Module Type | 01: Dual Proximitor/Accelerometer I/O |
| Hazardous Area Approval | 05: Division 2/Zone 2 for Monitor, Division 1/Zone 0/1 for Transducers |
FAQ
Q1: What type of transducers can the 170180-01-05 module support?
A1: This module supports both proximity probes and vibration sensors (acceleration and velocity).
Q2: How many transducer inputs does the module support?
A2: The 170180-01-05 module accepts up to two transducer inputs.
Q3: Is this module suitable for hazardous environments?
A3: Yes, the 170180-01-05 configuration is approved for Division 2/Zone 2 for monitors and Division 1/Zone 0/1 for transducers, making it safe for hazardous areas.
Q4: What industries benefit from using the 170180-01-05 module?
A4: This module is ideal for industries like oil and gas, power generation, chemical manufacturing, and pharmaceutical production.
Q5: What is the return policy for this product?
A5: We offer a 30-day return policy for quality-related issues.
Details
| Weight | 0.277 kg |
|---|
