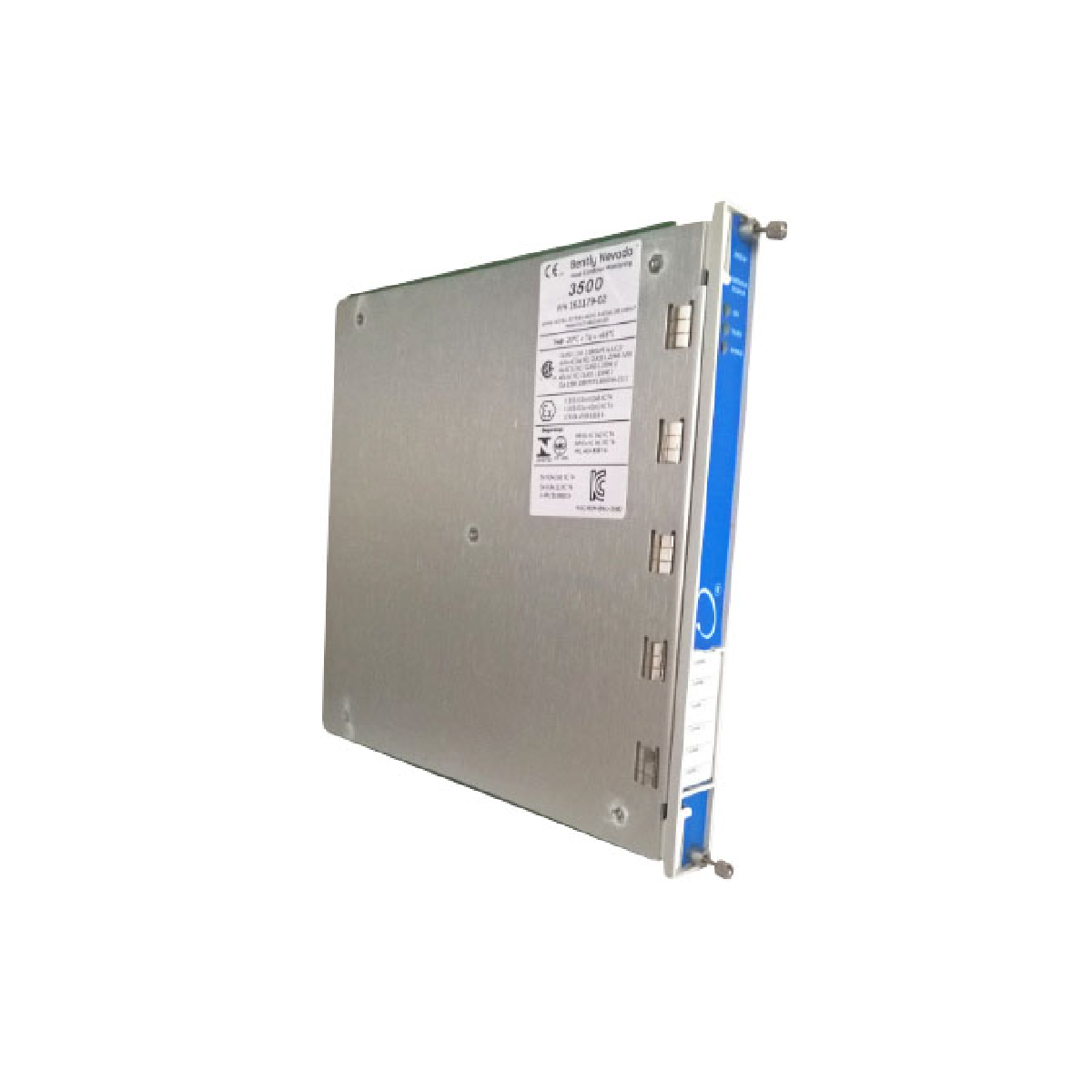

The Bently Nevada 3500/60 module delivers six channels of temperature monitoring, supporting both RTD (Resistance Temperature Detector) and Thermocouple (TC) inputs. It processes signals with high accuracy, compares them against user-programmed alarm setpoints, and ensures precise temperature control in critical machinery protection systems.

Designed for seamless integration into the 3500 Machinery Protection System, the 3500/60 module combines robust engineering with flexible configuration, making it essential for turbomachinery and industrial equipment monitoring.

Key Features of Bently Nevada 3500/60

• Provides six independent temperature monitoring channels
• Accepts RTD and Thermocouple inputs with broad compatibility
• Offers programmable alarm setpoints for high/low temperature conditions
• Consumes 7 watts nominal power, ensuring efficient operation
• Built for reliability in demanding environments with extended temperature ratings

Technical Specifications

Inputs

• Signal Input: 1–6 RTD or TC transducer signals
• Input Impedance: 10 MΩ per lead input
• Power Consumption: 7 W (nominal)

Supported Transducers

Thermocouples (TC)

• Type E: -100°C to +1000°C (-148°F to +1832°F)
• Type J: -18°C to +760°C (0°F to +1400°F)
• Type K: -18°C to +1370°C (0°F to +2498°F)
• Type T: -160°C to +400°C (-256°F to +752°F)

RTDs

• 100Ω Platinum RTD (α = 0.00385), 3-wire & 4-wire
  • Range: -200°C to +850°C (-328°F to +1562°F)
  • With external barriers: -50°C to +850°C (-122°F to +1562°F)
• 100Ω Platinum RTD (α = 0.00392), 3-wire & 4-wire
  • Range: -200°C to +700°C (-328°F to +1292°F)
  • With external barriers: -50°C to +260°C (-122°F to +1292°F)
• 120Ω Nickel RTD, 3-wire & 4-wire
  • Range: -80°C to +260°C (-112°F to +500°F)
  • With external barriers: -50°C to +260°C (-122°F to +500°F)
• 10Ω Copper RTD, 3-wire & 4-wire
  • Range: -100°C to +260°C (-148°F to +500°F)
  • With external barriers: -50°C to +260°C (-122°F to +500°F)
