Overview

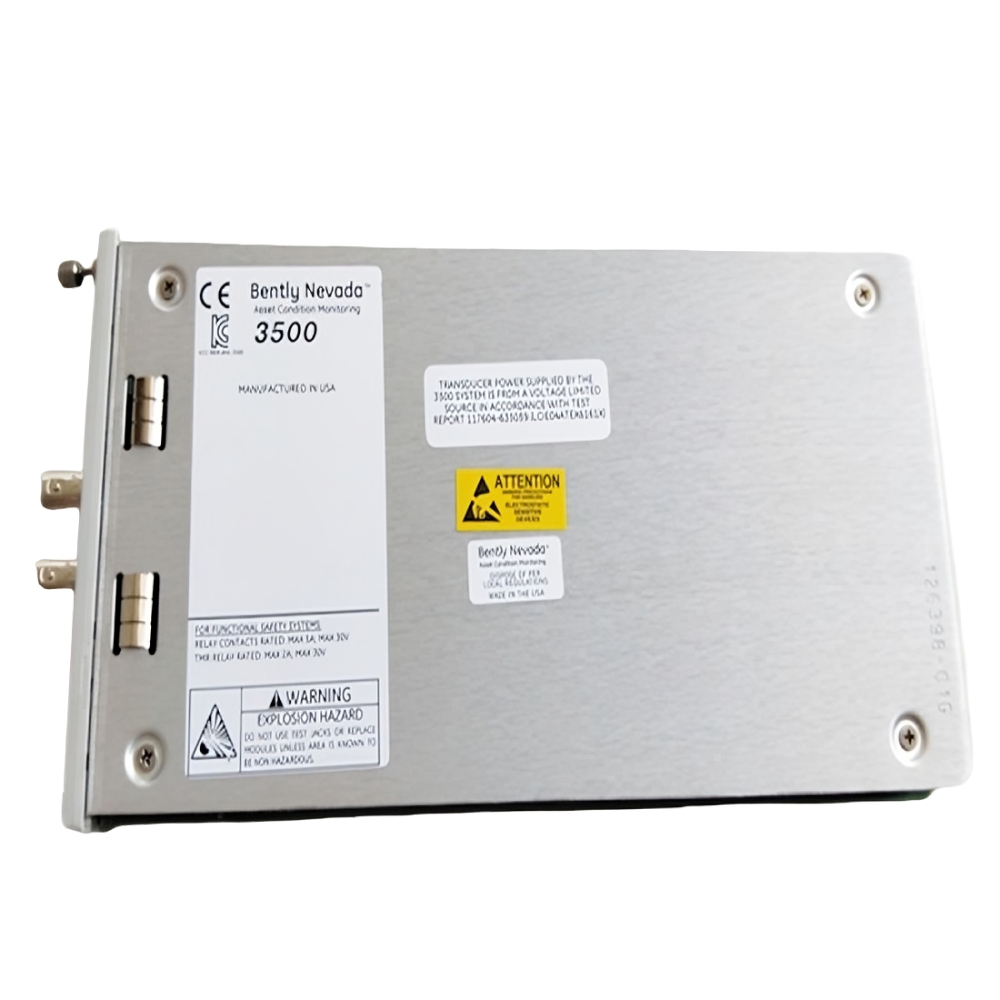

The Bently Nevada 162291-01 3500/33 16-Channel Relay Module is designed to provide reliable relay outputs for industrial control systems. It fits into any slot to the right of the Rack Interface Module, ensuring seamless integration. You can program each output, allowing flexibility in configuring customized voting logic. Additionally, the module includes Alarm Drive Logic, enabling you to use AND and OR logic to process alerts or signals from monitor channels.
If you need a Triple Modular Redundant (TMR) application, you will require the 3500/34 TMR Relay Module. For further information, refer to the Bently Nevada Specification and Ordering Information (part number 141534-01).
Key Features
- The 16 programmable relay outputs make it suitable for various industrial applications.
- Alarm Drive Logic with AND/OR logic for customized input processing.
- Includes OK LED and TX/RX LED to monitor the module’s operational status and communication.
- The relays are single-pole, double-throw (SPDT) with arc suppressors.
- Contact Life lasts up to 100,000 cycles at 5 A, 24 Vdc or 240 Vac.
- The module offers Normally De-energized or Normally Energized relay operations, selectable in four groups of four channels.
Specifications
| Specification | Value |
|---|---|
| Power Consumption | 5.8 Watts (typical) |
| Relays | Single-pole, double-throw (SPDT) |
| Arc Suppressor | Standard 250 Vrms |
| Contact Life | 100,000 cycles at 5 A, 24 Vdc or 240 Vac |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
| Dimensions | 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight | 0.7 kg (1.6 lbs) |
Ordering Information
- Model: 162291-01
- Relay Module Type: 16-Channel Relay Module
- Special Notes: For TMR applications, use the 3500/34 Relay Module.
FAQ
Q: What is the contact life of the 162291-01 relay module?
A: The 162291-01 relay module features a contact life of 100,000 cycles, operating at 5 A, 24 Vdc or 240 Vac.
Q: Can I use this module for Triple Modular Redundant (TMR) applications?
A: For TMR applications, you must use the 3500/34 TMR Relay Module. Check part number 141534-01 for more details.
Q: How fast can I receive the 162291-01 relay module?
A: We typically ship the module within 3-14 days, depending on order size. We commonly use DHL for reliable shipping.
Q: Does the 162291-01 module come with alarm drive logic?
A: Yes, the 162291-01 includes Alarm Drive Logic, which allows you to configure it using AND and OR logic for custom alerts.
