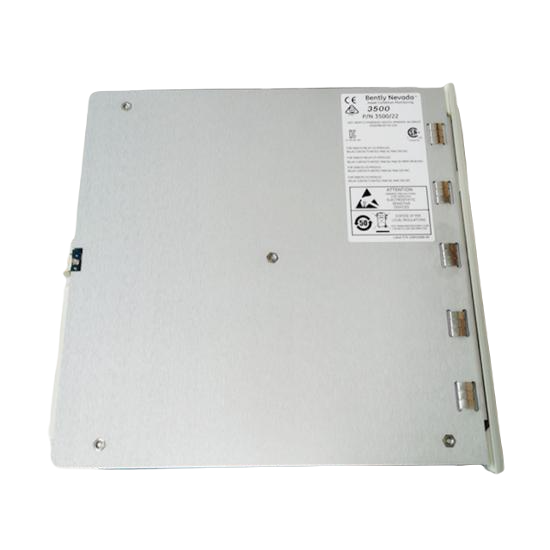

The Bentley Nevada 161204-01 3500/91 EGD Gateway Module delivers fast, reliable Ethernet communication for 3500 Series machinery monitoring systems. Designed for demanding industrial environments, it ensures precise data exchange between rack modules. Its compact size and low power consumption make integration efficient and dependable.
Key Features
- Supports high-speed Ethernet communication at 10-Mbps and 100-Mbps.
- Compliant with EGD Version 2.01, IEEE 802.3, and IEEE 802.3u standards.
- Front panel LEDs indicate module operation and network activity.
- Handles multiple data types including float values and status indicators.
- Compatible with RJ-45 (10BASE-T/100BASE-TX) and MT-RJ (100BASE-FX) connections.
Technical Specifications
| Specification | Details |
|---|---|
| Power Consumption | 7.4 watts typical |
| Data Exchanges | Producer: Rack, Module, Channel, Data Value Status; Consumer: Group Reset, Trip Multiply, Alarm Inhibit |
| LED Indicators | OK, TX/RX for communication status |
| Protocols | EGD v2.01, Ethernet IEEE 802.3 CSMA/CD |
| Ethernet Connection | RJ-45 10/100BASE-TX, MT-RJ 100BASE-FX |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight | 0.79 kg (1.75 lbs) |
Applications
The Bentley Nevada 161204-01 3500/91 module integrates seamlessly into the 3500 Series monitoring system, managing critical data flows and maintaining system reliability. It suits industrial environments requiring precise, high-speed Ethernet communication and robust performance under temperature and humidity extremes.
Details
| Weight | 0.79 kg |
|---|---|
| Dimensions | 241.3 × 24.4 × 99.1 mm |
