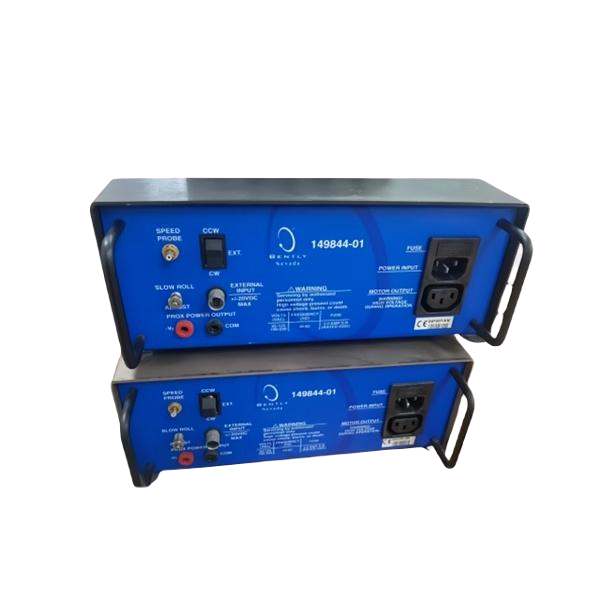

The Bently Nevada 149844-01 is a Rotor Kit Motor Speed Control designed for the RK4 rotor kit. It allows precise motor speed adjustment to simulate rotating machinery behavior.
Users can control clockwise and counterclockwise rotation, perform slow rolls, and adjust speed for training or research purposes. The control system integrates external inputs and provides high voltage motor outputs for realistic simulation.
Key Features
- Compatible with RK4 rotor kit, enabling realistic machinery simulation
- Adjustable motor speed with CW and CCW rotation
- Slow roll functionality for precise training operations
- External input accepts up to ±20 VDC
- Power input supports 95–125 VAC or 190–250 VAC, 45–65 Hz
- Includes 3.0 AMP S.B. fuse rated at 250V for safety
- High voltage warning and proximity power output for simulation accuracy
- Designed for authorized personnel servicing only
Technical Specifications
| Feature | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Product Number | 149844-01 |
| Product Type | Rotor Kit Motor Speed Control |
| Compatible Rotor Kit | RK4 |
| Rotation Control | CW/CCW |
| Slow Roll | Supported |
| Adjustable Speed | Yes |
| External Input | ±20 VDC Max |
| Power Input | 95–125 VAC or 190–250 VAC |
| Frequency | 45–65 Hz |
| Fuse | 3.0 AMP S.B., rated 250V |
| Motor Output | High Voltage Warning Included |
| Proximity Power Output | -V, COM |
| Servicing | Only authorized personnel allowed |
Safety Notes
- High voltage is present and may cause shock, burns, or death
- Only trained and authorized personnel should service the device
- Ensure all connections comply with voltage and input specifications
Details
| Weight | 0.4 kg |
|---|
