Module Overview

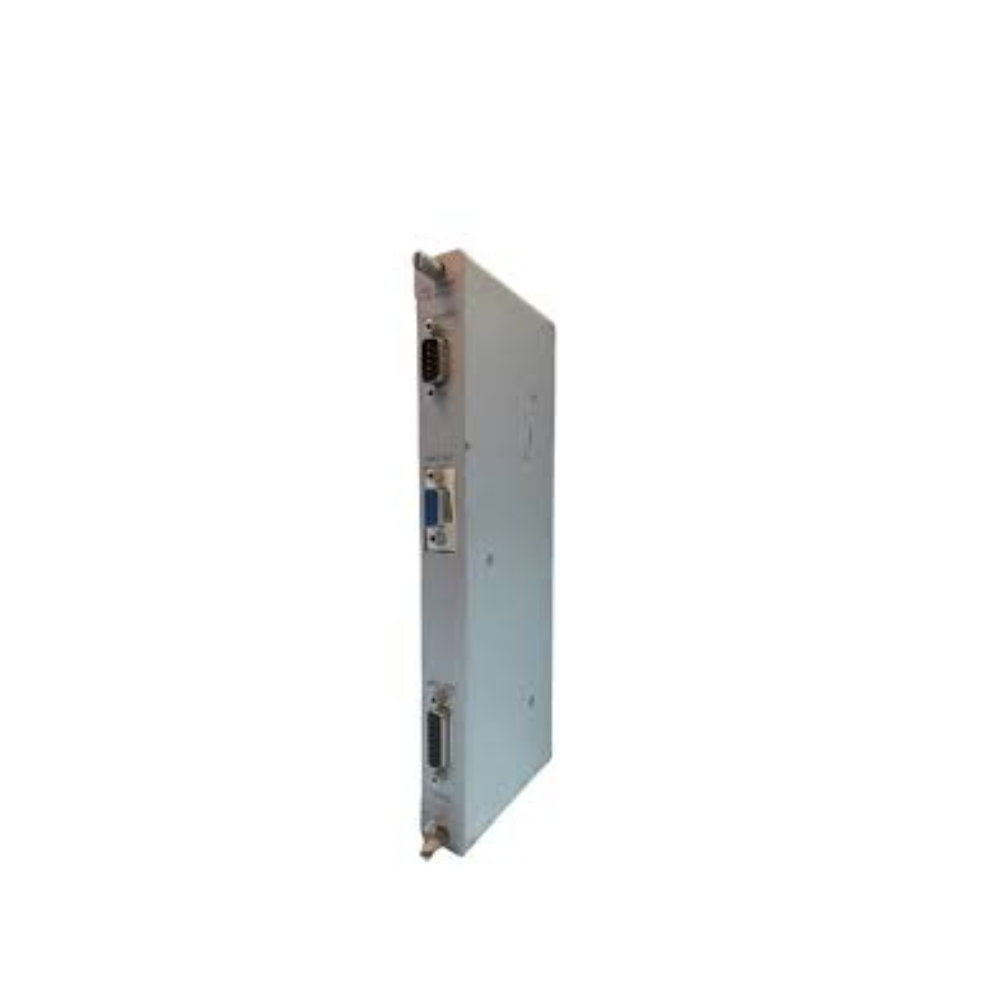

The Bently Nevada 147663-01 VGA Display I/O Module delivers real-time visualization for 3500 Series machinery protection systems. It connects to a standard VGA monitor, enabling interactive display and control through touch-screen operation.
Moreover, operators can access vibration, position, and system data instantly, ensuring precise machinery status awareness. In addition, the VGA monitor can be installed up to 10 meters away using standard cabling, providing flexible control room placement. Consequently, this design supports safer and more efficient field operation.
Functional Highlights
- Touch Screen Interface: Operators interact directly with live machinery data.
- Configurable Setup: Adjust language and display type using 3500 Rack Configuration Software.
- Nine Custom Screens: Display vibration, gap, or grouped machine train data.
- Status LEDs: OK and Bypass indicators ensure clear operational visibility.
- API-670 Format: Offers a “3300-style” bar graph and numeric values per monitor slot.
- Flexible Installation: VGA monitor can be positioned remotely without signal loss.
For instance, technicians can configure dedicated screens for radial vibration or shaft gap analysis, enhancing diagnostic precision. Furthermore, each setting can be modified locally, streamlining maintenance and reducing setup time.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada (GE) |
| Model Number | 147663-01 |
| Series | 3500 Machinery Protection System |
| Type | VGA Display I/O Module (Internal Terminations) |
| Display Type | Color VGA Touch Screen |
| Custom Screens | Up to 9 locally configurable screens |
| Configuration Software | 3500 Rack Configuration Tool |
| Remote Display Distance | Up to 10 meters (33 ft) |
| Indicators | OK and Bypass LEDs |
| Compliance | API-670 compatible format |
| Origin | United States (USA) |
| Availability | In Stock |
Therefore, the 147663-01 module ensures robust visual communication between monitoring equipment and operators, optimizing reliability across all machinery applications.
System Integration & Applications
The Bently Nevada 147663-01 VGA Display I/O Module integrates seamlessly into the 3500 system for industrial condition monitoring. In particular, it suits turbomachinery, compressors, and motor-driven systems where visual feedback is essential.
Common Integration Scenarios:
- Local machine status visualization in control panels.
- Onsite monitoring of vibration and position signals.
- Remote display of rack data up to 10 meters away.
- API-670 compliant plant diagnostics.
Moreover, its intuitive interface reduces operator training time and enhances plant-wide monitoring efficiency. As a result, maintenance teams can identify anomalies quickly and prevent costly downtime.
