Product Overview

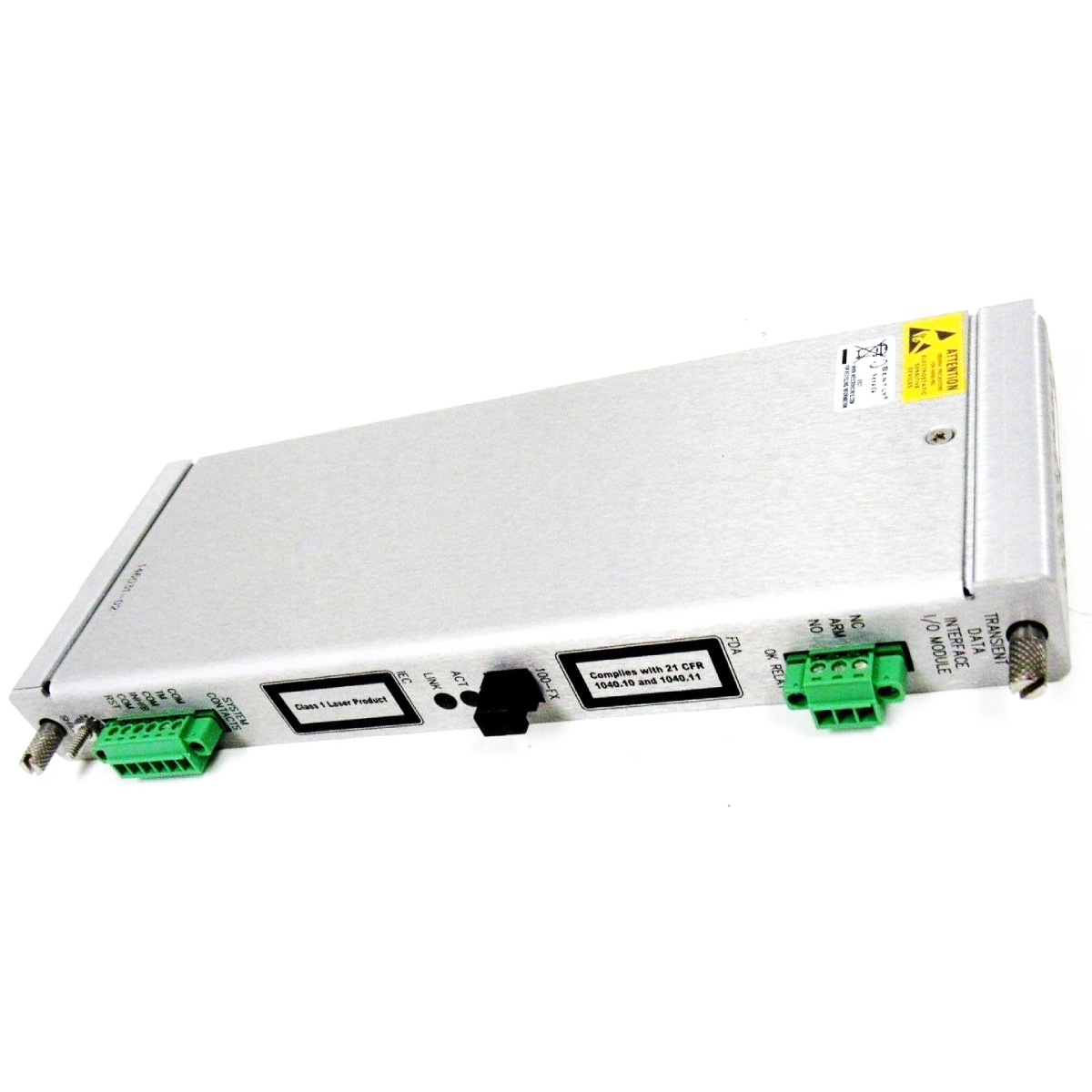

The Bently Nevada 146031-02 100Base-FX Fiber Optic I/O Module provides fast and secure communication between Bently Nevada systems and connected devices. It supports full-duplex multimode fiber Ethernet in compliance with IEEE802.3u standards, ensuring high performance in industrial monitoring environments.
This module enhances system reliability by reducing electrical noise and electromagnetic interference common in plant networks. Moreover, its MT-RJ fiber connection allows easy integration with existing Bently Nevada 3500 systems and compatible BN Host and TDI protocols.
Key Benefits
- High-Speed Data Transmission: Uses 100Base-FX fiber Ethernet for stable, high-bandwidth communication.
- Extended Cable Range: Supports up to 2000 meters (6560 ft) using multimode fiber cabling.
- Enhanced Reliability: Immune to EMI and electrical noise, ensuring accurate data exchange.
- Easy Integration: MT-RJ Male connector fits directly with standard Bently Nevada I/O configurations.
- Long Battery Life: Up to 38 years (powered TDI) at 50°C for long-term dependability.
In addition, the compact module design allows for efficient rack space use and simplifies maintenance in dense control system installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 146031-02 |
| Communication Type | 100Base-FX Fiber Optic Ethernet |
| Protocol Standards | IEEE802.3u |
| Supported Protocols | BN Host, BN TDI (TCP/IP) |
| Connector Type | MT-RJ Male Fiber Optic |
| Max Cable Length | 2000 m (6560 ft) multimode |
| Operating Temperature | -30°C to +65°C (–22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (–40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Battery Life (Powered TDI) | 38 years @ 50°C |
| Battery Life (Unpowered TDI) | 12 years @ 50°C |
| Dimensions (H × W × D) | 241.3 × 24.4 × 99.1 mm (9.50 × 0.96 × 3.90 in) |
| Weight | 0.20 kg (0.44 lb) |
System Integration
The Bently Nevada 146031-02 I/O Module plays a vital role in distributed monitoring systems where high-speed data links are required between multiple 3500 racks or remote interfaces.
For instance, it can bridge connections between a rack and a host computer over fiber optic networks, improving signal integrity across long distances.
Furthermore, the MT-RJ connector ensures seamless connection with MT-RJ Female fiber cables, simplifying field setup and replacement without specialized tools.
Details
| Weight | 0.2 kg |
|---|
