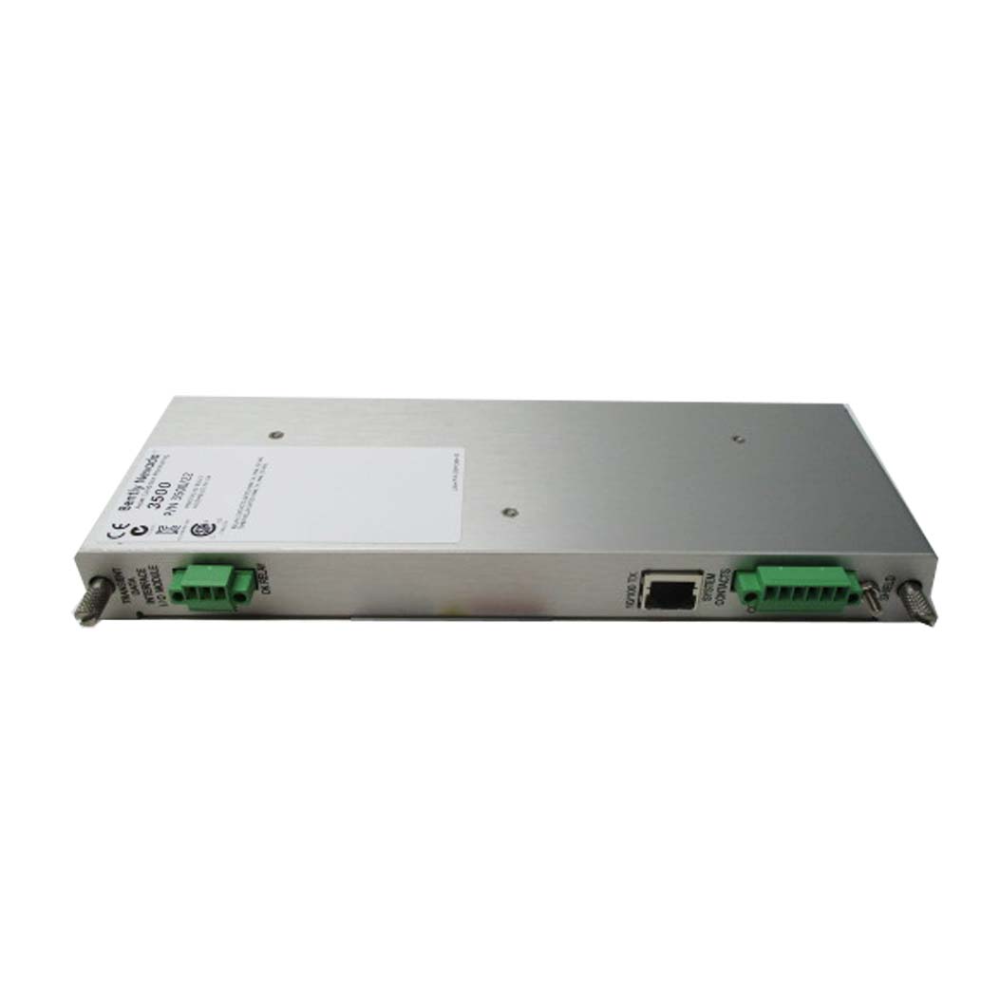

Product Overview
The Bently Nevada 146031-01 I/O Module provides advanced Ethernet connectivity for industrial monitoring systems. Moreover, it supports both 10Base-T and 100Base-TX with autosensing, ensuring seamless communication across critical applications.
In addition, this module integrates essential features such as I/O Module OK relay and trip multiply functionality, simplifying monitoring and fault detection in demanding environments.
Functional Highlights
This I/O module delivers robust operational benefits for industrial Ethernet networks. For instance, the rack reset button enables easy alarm clearing, while user-configurable relay contacts indicate system status.
Key Benefits Include:
- Ethernet Support: 10Base-T / 100Base-TX with autosensing
- I/O Module OK Relay: Configurable contacts for fault monitoring
- Rack Reset Button: Simplifies reset and alarm clearing
- Trip Multiply Function: Enables flexible operation in critical conditions
- Compact Size & Lightweight: Easy integration into existing racks
Therefore, this module enhances reliability and simplifies maintenance of critical industrial systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 146031-01 |
| Ethernet Type | 10Base-T / 100Base-TX (autosensing) |
| I/O Module OK Relay | Configurable “OPEN” / “CLOSED” contacts |
| Rack Reset | Push button for alarm clearing and reset |
| Trip Multiply | Supported |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 99.1 mm |
| Weight | 0.20 kg (0.44 lbs) |
Moreover, its compact form factor allows straightforward installation in standard 3500 series racks.
Typical Applications
The 146031-01 I/O Module is ideal for industrial systems requiring reliable Ethernet communication and rack monitoring. In addition, it supports continuous monitoring for machinery protection systems and integrates seamlessly with other Bently Nevada modules.
Applications Include:
- Critical Machinery Monitoring
- 3500 Series Rack Integration
- Industrial Condition Monitoring Systems
- Fault Detection and Alarm Management
