Product Overview

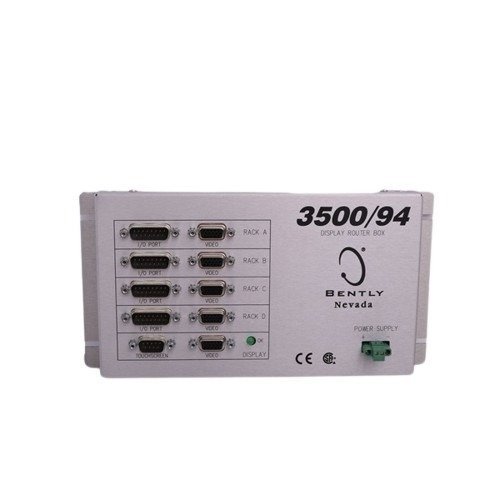

The Bently Nevada 145988-01 3500/94 VGA Display provides high-quality visual output for 3500 monitoring systems. Moreover, it enables real-time monitoring of system status, data values, and alarms, ensuring effective machine diagnostics.
Its compact design fits standard 3500 racks, optimizing space without compromising performance. In addition, the module integrates seamlessly with touch controllers via RS232 I/O, supporting both analog and digital communication.
Functional Highlights
The 3500/94 VGA Display offers robust functionality for industrial monitoring. Furthermore, it enhances operational efficiency by providing clear visual feedback through the VGA output.
Key Benefits:
- Power Consumption: Maximum 4.6 watts for energy-efficient operation.
- Status Indicators: OK LED and TX/RX LEDs display system communication and operation.
- High-Speed Network Support: Monitors data and system parameters effectively.
- RS232 I/O: Connects with touch controller for responsive control input.
- Durable Housing: Operates reliably in harsh environmental conditions.
Therefore, operators gain a clear overview of system performance at a glance.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 145988-01 |
| Display Type | VGA, analog RGB + sync signals |
| Inputs | RS232 Port (touch controller), high-speed network |
| Outputs | OK LED, TX/RX LEDs, VGA output |
| Power Consumption | 4.6 watts max |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Humidity | 95%, non-condensing |
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 241.8 mm |
| Weight | 0.73 kg (1.6 lb) |
In addition, the module occupies a single full-height rear slot in the 3500 rack for optimized installation.
System Integration
The 3500/94 VGA Display integrates with 3500 monitoring racks, touch controllers, and high-speed network systems. For instance, it supports synchronous operation with multiple I/O modules, providing a complete view of system performance.
Consequently, operators can detect abnormalities early and make informed decisions regarding machine operation and maintenance.
