Product Description

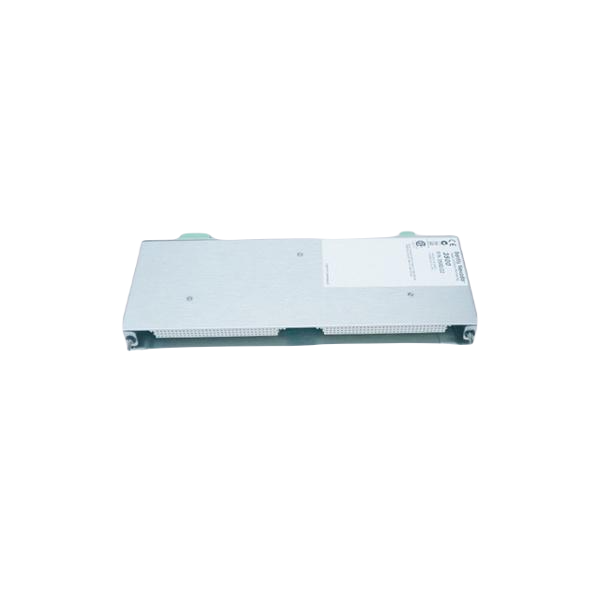

The Bently Nevada 143729-01 Cylinder Pressure I/O Module enables precise measurement and signal conditioning of cylinder pressures. It integrates seamlessly with Bently-approved third-party pressure transducers. Internal terminations simplify installation and ensure fast integration into monitoring systems.
This module accurately measures cylinder, discharge, and suction pressures. It also calculates maximum and minimum pressures, compression ratio, peak rod compression/tension, and degree of rod reversal. The system provides real-time pressure data for predictive maintenance and operational safety.
Technical Specifications
| Specification | Details |
|---|---|
| Frequency Response | 0 to 5.5 kHz for all configured pressure channels |
| Pressure Accuracy | ±0.5% of full-range at +25°C; ±1.0% from –30°C to +65°C |
| Measured Variables | Cylinder Pressure, Discharge Pressure, Suction Pressure, Maximum & Minimum Pressure, Compression Ratio, Peak Rod Compression/Tension, Degree of Rod Reversal |
| Input Impedance | 50 kΩ for Cylinder Pressure I/O |
| Power Consumption | 7.8 Watts at full transducer load |
| Buffered Transducer Outputs | Coaxial connectors, short-circuit protected, inverted and offset (-2.265 Vdc) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | +23.0 ± 0.8 Vdc, 24.5 mA current limit per channel |
| Operating Temperature | -30°C to +65°C (-22°F to 150°F) |
| Dimensions | 241.3 mm × 24.4 mm × 99.1 mm (9.50 in × 0.96 in × 3.90 in) |
| Weight | 0.20 kg (0.44 lb) |
Front Panel Indicators
- OK LED: Confirms proper module operation
- TX/RX LED: Displays communication with other 3500 rack modules
- Bypass LED: Illuminates when module is in Bypass Mode
The Bently Nevada 143729-01 Cylinder Pressure I/O Module delivers high-precision pressure monitoring. Its compact size, low weight, and robust electrical design make it ideal for integration into industrial machinery protection systems.
