Overview

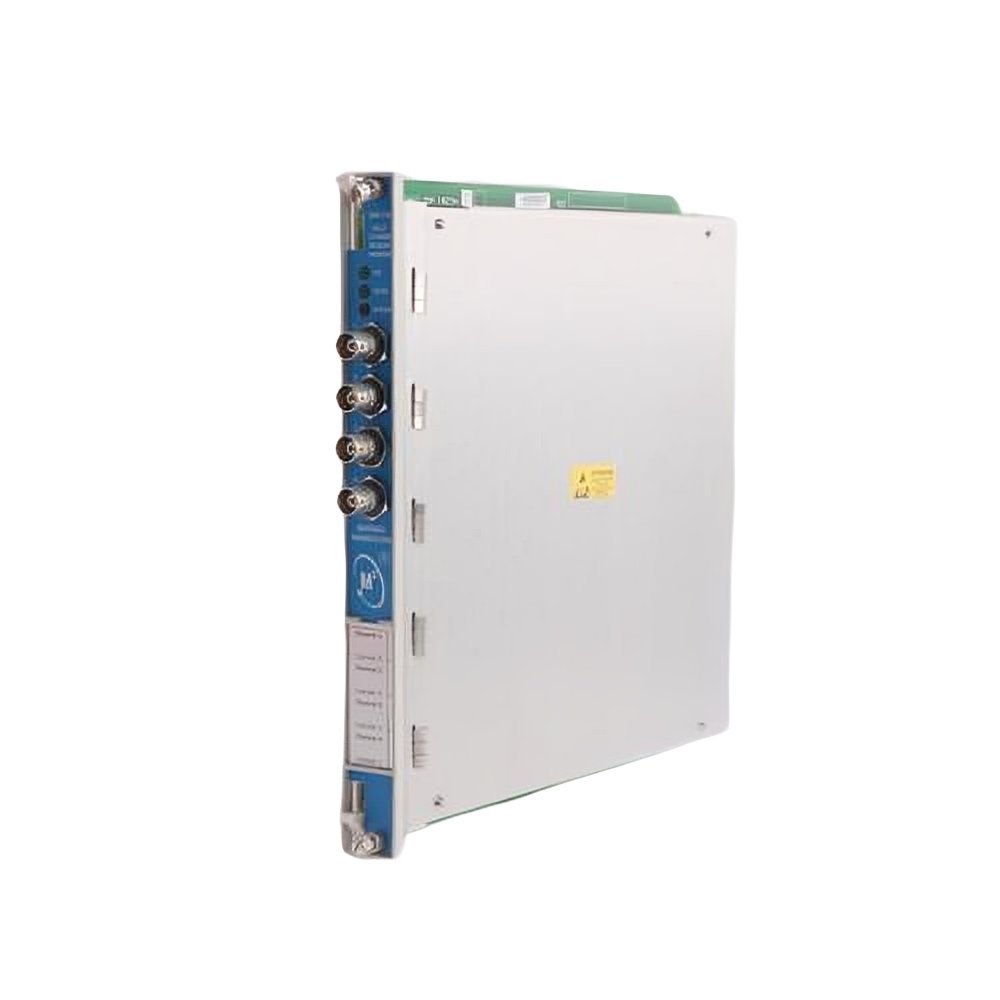

The Bently Nevada 3500/77M Cylinder Pressure Monitor (P/N: 140734-07) is a 4-channel device engineered for high-precision monitoring of reciprocating compressors. It accepts inputs from Bently Nevada-approved pressure transducers and converts them into actionable cylinder pressure measurements. The system enables real-time monitoring, alarm management, and operational insights for maintenance and process optimization.
Key Features
- Monitors cylinder pressures on reciprocating compressors with high accuracy
- Generates eight proportional values (PPLs) per channel for single and combined chamber analysis
- Provides critical operational and safety data for machinery protection
- Configurable alarm thresholds allow early warning for abnormal conditions
- Compact and robust design suitable for industrial environments
Proportional Values (PPLs)
Single Chamber PPLs:
- Discharge Pressure
- Suction Pressure
- Maximum Pressure
- Minimum Pressure
- Compression Ratio
Combined Channel PPLs:
- Peak Rod Compression
- Peak Rod Tension
- Degree of Rod Reversal
Technical Specifications
| Feature | Specification |
|---|---|
| Part Number | 140734-07 |
| Model | 3500/77M |
| Channels | 4 |
| Input Compatibility | Bently Nevada-approved pressure transducers |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
| Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in) |
| Weight | 0.91 kg (2.0 lbs) |
Applications
- Reciprocating compressor monitoring
- Cylinder pressure measurement for mechanical protection systems
- Process optimization and predictive maintenance in industrial machinery
