Product Overview

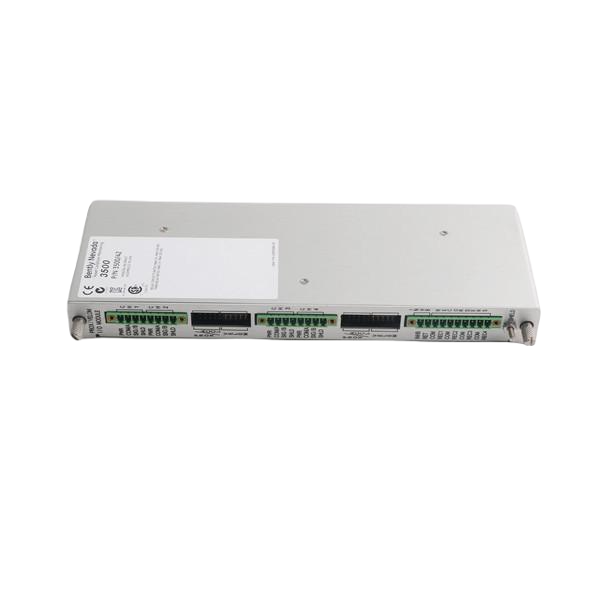

The Bently Nevada 140471-01 Prox/Velom I/O Module is a high-performance interface module designed for vibration and position monitoring systems. It supports Proximitor®, Velomitor®, and Accelerometer transducers, ensuring accurate data transmission within Bently Nevada’s monitoring platforms.
This internal termination version simplifies wiring by integrating all terminations within the module body. Therefore, it eliminates the need for external terminal blocks, reducing installation complexity and space requirements. Moreover, it maintains excellent signal integrity and environmental resilience, making it ideal for harsh industrial applications.
Key Benefits
- Simplified Wiring: Internal terminations allow fast installation and minimal cabling errors.
- High Signal Integrity: Maintains accurate data for Proximitor and Velomitor sensors.
- Compact Construction: At only 0.20 kg, it fits easily in dense rack environments.
- Stable Power Output: Provides 23.9 V, 45.5 mA, and 1.09 W across channels.
- Extended Temperature Range: Operates reliably from -30°C to +65°C, suitable for continuous plant operation.
In addition, the 140471-01 offers consistent impedance characteristics and robust insulation, ensuring safe operation even in high-noise environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Input Impedance | 10 kΩ (Proximitor and acceleration inputs) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 99.1 mm |
| Weight | 0.20 kg (0.44 lb) |
| Output (Prox/Accel) | 23.9 V, 45.5 mA, 1.09 W |
| Output (Velomitor) | 23.9 V, 45.5 mA, 1.09 W |
| Spare Part | 140482-01 (External Termination Version) |
Furthermore, its precision power delivery ensures consistent excitation voltage to sensors, maintaining accurate vibration and position readings under varying load conditions.
System Integration
The Bently Nevada 140471-01 is engineered for seamless integration within 3500 Monitoring Systems. It supports multiple transducer types and can be directly mounted into I/O racks without additional hardware.
For instance, users upgrading from older external-termination setups can easily transition to this internal version to reduce wiring points and enhance signal reliability. In addition, its modular design ensures compatibility with other Bently Nevada I/O and relay modules.
Details
| Weight | 0.2 kg |
|---|
