Product Overview

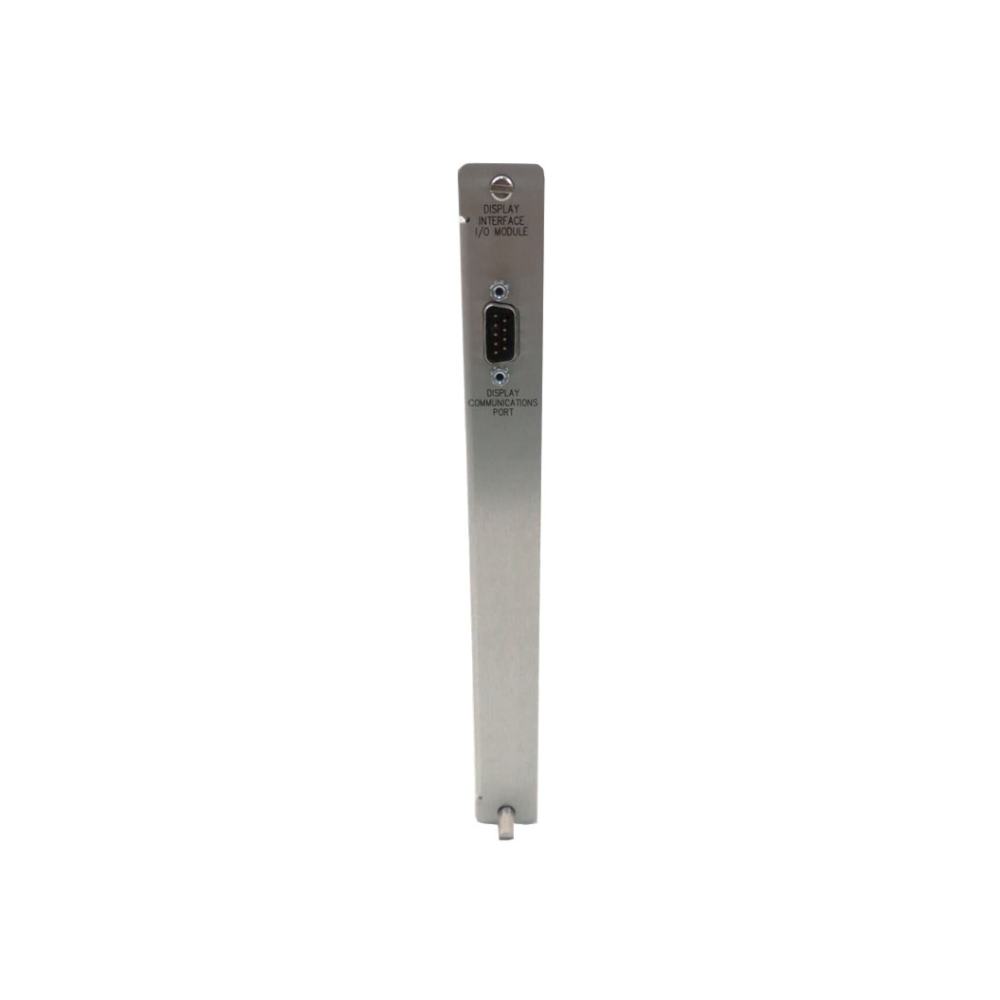

The Bently Nevada 135813-01 Display Interface I/O Module provides a reliable interface between the 3500 rack system and display devices. Moreover, it allows visualization of current values and alarm statuses in real time. In addition, the module supports high-speed data exchange with other modules, ensuring accurate system monitoring.
Key Functional Highlights
- Real-Time Data Collection: Collects current values and alarm status efficiently.
- LED Indicators:
- OK LED: Confirms normal module operation.
- TX/RX LED: Shows communication with other rack modules.
- High-Speed Interface: Ensures timely visualization of critical system information.
- Flexibility: Compatible with multiple display devices and 3500 rack configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 135813-01 |
| Model | 3500/93 |
| Power Consumption | 15.5 W maximum |
| Data Types | Current values and alarm status via high-speed network |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Dimensions (HxWxD) | 241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
| Weight | 0.38 kg (0.84 lb) |
System Integration
The 3500/93 Display Interface Module seamlessly connects data acquisition with display devices. Moreover, it ensures real-time updates of system alarms and measurements. Therefore, operators can respond promptly to abnormal conditions. In addition, this module integrates easily into existing 3500 rack installations, supporting both new and legacy systems.
