Product Overview

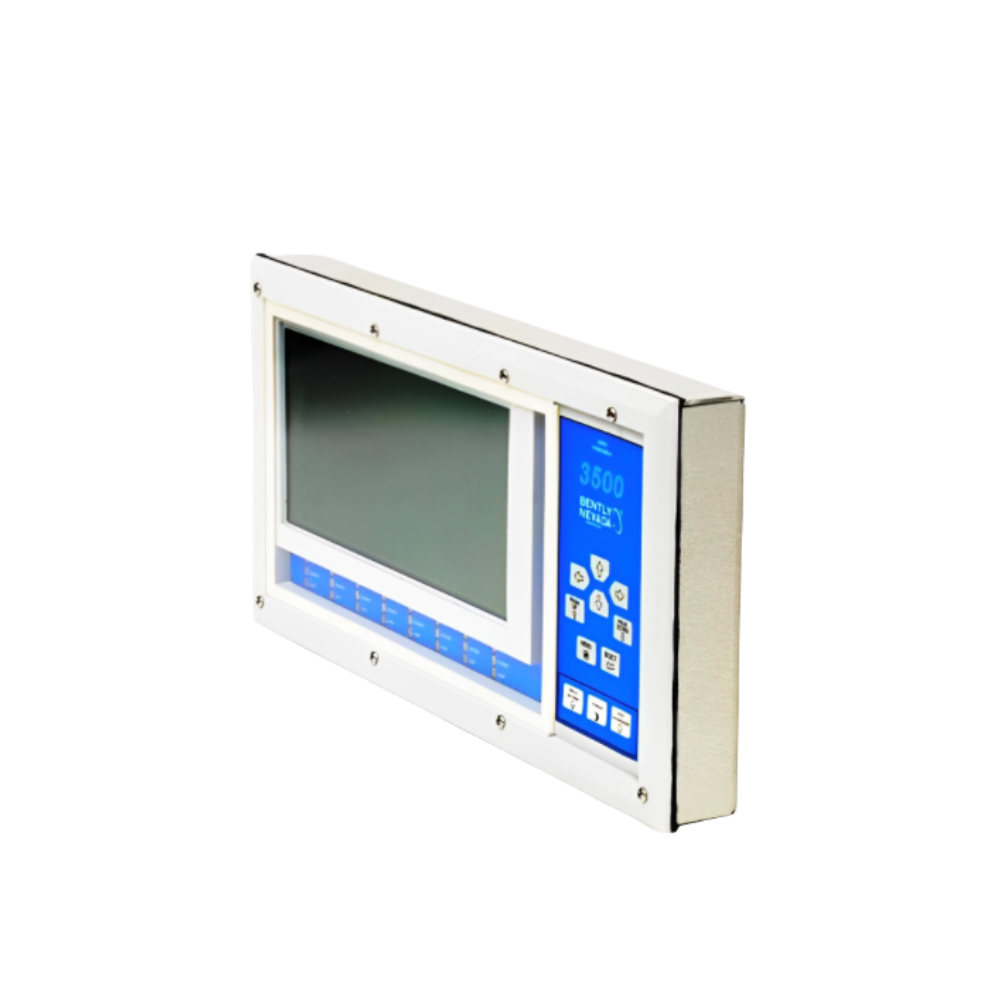

The Bently Nevada 135785-01 3500/93 Display Unit plays a crucial role in the 3500 Machinery Protection System. It provides real-time local or remote visual updates, displaying critical data like event lists, alarm statuses, and channel conditions. Designed to meet API Standard 670, this display ensures consistent monitoring of machinery to prevent damage or downtime.
This display offers versatile mounting options. You can install it in several configurations, including Face Mounting, 19-inch EIA Rack Mounting, Panel Mounting, or Independent Mounting. Each option allows for easy access to the rack’s connectors and user interface, simplifying maintenance and operation.
Key Features
- Comprehensive Display: View system event lists, alarm statuses, and detailed channel data, enabling optimal machinery monitoring.
- Flexible Mounting Options: Install in various configurations, including Face Mounting and 19-inch EIA Rack Mounting.
- Reflective FSTN LCD: The non-backlighted display works best in well-lit conditions, offering clear data visibility in both office and industrial settings.
Specifications
| Feature | Specification |
|---|---|
| Power Consumption | 15.5 watts (max) for Display & DIM |
| Data Types | Collects current values, alarm statuses, and system data via internal network |
| Display | Reflective 640 x 200 Dots LCD |
| Operating Temperature | -20°C to 65°C (-4°F to 149°F) |
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) |
| Dimensions (H x W x D) | 203.2 mm x 412.8 mm x 31.2 mm (8.00 in x 16.25 in x 1.23 in) |
| Weight | 2.1 kg (4.6 lb) |
| Humidity | 95%, non-condensing |
| Mounting | Multiple configurations for flexible installation |
Ordering Information
- Model: 135785-01 – 3500/93 Display Unit (non-backlighted)
FAQ
Q: What display technology does the Bently Nevada 135785-01 use?
A: The 135785-01 3500/93 Display Unit features a reflective FSTN LCD that offers clear visibility in well-lit environments.
Q: How many mounting options are available for the 3500/93 Display Unit?
A: This display offers four mounting options: Face Mounting, 19-inch EIA Rack Mounting, Panel Mounting, and Independent Mounting.
Q: How far can I mount the display from the 3500 System?
A: You can mount the display up to 100 feet from the system. With an external power supply, you can extend this distance to 4000 feet.
Q: What is the return policy if I encounter a quality issue?
A: We offer a 30-day return policy if you encounter any quality issues with the product.
