Overview

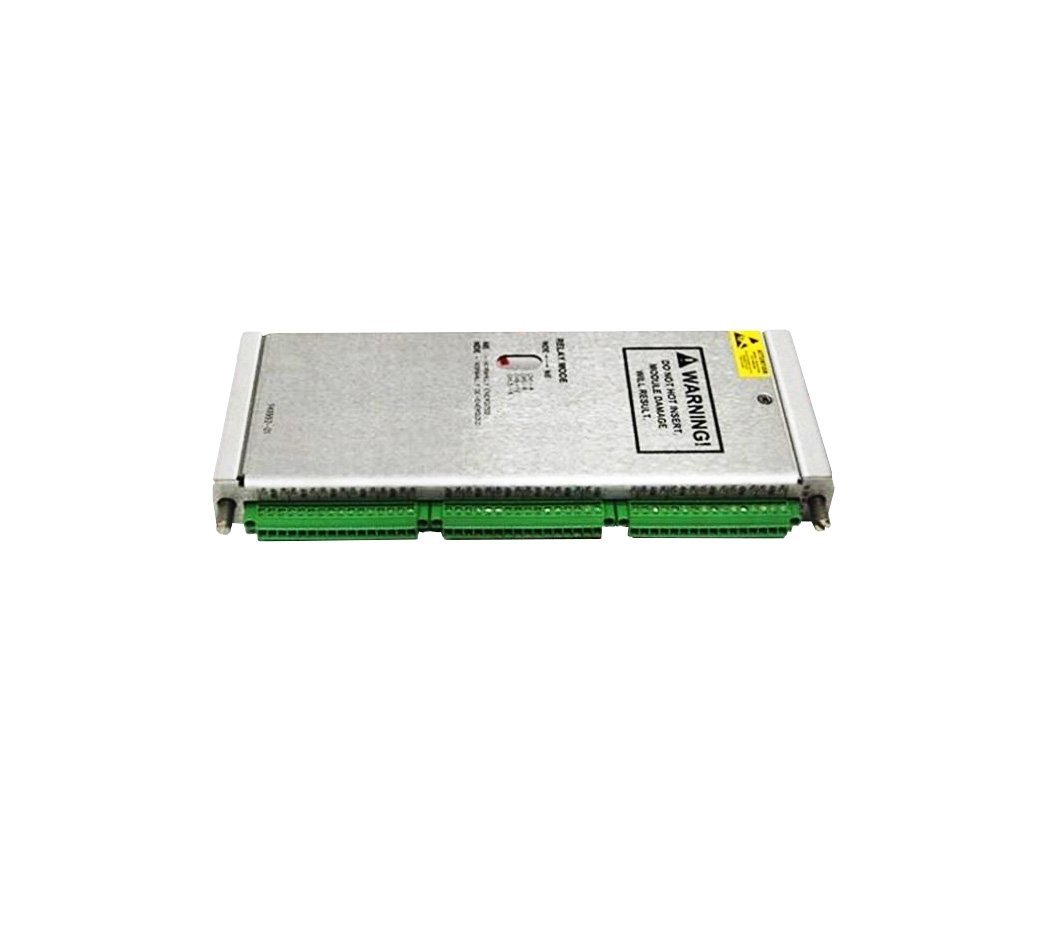

The 133819-01 Non-Isolated I/O Module provides six channels for temperature monitoring in Bently Nevada 3500 Series systems. It supports both Resistance Temperature Detectors (RTDs) and Thermocouples (TCs), delivering reliable, industrial-grade temperature measurements for machinery protection and process monitoring.

Key Features

• Six channels supporting RTD and TC inputs
• Compatible with 3500/60 & /61 Temperature Monitors
• Front panel LEDs: OK, TX/RX, Bypass
• Recorder outputs: +4 to +20 mA proportional to full-scale
• Non-isolated internal terminations
• RTD current source: 925 ±15 µA per transducer
• High-accuracy measurement: ±3°C at 25°C

Supported Sensors

Thermocouples (TCs):

• Type E: -100°C to +1000°C (-148°F to +1832°F)
• Type J: 0°C to +760°C (+32°F to +1400°F)
• Type K: 0°C to +1370°C (+32°F to +2498°F)
• Type T: -160°C to +400°C (-256°F to +752°F)

Resistance Temperature Detectors (RTDs):

• 100Ω 3-wire & 4-wire Platinum (α=0.00385): -200°C to +850°C (-328°F to +1562°F)
• 100Ω 3-wire & 4-wire Platinum (α=0.00392): -200°C to +700°C (-328°F to +1292°F)
• 120Ω 3-wire Nickel: -80°C to +260°C (-112°F to +500°F)
• 10Ω 3-wire Copper: -100°C to +260°C (-148°F to +500°F)
• External barriers extend low-temperature range to -50°C

Technical Specifications

Applications

• Industrial machinery temperature monitoring
• Process control systems requiring precise RTD/TC measurements
• Integration with Bently Nevada 3500/60 & /61 Temperature Monitors
• Recording and alarming in critical industrial environments
