Product Overview

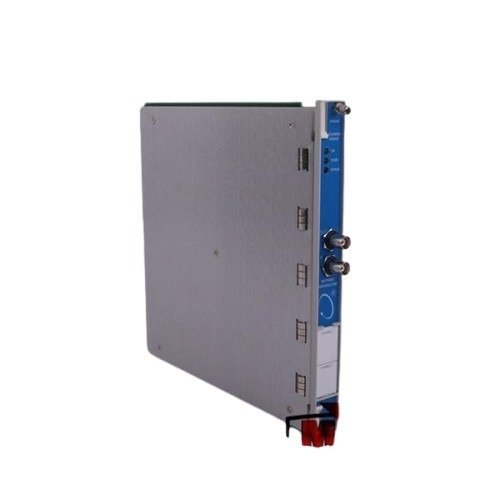

The Bently Nevada 133388-02 3500/50 Tachometer Module continuously measures shaft speed, rotor acceleration, and direction. Moreover, it compares these measurements against user-defined alarm setpoints. In addition, the module generates alarms if any thresholds are exceeded, enabling proactive machinery monitoring. This module supports four configurable operational modes for different monitoring requirements.
Key Functional Highlights
- Configurable Monitoring Options: Includes Speed Monitoring, Setpoint Alarming, Rotor Acceleration Alarming, Reverse Rotation Notification, and Zero Speed Notification.
- Keyphasor Signal Output: Provides conditioned Keyphasor® signals directly to the 3500 backplane, therefore eliminating separate modules.
- Peak Hold Feature: Furthermore, it stores highest speed, highest reverse speed, or reverse rotation counts for user analysis. Values can be reset by operators.
- Application Limitation: Not designed for speed control or overspeed protection systems. For instance, magnetic pickups are unsuitable for reverse rotation monitoring due to low-speed limitations.
Technical Data
| Parameter | Specification |
|---|---|
| Model | 133388-02 |
| Module Type | 3500/50 Tachometer |
| Inputs | 1–2 signals from proximity probes or magnetic pickups |
| Input Signal Range | +10 V to -24 V (internally limited) |
| Input Impedance | 20 kΩ standard; 40 kΩ TMR; 7.15 kΩ Internal Barrier |
| Power Consumption | 5.8 W typical |
| Transducer Power Supply | -24 Vdc, 40 mA max/channel |
| Recorder Output | +4 to +20 mA proportional to RPM |
| Signal Conditioning | 0.0039–255 events per revolution; max 99,999 RPM |
| RPM Accuracy | <100 RPM ±0.1; 100–10,000 RPM ±1; 10,000–99,999 RPM ±0.01% |
| RPM/Min Accuracy | ±20 RPM/min |
| Alarm Setpoints | 0–100% full scale, adjustable per measurement |
| Alarm Time Delays | Alarm 1: 1–60 s; Alarm 2: 1–60 s |
| Operating Temp | -30°C to +65°C (Internal/External Termination) |
| Storage Temp | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.82 kg (1.8 lbs) |
System Integration
The 133388-02 module integrates seamlessly with the 3500 Machinery Protection System, offering real-time rotor speed and direction data.
Moreover, it provides configurable alarm notifications to DCS or SCADA systems.
Therefore, maintenance teams can make informed decisions to prevent equipment damage.
In addition, its Keyphasor® output allows accurate vibration phase and 1X amplitude measurement within the 3500 rack.
