Overview

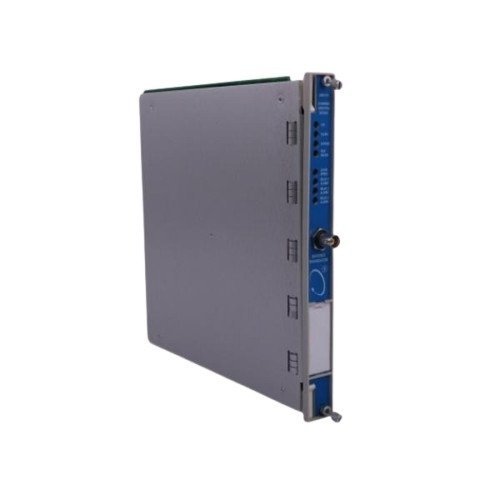

The Bently Nevada 133388-01 3500/53 Overspeed Detection Module provides rapid and accurate overspeed protection for critical industrial machinery. Moreover, it meets API 670 and 612 standards, ensuring reliable operation in high-demand environments. The module integrates seamlessly into 3500 systems with redundant power supplies, enhancing operational safety and uptime.
This module is suitable for both 2-out-of-2 and 2-out-of-3 voting configurations, with the latter recommended for maximum reliability. Its compact form factor allows installation in standard 3500 racks while maintaining easy access for maintenance.
Functional Highlights
- Redundant Operation: Supports dual or triple voting systems for fail-safe overspeed detection.
- High-Speed Response: Detects overspeed conditions rapidly to protect critical machinery.
- Transducer Compatibility: Accepts signals from proximity probes or magnetic pickups, handling +10 V to –24 V input range.
- System Integration: Monitored speed is available through the Communications Gateway Module, while peak speed is displayed for reference.
In addition, this module operates reliably within harsh industrial conditions, tolerating –30 °C to +65 °C and up to 95% non-condensing humidity.
Technical Data
| Parameter | Specification |
|---|---|
| Model / Part Number | 133388-01 |
| Module Type | 3500/53 Overspeed Detection |
| Input Signal | Single transducer (Proximity/Magnetic Pickup) |
| Signal Range | +10 V to –24 V, with internal limiting |
| Speed Values | Monitored speed (alarms), peak speed (display only) |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 95%, non-condensing |
| Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.82 kg |
| Rack Requirement | 3500 rack with redundant power supplies |
| Firmware/Software Minimums | 3500/20 Rev G, 3500/01 v2.00, 3500/02 v2.03, 3500/03 v1.13 |
Typical Applications and System Integration
The 3500/53 Overspeed Detection Module is ideal for critical machinery where overspeed events must be detected instantly.
- Turbines, compressors, and high-speed motors
- Integration with Bently Nevada 3500 monitoring systems
- Redundant power supply configurations for continuous uptime
- API-compliant machinery protection in hazardous or industrial environments
For instance, connecting the 133388-01 module to a 3500 system ensures fail-safe overspeed monitoring, maintaining operational safety.
Details
| Weight | 0.82 kg |
|---|
