Product Overview

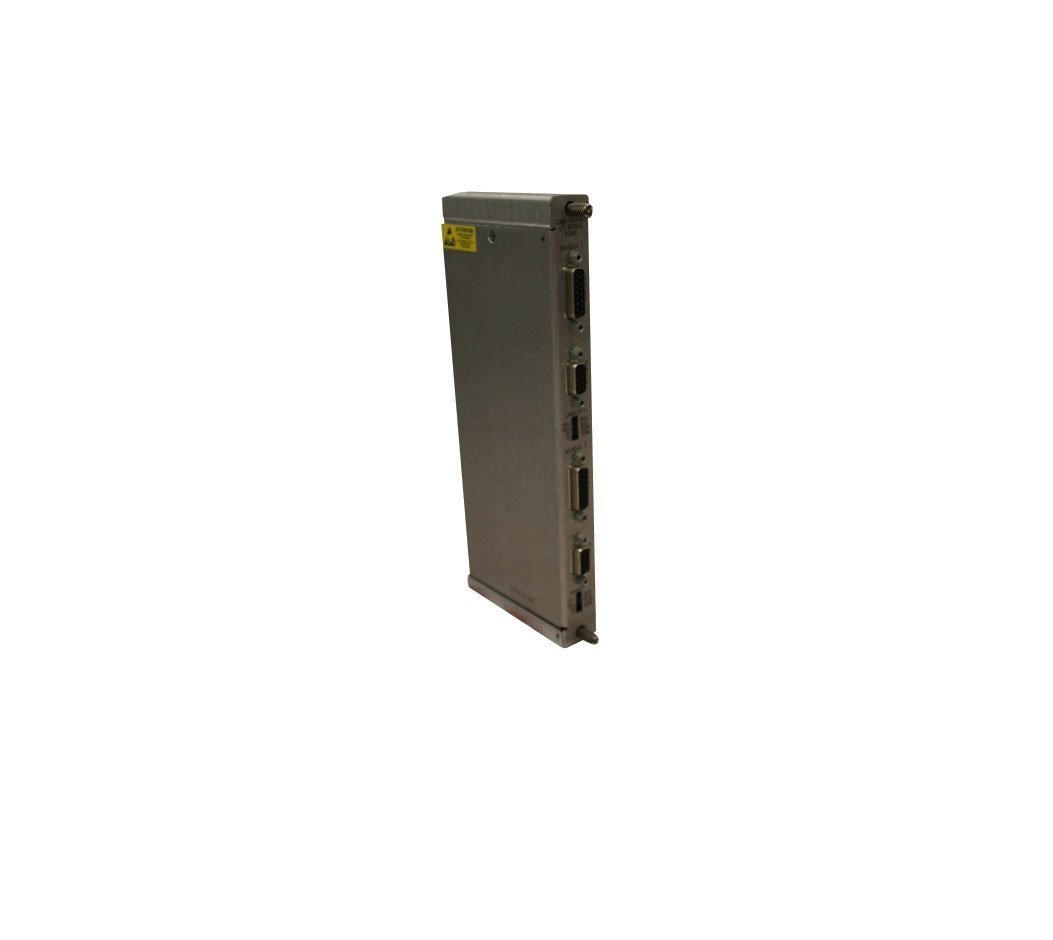

The Bently Nevada 133323-01 Modbus RS485 I/O Module enhances the 3500/92 Communication Gateway by enabling robust Modbus RS485 connectivity. Moreover, it allows seamless interaction with external industrial automation devices. In addition, the module ensures efficient data collection and transmission from multiple 3500 rack modules. Therefore, plant operators can integrate critical equipment monitoring with minimal effort.
Key Functional Highlights
- Reliable Data Collection: Captures measured values, timestamps, module statuses, and alarm information from connected modules. Furthermore, update rates remain under 1 second for all rack modules.
- Communication Protocol Support: Supports BN Host Protocol, Modbus RTU, and Modbus/TCP over Ethernet TCP/IP. In addition, the module uses RJ-45 connection for 10BASE-T Ethernet cabling.
- Status Indicators: Includes OK LED for proper operation, TX/RX LED for communication status, and channel monitoring LED indicators. Moreover, operators gain immediate visual feedback for system integrity.
Technical Data
| Specification | Details |
|---|---|
| Model | 133323-01 |
| Module Type | 3500/92 Modbus RS485 I/O |
| Power Consumption | 5.6 W typical |
| Data Update Rate | ≤1 second for all rack modules |
| Communication Protocols | BN Host, Modbus RTU, Modbus/TCP |
| Ethernet Link | 10 Mbps, IEEE 802.3 compliant |
| Connection Type | RJ-45 (telephone jack style) |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Main Board Dimensions | 241 x 24.4 x 242 mm (H x W x D) |
| Main Board Weight | 0.82 kg (1.8 lb) |
| I/O Module Dimensions | 241 x 24.4 x 99.1 mm |
| I/O Module Weight | 0.44 kg (0.96 lb) |
System Integration
The 133323-01 module integrates efficiently with the 3500/92 Communication Gateway. For instance, it enables seamless monitoring and control via Modbus RS485 networks. Moreover, it supports integration with various industrial automation systems, improving operational efficiency. In addition, the module allows synchronized data collection across multiple rack modules, enhancing real-time monitoring capabilities.
