Product Description

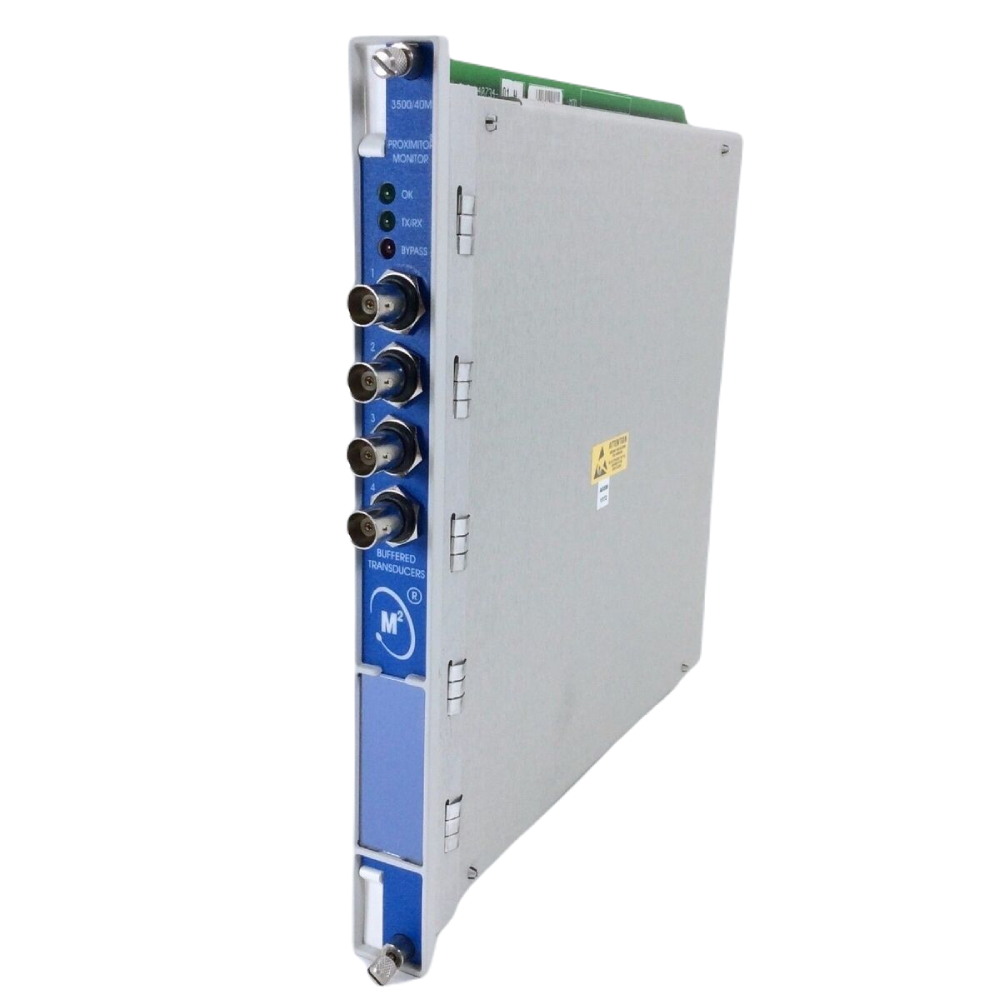

The Bently Nevada 128275-01E Future Expansion Faceplate is designed for use with the 3500/40M Proximitor Monitor system. It enables advanced vibration and position monitoring through proximity transducer inputs. Each of its four channels can be configured to measure radial vibration, thrust position, differential expansion, or other critical machine parameters. Moreover, using the 3500 Rack Configuration Software, users can fine-tune each channel’s functionality and alarm thresholds for precision performance.
This module ensures flexible setup and consistent data acquisition, making it an essential part of Bently Nevada’s machinery protection ecosystem.
Functional Highlights
- 4 Independent Channels: Each channel supports one proximity probe input.
- Configurable Measurements: Supports functions such as radial vibration, thrust, eccentricity, and REBAM.
- Programmable Alarms: Individual alert and danger setpoints per static value.
- Flexible Software Integration: Compatible with 3500 Rack Configuration Software for custom setup.
- Reliable Operation: Designed for use in continuous monitoring environments.
In addition, the 128275-01E faceplate ensures efficient signal conditioning, translating raw transducer data into actionable vibration and position values.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | GE / Bently Nevada |
| Model Number | 128275-01E |
| Product Family | 3500/40M Series |
| Compatible Models | 176449-01, 143488-01 |
| Input Type | Proximity Transducer Inputs (4 Channels) |
| Output Type | Conditioned static value signals |
| Alarm Configuration | User-programmable alert and danger setpoints |
| Software Compatibility | 3500 Rack Configuration Software |
| Function Modes | Radial Vibration, Thrust, Differential Expansion, Eccentricity, REBAM |
| Construction | Durable faceplate design for field replacement |
| Mounting | Compatible with 3500 rack modular system |
Therefore, it provides both hardware stability and software flexibility, ensuring reliable measurement accuracy across diverse monitoring setups.
System Integration Applications
The 128275-01E Future Expansion Faceplate integrates smoothly within Bently Nevada 3500 systems used for rotating machinery diagnostics and predictive maintenance.
Common Applications:
- Steam and gas turbine vibration analysis.
- Compressor and motor position tracking.
- Shaft eccentricity and thrust displacement monitoring.
- Continuous plant condition monitoring networks.
Moreover, its seamless integration helps reduce maintenance costs and enhances machinery uptime in process industries, refineries, and power generation plants.
