Product Overview

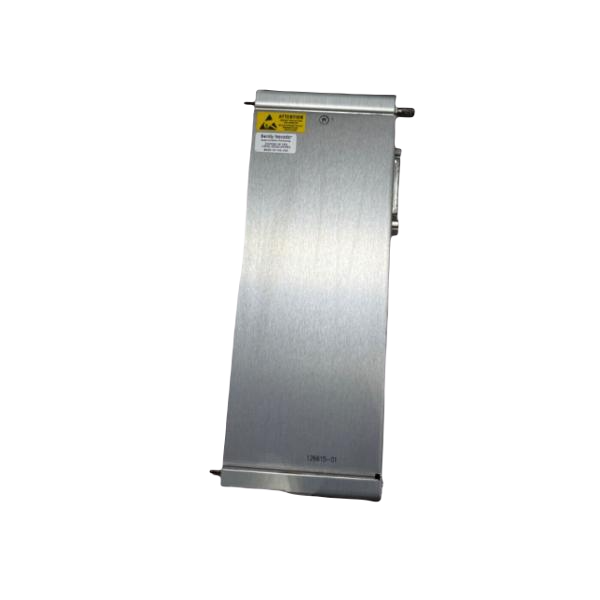

The Bently Nevada 126615-01 Proximitor I/O Module with External Terminations provides a reliable interface for the 3500/40M Proximitor Monitor system. It supports proximity transducer signals and delivers accurate connectivity between sensors, actuators, and monitoring systems. With its external termination design, it simplifies installation and maintenance for industrial environments requiring high precision.
Key Features
- Accepts 1 to 4 proximity transducer signals with 10 kΩ input impedance
- Operates efficiently with typical 7.7 W power consumption
- Wide operating temperature range of -30°C to +65°C
- Compatible with external termination blocks and cables (ordered separately)
- Lightweight, compact module for flexible installation in control cabinets
- Requires minimum firmware/software versions for seamless integration
Technical Specifications
| Attribute | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500/40M Proximitor Monitor |
| Part Number | 126615-01 |
| Inputs | 1–4 proximity transducer signals |
| Input Impedance | 10 kΩ |
| Power Consumption | 7.7 W (typical) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
| Dimensions (H x W x D) | 241.3 × 24.4 × 99.1 mm (9.50 × 0.96 × 3.90 in) |
| Weight | 0.20 kg (0.44 lb) |
| Firmware Requirements | 3500/01 v2.50, 3500/02 v2.20, 3500/03 v1.21 or later |
| Compatibility | Requires external termination blocks and cables (separate) |
Usage Notes
For best results, order external termination blocks and cables along with the 126615-01. This module does not support internal termination blocks, so careful planning is essential for proper integration. Always check firmware versions before deployment to guarantee system compatibility.
Applications
The Bently Nevada 126615-01 is ideal for industrial vibration monitoring and machinery protection. It provides dependable sensor-to-monitor connectivity in demanding environments, ensuring precise data collection and long-term reliability.
FAQ
Q1: Does the 126615-01 support both internal and external termination blocks?
No, this module only works with external termination blocks and cables, which must be ordered separately.
Q2: What firmware versions are required for the 126615-01?
It requires 3500/01 software v2.50, 3500/02 v2.20, and 3500/03 v1.21 or later.
Q3: How compact is the module for panel installation?
The 126615-01 measures 241.3 × 24.4 × 99.1 mm and weighs only 0.20 kg, making it easy to install.
Q4: How quickly can I receive this module after ordering?
We keep the 126615-01 in stock. Orders typically ship within 3 days to 2 weeks, depending on quantity.
Q5: What if I encounter quality issues after receiving the module?
We support a 30-day return policy for any quality-related issues, ensuring customer satisfaction.
Details
| Weight | 0.2 kg |
|---|
