Overview

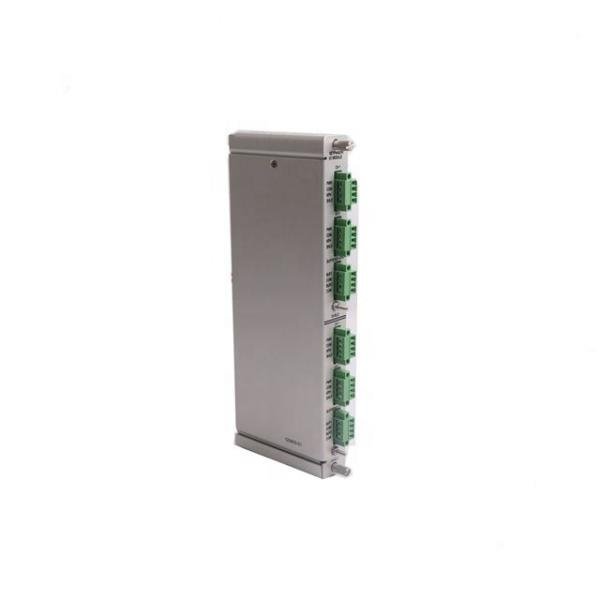

The 125800-02 Isolated Keyphasor I/O Module from Bently Nevada isolates Keyphasor signals, preventing interference with control systems. It primarily supports magnetic pickup applications, and also works with Proximitor systems when supplied with external power. This ensures reliable signal integrity in complex monitoring setups.
Key Features
- Signal Isolation: Separates Keyphasor signals to protect connected devices from electrical interference.
- Magnetic Pickup Compatible: Optimized for magnetic pickups and supports Proximitor applications with external power.
- Input Range Protection: Accepts +5V to -11V signals and internally limits out-of-range inputs to safeguard circuitry.
- Minimum Rotational Speed: Passive magnetic pickups require shaft speeds above 200 rpm (3.3 Hz).
Technical Specifications – Inputs
| Parameter | Specification |
|---|---|
| Input Type | Magnetic pickup or Proximitor transducer signals |
| Input Range | +5V to -11V (internally limited outside this range) |
| Input Impedance | ≥21.8 kΩ |
| Power Consumption | 3.2 Watts typical |
| Minimum Rotational Speed | 200 rpm (3.3 Hz) for passive magnetic pickups |
Environmental Limits
| Parameter | Specification |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) with standard Keyphasor I/O 0°C to +65°C (32°F to +150°F) with Internal Barrier version |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
Physical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 241.3 mm x 24.4 mm x 103.1 mm (9.50 in x 0.96 in x 4.06 in) |
| Weight | 0.46 kg (1.01 lbs) |
FAQ
Q1: Is the Bently Nevada 125800-02 brand new and original?
A1: Yes, the 125800-02 is fully original and brand new, ready for industrial use.
Q2: Can this module protect my control system from electrical interference?
A2: Yes, it isolates Keyphasor signals, preventing interference with other connected systems.
Q3: Does it work with Proximitor sensors?
A3: Yes, it supports Proximitor applications when supplied with external power.
Q4: What are the shipping options?
A4: We ship via DHL and other carriers, with delivery times from 3 days to 2 weeks.
Q5: What if the module has a quality issue?
A5: Returns are supported within 30 days for any quality problems.
Details
| Weight | 0.46 kg |
|---|
