Module Overview

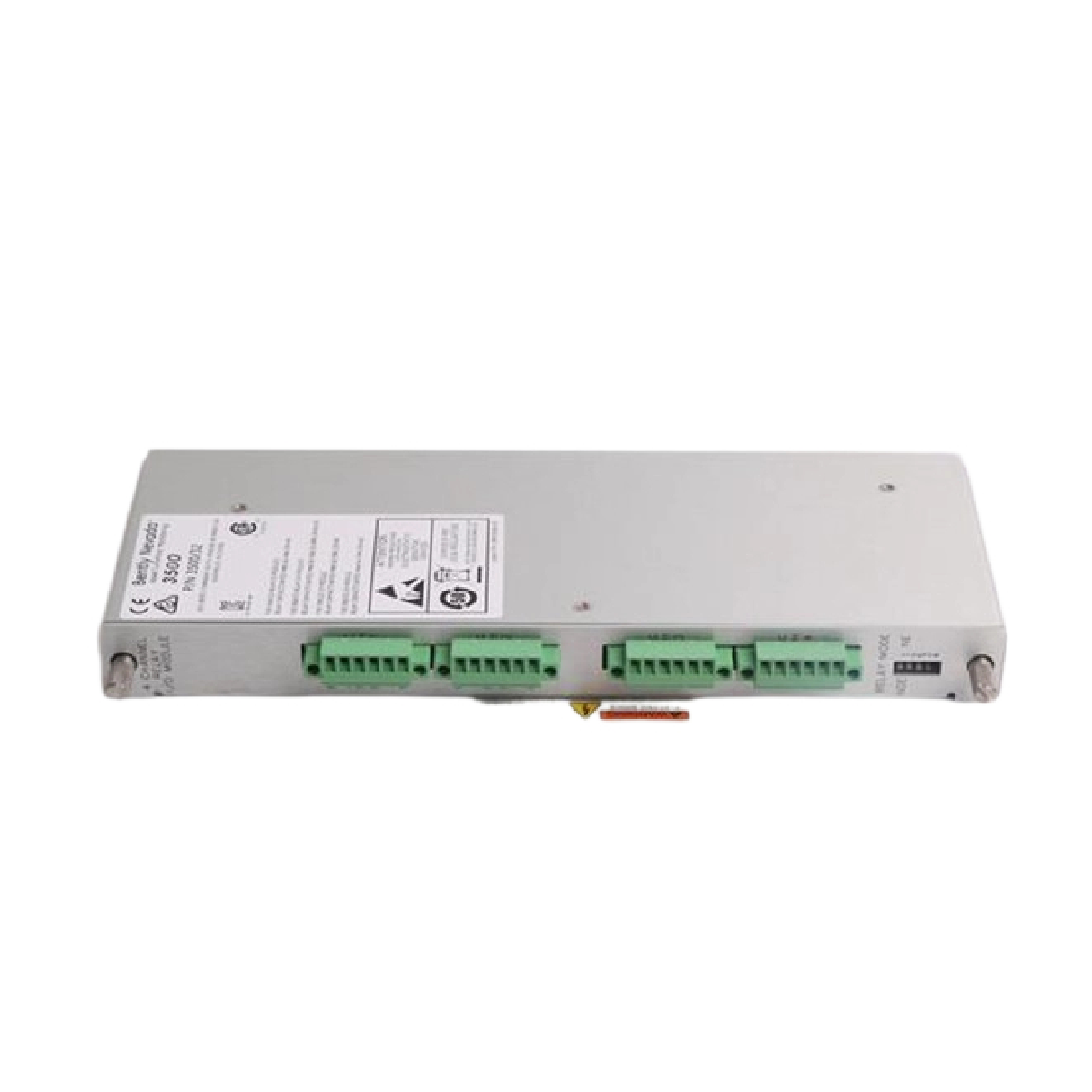

The Bently Nevada 125720-02 4-Channel Relay Output Module expands the 3500 monitoring system. Moreover, it allows multiple programmable outputs, enabling flexible alarm and voting logic configurations. In addition, technicians can install these relay modules in any slot adjacent to the Transient Data Interface Module, simplifying system expansion.
Functional Highlights
- Individual Programming: Each relay channel performs independent AND/OR alarm logic according to user settings.
- Alarm Integration: The module accepts alert, danger, Not-OK, and PPL signals from any monitor channel.
- Reliable Operation: Epoxy sealing protects relays, ensuring robust operation in harsh industrial environments.
- Arc Suppression: Standard 250 Vrms arc suppressors protect contacts during high-current switching.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 125720-02 |
| Relay Type | Single-Pole Double-Throw (SPDT) |
| Contact Life | 100,000 cycles at 5 A, 24 Vdc or 240 Vac |
| Operating Temp | -30°C to +65°C (-22°F to +150°F) |
| Storage Temp | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Module Dimensions | 241 x 24.4 x 242 mm (9.50 x 0.96 x 9.52 in.) |
| Weight | 0.7 kg (1.6 lb) |
| Minimum Switched Current | 100 mA at 12 Vdc (Standard & Hazardous Area Systems) |
System Integration & Applications
- Industrial Systems: The module enhances Bently Nevada 3500 racks for critical machinery monitoring.
- Programmable Logic: Users configure custom voting logic to ensure precise alarm responses.
- Hazardous Areas: The device supports functional safety and hazardous area installations without compromise.
- Rack Expansion: Technicians install multiple modules in available slots to scale monitoring solutions efficiently.
