Overview

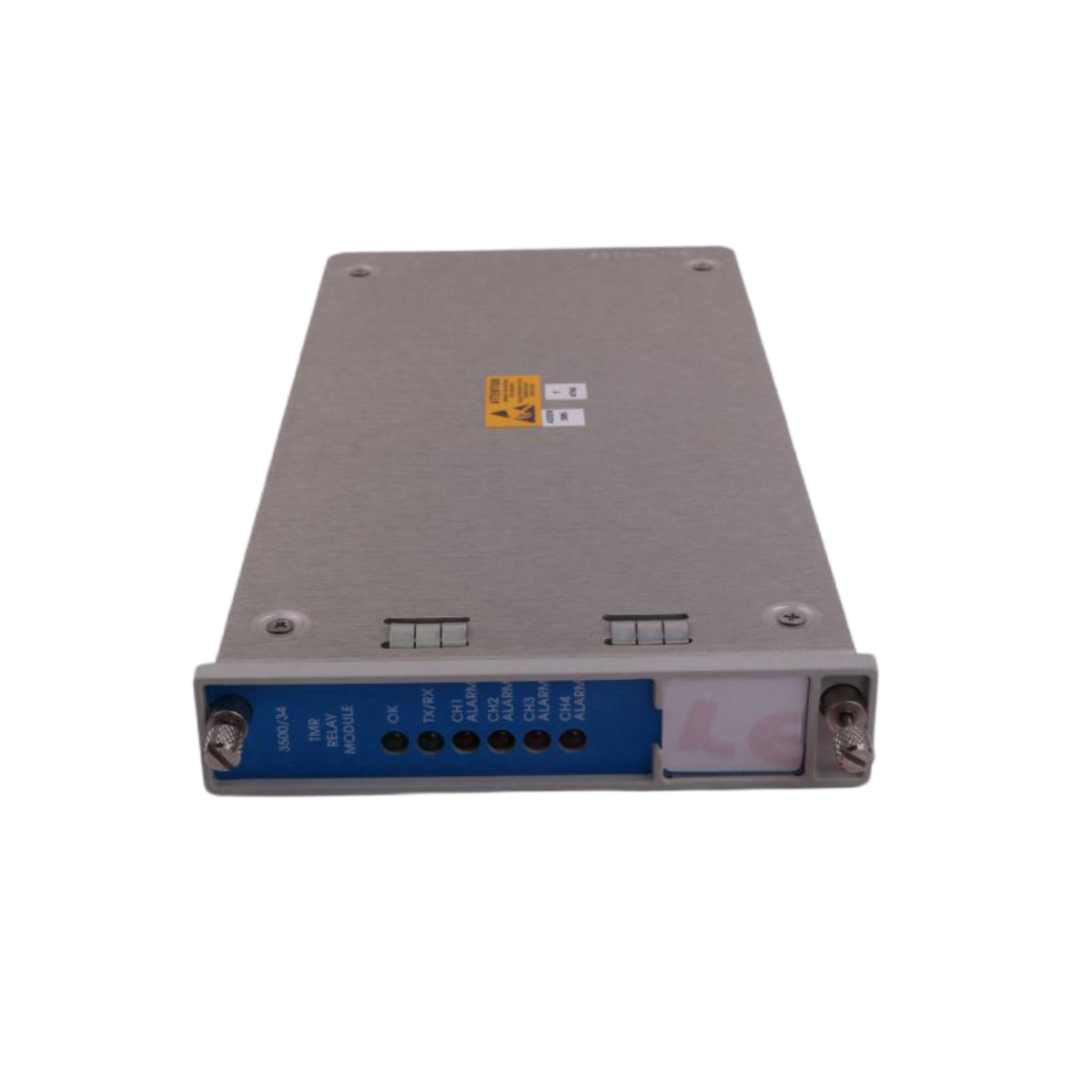

The 3500/34 TMR Relay I/O Module from Bently Nevada is engineered for critical machinery protection applications. Each of its four relay channels receives three independent alarm signals, ensuring accurate and reliable alarm activation through a triple modular redundant (TMR) architecture. Alarm Drive Logic is configurable via the 3500 Rack Configuration Software.
Key Features
- Triple Modular Redundant (TMR) Architecture: Three independent alarm signals per relay channel for maximum reliability
- 2-out-of-3 Voting Mechanism: Ensures dependable alarm activation
- Independent Alarm Contacts: Each relay channel receives input from three separate monitors
- Status Indicators:
- OK LED: Confirms proper module function
- TX/RX LED: Flashes during communication with other modules
- CH ALARM LEDs: Illuminate when a channel enters an alarm state
- Power Consumption: 9.6 W typical
Technical Specifications
| Feature | Specification |
|---|---|
| Part Number | 125704-01 |
| Module Type | 3500/34 TMR Relay I/O Module |
| Relay Channels | 4 |
| Relay Type | DPDT per channel (operated as SPST) |
| Contact Life | 100,000 cycles at 1.5 A, 24 VDC or 1 A, 120 VAC |
| Relay Operation | Normally energized |
| Environmental Limits | Operating Temp: -30°C to +65°C; Storage Temp: -40°C to +85°C; Humidity: 95% non-condensing |
| Sealing | Epoxy-sealed for durability |
| Dimensions | H 241 mm × W 24.4 mm × D 99.1 mm |
| Weight | 0.5 kg (1.0 lb) |
Applications
- Machinery Protection: Accurate and redundant alarm relay activation for critical industrial equipment
- Redundant Safety Systems: TMR architecture ensures fail-safe operation
- Industrial Alarm Systems: High-reliability solution for environments requiring triple-redundant monitoring
Details
| Weight | 0.5 kg |
|---|
