Product Overview

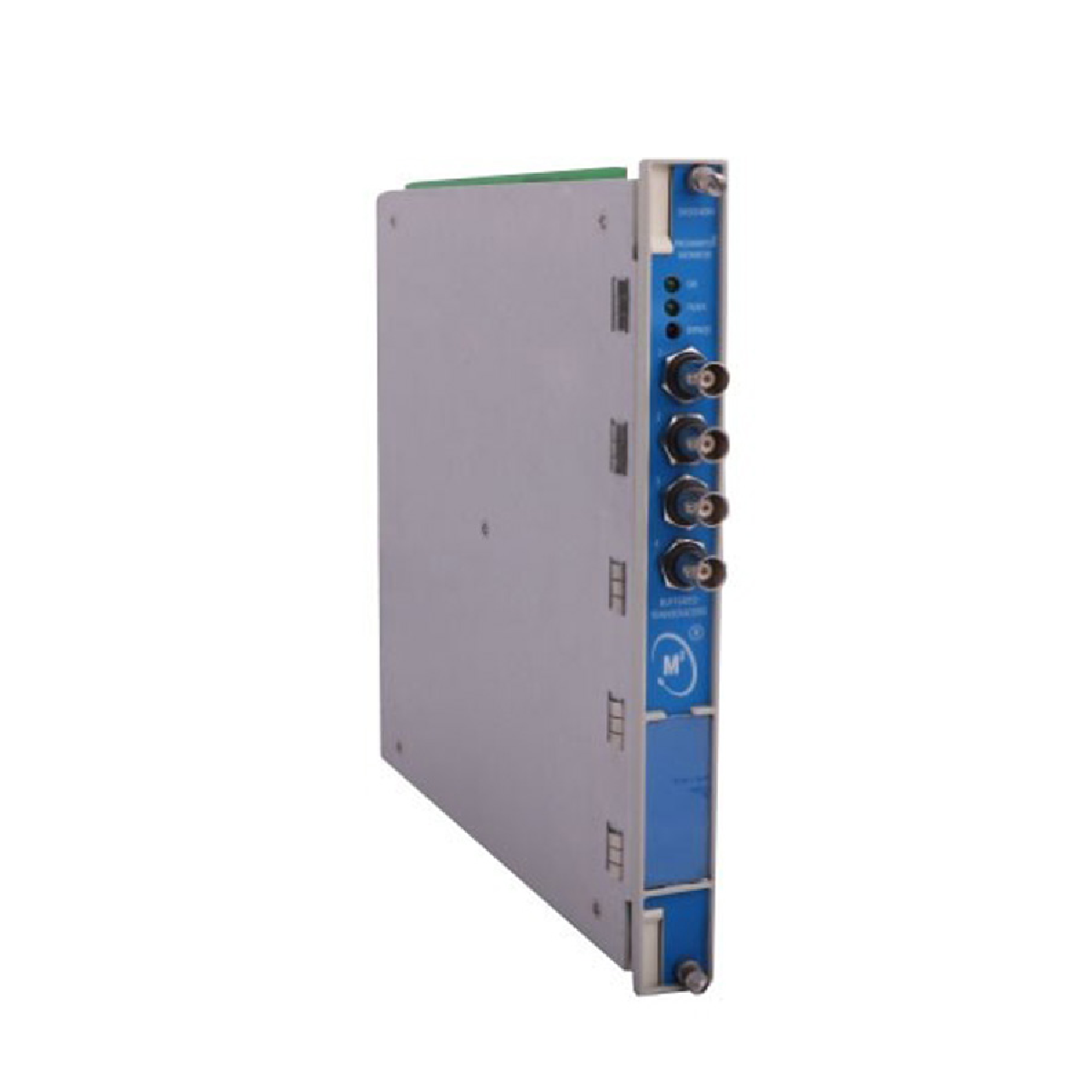

The Bently Nevada 125680-01 Proximitor I/O Module accepts up to four proximity transducer signals for precise machinery monitoring. Moreover, internal terminations simplify integration into 3500 system racks. In addition, the module supports both standard and TMR I/O configurations, offering flexibility for varied industrial setups.
Key Benefits
- Flexible Inputs: Connect 1–4 proximity transducer signals for diverse monitoring requirements.
- Optimized Impedance: Standard I/O provides 10 kΩ, while TMR I/O offers 50 kΩ for three channels wired in parallel.
- Low Power Consumption: The module draws only 7 watts, which reduces system energy usage.
- Durable and Compact: Its robust construction ensures reliable operation in harsh environments.
- Easy Integration: Technicians install the module directly into available 3500 slots, minimizing setup time.
- Enhanced Monitoring: Additionally, it enables early fault detection and improves predictive maintenance efficiency.
Technical Data
| Parameter | Specification |
|---|---|
| Model Number | 125680-01 |
| Signal Input | 1–4 Proximity Transducers |
| Input Impedance | Standard I/O: 10 kΩ; TMR I/O: 50 kΩ |
| Power Consumption | 7 Watts (typical) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Physical Dimensions | 241.3 x 24.4 x 91.1 mm (9.50 x 0.96 x 3.90 in.) |
| Weight | 0.20 kg (0.44 lb) |
Applications & System Integration
- Machinery Protection: Monitor turbines, compressors, and rotating equipment for precise control.
- Vibration Analysis: Track shaft displacement and machine health trends. Moreover, detect early signs of wear.
- Predictive Maintenance: Identify potential failures early, which reduces unplanned downtime.
- Rack Integration: Technicians install multiple modules efficiently, supporting both standard and TMR channels. In addition, users can scale monitoring solutions as needed.
Details
| Weight | 0.2 kg |
|---|
