Product Overview

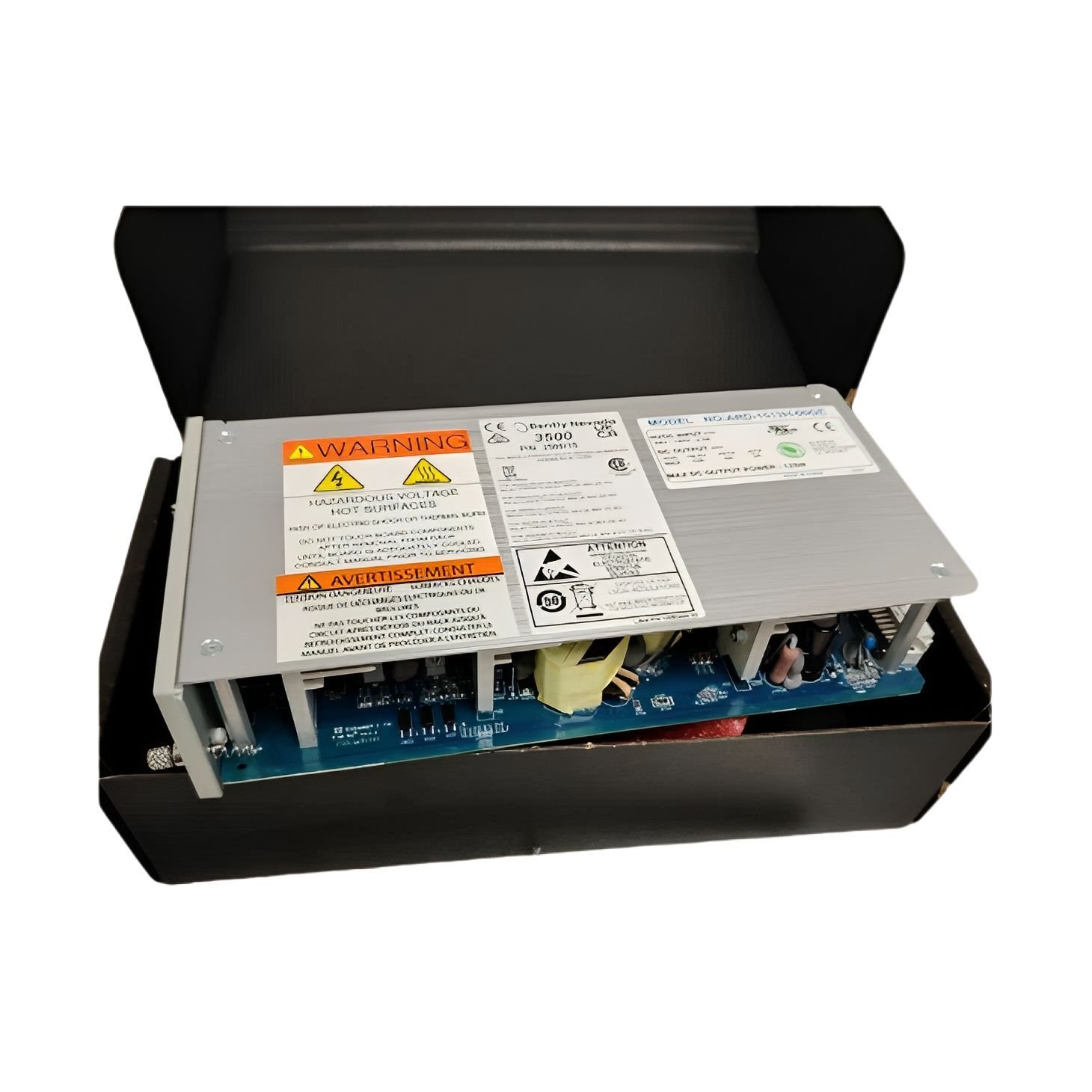

The 114M5329-01 is a high voltage DC power supply designed to work with the High Voltage DC Power Input Module (PIM).
It delivers stable, reliable DC power for industrial monitoring systems requiring high voltage input.
The module supports redundancy for critical applications.

Key Features

• Input Voltage: 88–140 Vdc
• Out-of-Range Protection:
  • Under-voltage: No damage to power supply or PIM
  • Over-voltage: Fuse on PIM opens to protect the system
• Rack-Mount Design: Occupies two half-height slots, allows redundant configuration
• Industrial Reliability: Designed for continuous operation under harsh conditions

Technical Specifications

Dimensions & Weight

• Height: 120.7 mm (4.75 in)
• Width: 50.8 mm (2.0 in)
• Depth: 251.5 mm (9.9 in)
• Weight: 1.39 kg (3.06 lb)

Environmental Limits

• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: Up to 95%, non-condensing

Applications

• High voltage DC power supply for industrial monitoring systems
• Supports machinery protection systems requiring redundant DC power
• Suitable for power plants, refineries, and other critical industrial environments

The 114M5329-01 ensures reliable and safe high voltage DC power delivery for Bently Nevada monitoring systems.
