Product Overview

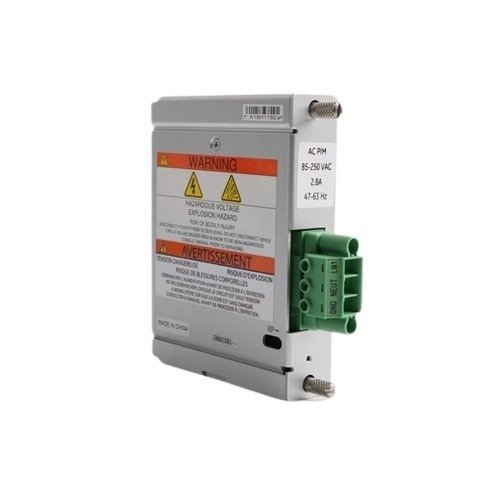

The Bently Nevada 106M1081-01 Universal AC Power Input Module provides a flexible and reliable power interface for Bently Nevada monitoring systems. It supports a wide AC input range, ensuring stable operation across varying industrial environments. Designed to work with the Universal AC Power Supply, it replaces legacy low- and high-voltage units for improved compatibility and performance.
Moreover, its compact structure saves rack space, making it ideal for dense installations or modular system expansions. With an operating range from -30°C to +65°C, this module ensures consistent functionality even under demanding environmental conditions.
Key Functional Highlights
- Wide Voltage Range: Operates from 85 to 264 Vac RMS, suitable for global AC standards.
- Universal Compatibility: Designed exclusively for use with Universal AC Power Supply modules.
- Compact Form Factor: Occupies half-height rack space for efficient system layout.
- Industrial Durability: Performs reliably from -30°C to +65°C and stores safely down to -40°C.
- Ease of Integration: Mounts directly behind the power supply for simplified cabling and reduced installation time.
In addition, its high humidity tolerance (up to 95% non-condensing) ensures dependable operation in various industrial control cabinets.
Technical Specifications
| Parameter | Description |
|---|---|
| Input Voltage | 110–220 Vac nominal, 85–264 Vac RMS, 120–373 Vac peak |
| Input Frequency | 47–63 Hz |
| Module Dimensions | H: 120.7 mm (4.75 in), W: 25.4 mm (1.0 in), D: 114.3 mm (4.5 in) |
| Weight | 0.34 kg (0.75 lb) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
| Rack Location | Half-height slot, positioned behind the associated power supply |
Therefore, this configuration supports reliable performance in diverse industrial applications such as vibration monitoring, turbine control, and condition monitoring systems.
System Integration & Typical Applications
The 106M1081-01 module integrates seamlessly with Bently Nevada’s Universal AC Power Supply to provide continuous, noise-free power delivery. It is widely used in:
- Machinery Protection Systems
- Turbine and Compressor Monitoring
- Industrial Control Panels
- Vibration and Condition Monitoring Racks
Furthermore, its universal voltage input allows easy deployment across plants with mixed regional power standards, reducing spare parts inventory and simplifying maintenance operations.
Details
| Weight | 0.34 kg |
|---|
