Overview

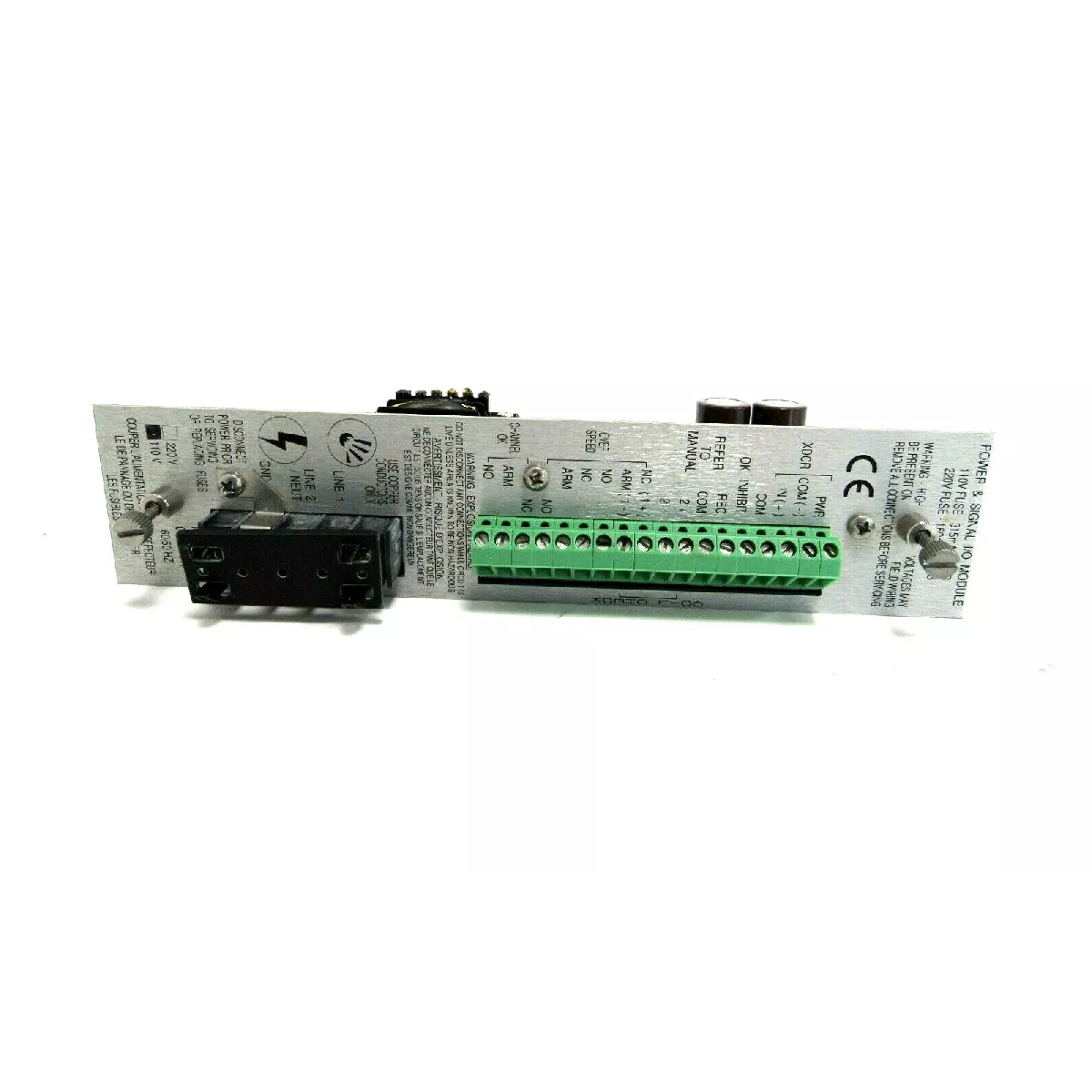

The Bently Nevada 102618-01 Signal/Power Input Card is a crucial component in industrial automation systems. It provides both signal input and power distribution, supporting a wide range of AC and DC voltages. Designed for flexibility, the card allows voltage customization through jumper settings, ensuring compatibility with various system requirements. It offers reliable performance, making it ideal for diverse industrial environments.
Key Specifications
| Specification | Details |
|---|---|
| Product | Signal/Power Input Card |
| Part Number | 102618-01 |
| Manufacturer | Bently Nevada |
| Voltage Options | 12 V DC, 24 V DC, 48 V DC, 110/125 V DC, 110/120 V AC, 220/240 V AC |
| Coil Voltage Customization | Jumper settings for Coil 1 and Coil 2 |
Coil Voltage Options & Jumper Settings
The 102618-01 allows easy customization of coil voltage settings via jumper configurations. Below are the jumper settings for each coil voltage option:
| Coil Voltage | Coil 1 Jumper Settings | Coil 2 Jumper Settings |
|---|---|---|
| 12 V DC | W12 & W16 | W1 & W6 |
| 24 V DC | W11 & W16 | W1 & W5 |
| 48 V DC | W10 & W16 | W1 & W4 |
| 110/125 V DC | W9 & W16 | W1 & W3 |
| 110/120 V AC | W14 & W15 | W2 & W8 |
| 220/240 V AC | W13 & W15 | W2 & W7 |
How to Configure
To configure the 102618-01 for your desired voltage, follow these steps:
- Identify the coil voltage needed (e.g., 12V DC).
- Set the jumpers according to the voltage table (e.g., for 12V DC, set Coil 1 to W12 & W16 and Coil 2 to W1 & W6).
- Ensure proper connection to the power source and verify that the voltage matches the input requirements for reliable operation.
Applications
The Bently Nevada 102618-01 Signal/Power Input Card is essential for industrial automation systems where precise voltage input and power distribution are necessary. It integrates smoothly with monitoring equipment, ensuring efficient and stable data handling in industrial settings.
FAQ
Q: What voltages does the Bently Nevada 102618-01 support?
A: The 102618-01 supports multiple coil voltages, including 12V DC, 24V DC, 48V DC, 110/125V DC, 110/120V AC, and 220/240V AC.
Q: How do I configure the 102618-01 for a specific voltage?
A: Simply refer to the jumper settings table to adjust Coil 1 and Coil 2 for the required voltage.
Q: Is the 102618-01 compatible with both AC and DC voltages?
A: Yes, the 102618-01 is designed to handle both AC and DC voltages, offering flexibility for various industrial applications.
Q: How is the 102618-01 delivered?
A: The 102618-01 is shipped as a brand-new, original part, with immediate availability depending on stock and order size. We ship via reliable carriers such as DHL.
