Overview

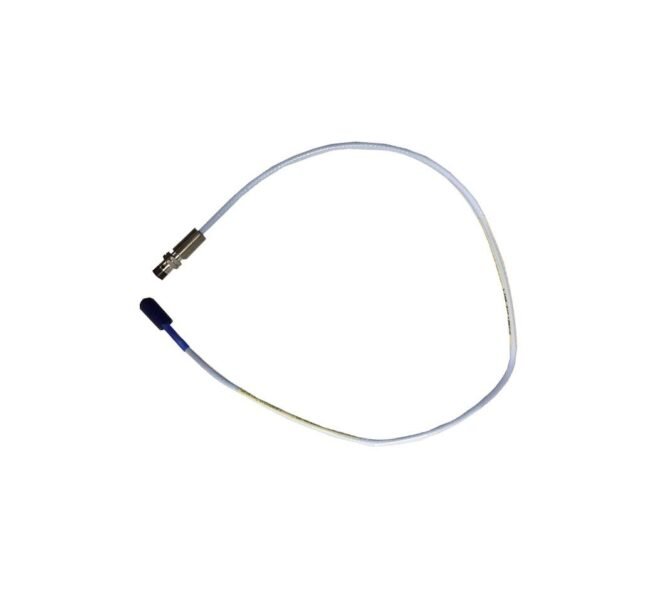

The 330106-05-30-05-02-00 3300 XL 8 mm Reverse Mount Probe by Bentley Nevada delivers enhanced durability and high performance. It uses patented TipLoc molding for a strong bond between the probe tip and body. The CableLoc design secures the cable with 330 N (75 lbf) pull strength.
Optional Features
- FluidLoc Cable: Prevents liquid ingress through the cable interior.
- Connector Protectors: Available pre-installed or separately for field installations.
Connectors
| Parameter | Specification |
|---|---|
| Type | Corrosion-resistant, gold-plated ClickLoc connectors |
| Installation | Finger-tight torque with engineered locking mechanism |
| Compatibility | Miniature ClickLoc coaxial connector (Option 02) |
Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Extended Temperature | Probe tip: -52°C to +218°C; Cable/connector: -51°C to +260°C |
| Operating Altitude | Up to 2000 meters |
| Weight – Total System | 0.7 kg (1.5 lbs) |
| Probe Weight | 323 g/m (11.4 oz) |
| Extension Cable Weight | 34 g/m (0.4 oz/ft) |
| Thread Engagement | M10 x 1, maximum 15 mm |
Environmental Performance
The 330106-05-30-05-02-00 probe seals differential pressure using a Viton® O-ring. Relative humidity testing shows less than 3% change in Average Scale Factor (ASF) at 93% humidity for 56 days.
Electrical Specifications
| Parameter | Value |
|---|---|
| Proximitor Sensor Input | Accepts one non-contacting 3300-series 5 mm or 8 mm proximity probe |
| Power Requirements | -17.5 Vdc to -26 Vdc at 12 mA; -23 Vdc to -26 Vdc with barriers |
| Output Resistance | 50 Ω |
Ordering & Usage Notes
The 330106-05-30-05-02-00 probe includes total length option 0.5 meter (1.6 feet) and does not require agency approval. Mounting clamps for part numbers 330140, 330141, 330197, and 330198 must be ordered separately. Stocked units ensure faster delivery.
Details
| Weight | 0.7 kg |
|---|
