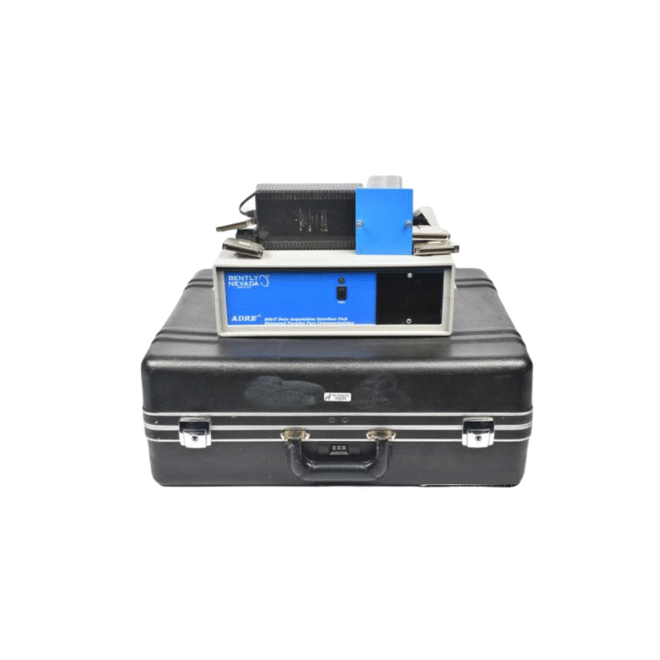

The Bently Nevada 102351-04-01 (208/208-P DAIU) supports vibration monitoring and machinery diagnostics with reliable data collection. Engineers use it with Bently Nevada’s ADRE system for efficient field analysis.
Overview
The original 208 DAIU works with Compaq notebooks through a docking port connector. Engineers could also connect it to desktop computers by using a dedicated ISA card.
Later, the 208-P DAIU replaced it, offering direct connectivity through an Enhanced Parallel Port (EPP). This upgrade improves speed and ensures broad compatibility with modern notebooks and desktops.
However, a 208 and a 208-P cannot connect to each other. As a result, teams keep the 208 only when they need to integrate with older 208 units.
Key Features
- Provides 8 signal inputs for data capture.
- Handles up to 16 channels of data acquisition.
- Supports EPP connections on the 208-P version.
- Stores information with 80 MB hard disk capacity.
- Delivers real-time display for vibration analysis.
- Maintains backward compatibility with ADRE 3 databases.
Ordering Information
- Product Name: 208/208-P Data Acquisition Interface Unit
- Product ID: 102351-04-01
- Package Includes: Power cord and communication cable
Options
Adapter Type
- 04: Enhanced Parallel Port (208-P DAIU)
- ISA interface card for desktop computers
- PCMCIA slot option for notebooks
- When engineers connect two 208 units, only one requires a computer interface. The second can operate with option 00 (no adapter).
Battery Types
- 01: Standard Battery
Notes
- Each unit includes communication cables, so customers do not need extra parts.
- When users plan for new projects, they should choose the 208-P DAIU for better performance and compatibility.
Details
| Weight | 10.5 kg |
|---|---|
| Dimensions | 368 × 356 × 127 mm |
