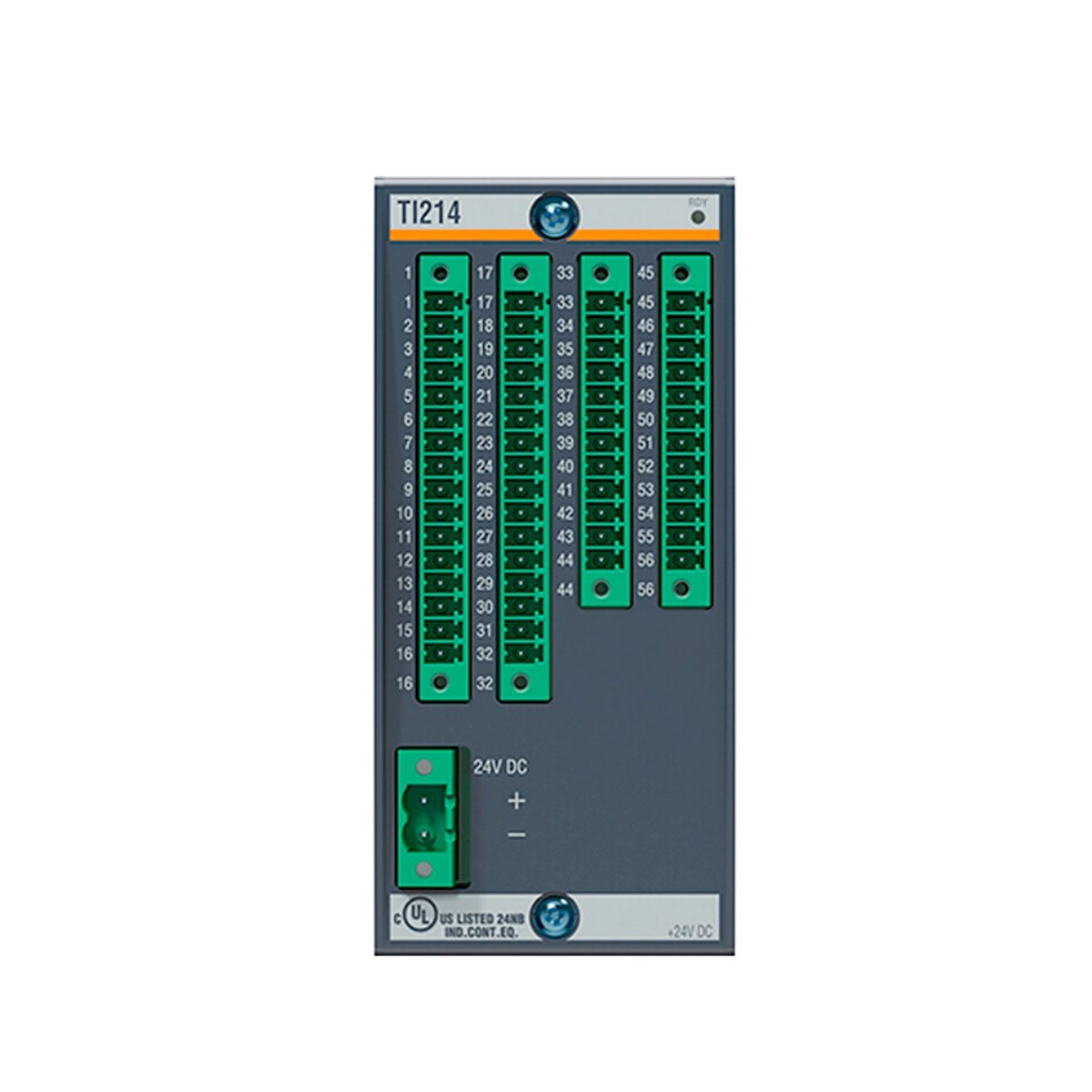

Versatile Temperature Input Module
The Bachmann TI214 controller module supports multiple input types, including Pt100, Pt1000, type J, and type K thermocouples. Its flexible 2-wire or 3-wire configuration ensures accurate readings for RTDs, making it ideal for PLC, DCS, and factory automation applications. Moreover, its integrated cold junction compensation maintains precise measurements for thermocouple inputs.
High Accuracy and Resolution
The TI214 provides ±0.1% full-scale accuracy for RTDs and ±0.5% full-scale accuracy for thermocouples. The module also delivers 0.1°C resolution, ensuring highly detailed temperature monitoring. These features enhance process reliability and improve control system efficiency across industrial automation environments.
Flexible Output Options
This module offers both analog and digital outputs. Analog outputs include 4–20 mA and 0–10 V options. Digital communication is available via RS-485 using Modbus protocol. As a result, the Bachmann TI214 integrates seamlessly with existing control systems, supporting both local and remote monitoring requirements.
Technical Specifications
| Feature | Specification |
|---|---|
| Product | Bachmann TI214 Controller Module |
| Input Types | Pt100, Pt1000, type J, type K thermocouples |
| Input Wiring | 2-wire / 3-wire for Pt100/Pt1000 |
| Number of Inputs | 14 |
| Accuracy | ±0.1% FS (RTDs), ±0.5% FS (thermocouples) |
| Resolution | 0.1°C |
| Cold Junction Compensation | Integrated for thermocouples |
| Analog Output | 4–20 mA, 0–10 V |
| Digital Output | RS-485, Modbus |
| Power Supply | 24 VDC |
| Operating Temperature | -20°C to +60°C |
| Mounting | DIN rail |
| Dimensions | 144 × 72 × 110 mm |
| Weight | 400 g (approx.) |
Design and Operational Advantages
The compact DIN-rail mount design allows easy installation in control cabinets. Furthermore, its robust power supply and wide operating temperature range ensure reliable performance in harsh industrial conditions. Integrating the TI214 module into factory automation systems reduces downtime and improves temperature control precision.
Origin, Dimensions, and Weight
- Origin: Germany
- Dimensions: 144 × 72 × 110 mm
- Weight: 400 g
Details
| Weight | 0.4 kg |
|---|---|
| Dimensions | 144 × 72 × 110 mm |
