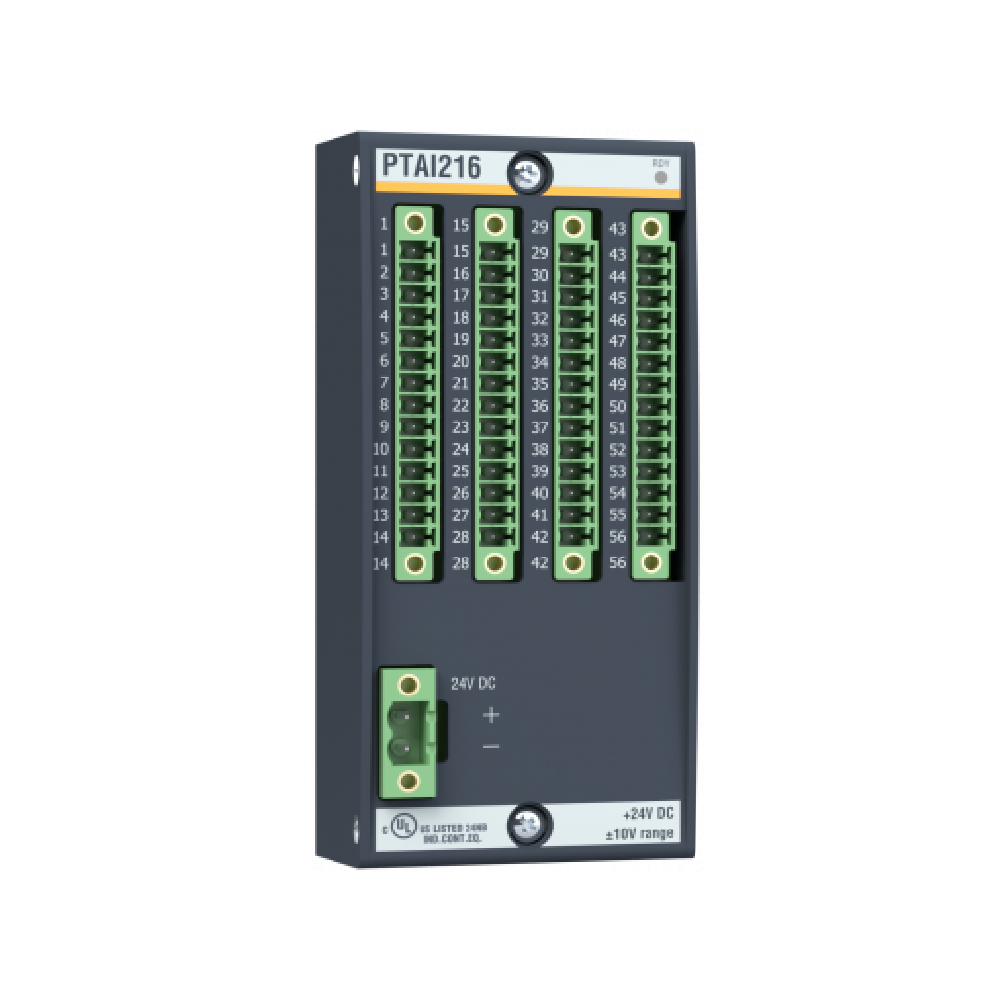

The Bachmann PTAI216 is a versatile module engineered for precise temperature measurement in industrial and marine automation. It offers four analog channels and twelve dedicated Pt100/Pt1000 inputs, ensuring accurate and reliable monitoring across a wide range of applications.
Key Features of Bachmann PTAI216
- Four analog inputs for ±10 V, ±1 V, or 0–20 mA signals
- Twelve Pt100/Pt1000 inputs with 2-wire configuration
- 14-bit resolution for analog signals, 12-bit resolution for Pt100/Pt1000
- Fast sampling: 2.5 ms for analog and 480 ms for Pt100/Pt1000
- Galvanically isolated channels for system protection
- Wire break detection and external power monitoring for added reliability
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bachmann |
| Product ID | PTAI216 00010708-00 |
| Module Type | Temperature Recording Module |
| Analog Inputs | 4 (±1 V, ±10 V, 0–20 mA) |
| Analog Resolution | 14 bit |
| Pt100/Pt1000 Inputs | 12 (2-wire) |
| Pt100/Pt1000 Resolution | 12 bit |
| Voltage Input Impedance | > 33 kΩ |
| Current Input Impedance | 243 Ω |
| Sampling Time | 2.5 ms (analog) / 480 ms (Pt100/Pt1000) |
| Cross-talk Attenuation | > 60 dB |
| Temperature Range | -100 to +300 °C |
| Power Supply Voltage | 18–34 VDC |
| Current Consumption | 70 mA at 24 VDC |
| Isolation | 500 V galvanic isolation |
| Approvals / Certificates | CE, cULus, CCC, DNV, LR, ABS, BV |
| Operating Temperature | -30 to +60 °C |
| Storage Temperature | -40 to +85 °C |
| Relative Humidity (Operation) | 5–95 % with or without condensation |
| Pollution Degree | 2 (IEC 60664-1) |
Order Codes for Bachmann PTAI216 Series
- PTAI216 00010708-00: Standard temperature recording module with 12 Pt100/Pt1000 and 4 analog inputs
- PTAI216 CC 00017456-00: ColdClimate version with extended environmental performance
- KS-PTAI216 B+C 00012599-50: Terminal set with cage clamp and labeling elements
- KZ-PTAI216 B+C 00026126-00: Phoenix cage clamp terminal set with coding elements
- SS-PTAI216 B+C 00012010-50: Phoenix screw-side terminal set with labeling accessories
- SV-PTAI216 B+C 00010870-50: Phoenix screw-frontside terminal set with labeling accessories
Application and Usage
The Bachmann PTAI216 module suits demanding temperature monitoring tasks in industrial automation, power plants, and marine systems. Its wide input range, high accuracy, and multiple certifications make it a reliable choice for long-term installations.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 228.6 × 177.8 × 127 mm |
