Product Overview

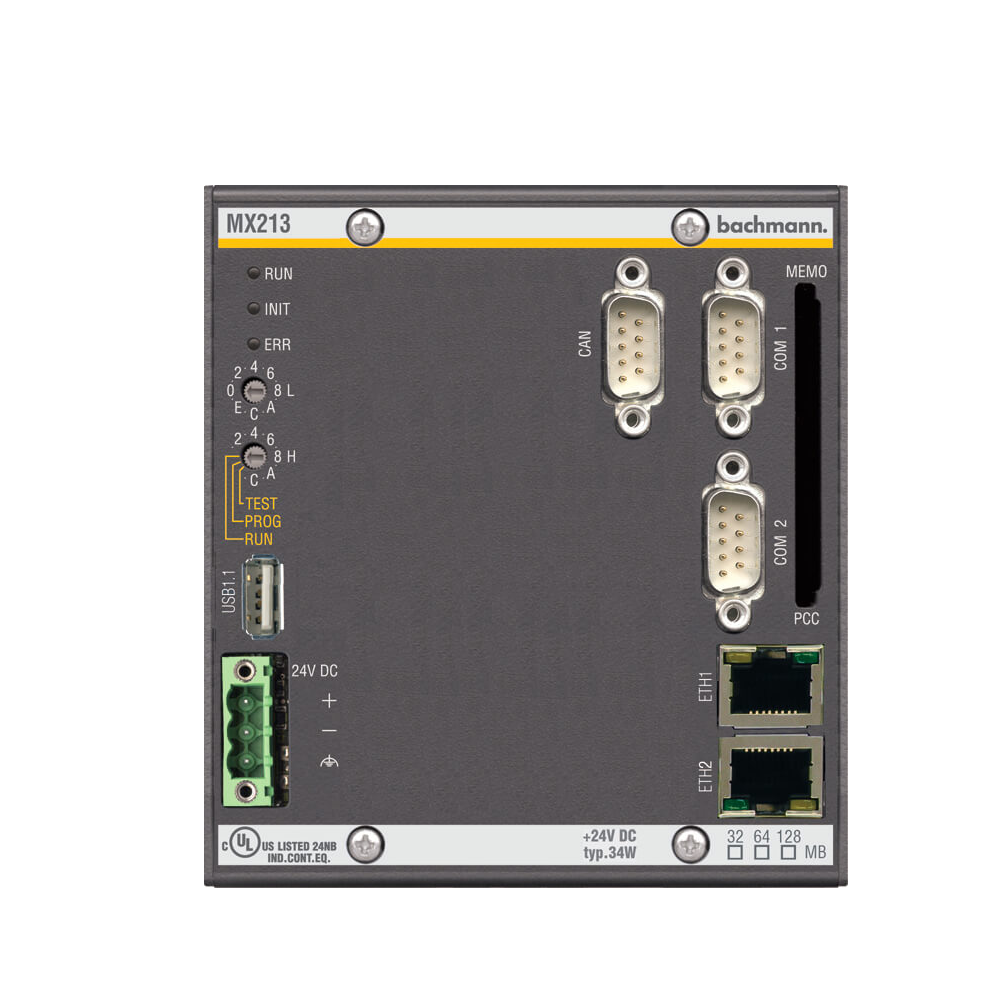

The Bachmann MX213 is a high-performance industrial processor module designed for demanding control and automation applications. It is part of the MX200 series and offers advanced processing power, extensive connectivity options, and support for a variety of industrial standards.

Key Specifications

Processor:

• Architecture: x86 / AMD LX
• CPU: Industrial Low Voltage
• Clock Frequency: 266 MHz
• Processor Cores: 1 (Single Core)
• Multitasking: Yes
• Hyper-Threading: No
• Real-Time SMP/Core Reservation: Not supported

Memory:

• Main Memory: 256 MB (supports partitioning)
• RAMDisk: Yes
• Retentive Memory (Retain): 512 kB NVRAM
• Mass Storage Integrated: 64 MB (Flash memory)
• Removable Storage:
  • Compact Flash (via side cover)
  • PC-Card (16/32/64 MB via front side)

Communication & I/O Interfaces:

• Ethernet: 2x 10/100 Base-Tx (RJ45)
• Serial Ports:
  • 1x RS232 (D-SUB-9 m)
  • 1x RS232/RS422/RS485 (D-SUB-9 m)
• USB: 1x USB 2.0 (Type-A female)
• CAN Interface:
  • 1x CAN / CANopen / J1939 (D-SUB-9 m), isolated
  • Data rate: up to 1 Mbit/s
  • Operating Modes: CAN Master, CAN IO Device

I/O Subsystem:

• Interface: Bachmann M1 Backplane Interface
• Synchronization Pulse: For I/O and field buses

Power Supply:

• Supply Voltage: 24 VDC (18 to 34 V)
• Rated Power Consumption:
  • Without I/O: 9.5 W
  • With I/O: 33.6 W
• Power Output for I/O: 16.75 W
• Maximum Currents for I/O:
  • +5 V: 2800 mA
  • +15 V: 250 mA
  • -15 V: 200 mA
• Protection: Polarity Reversal Protection, Isolation of Supply

Environmental Conditions:

• Operating Temperature: -30 to +60 °C (fanless)
• Storage Temperature: -40 to +85 °C
• Humidity: 5 to 95% (non-condensing)
• Max Operating Altitude: 2000 m (with derating up to 4500 m)

Certifications:

• Product Safety: CE, cULus, CCC
• Maritime Approvals: DNV, LR, ABS, BV, NK, KR, RINA

Physical Dimensions:

• Module Slots: 2
• Dimensions: 110 x 119 x 61 mm (W x H x D)
• Weight: Approx. 675 g

System Requirements:

• Backplane: BS2xx, BS2xx/S, BS2xx/E
• Software: Minimum version MxCCore V3.80; recommended MxCCore V4.30

Ordering Information:

• Item: MX213
• Item No.: 00031491-00
• Description: CPU module MX213 (266 MHz, SingleCore, 256 MB DRAM, 512 kB nvRAM, 64 MB File-Flash, 2x Ethernet 100Base-T, 1x CAN, 1x RS232, 1x USB2.0, I/O supply 17W, Compact Flash slot)
