Product Overview

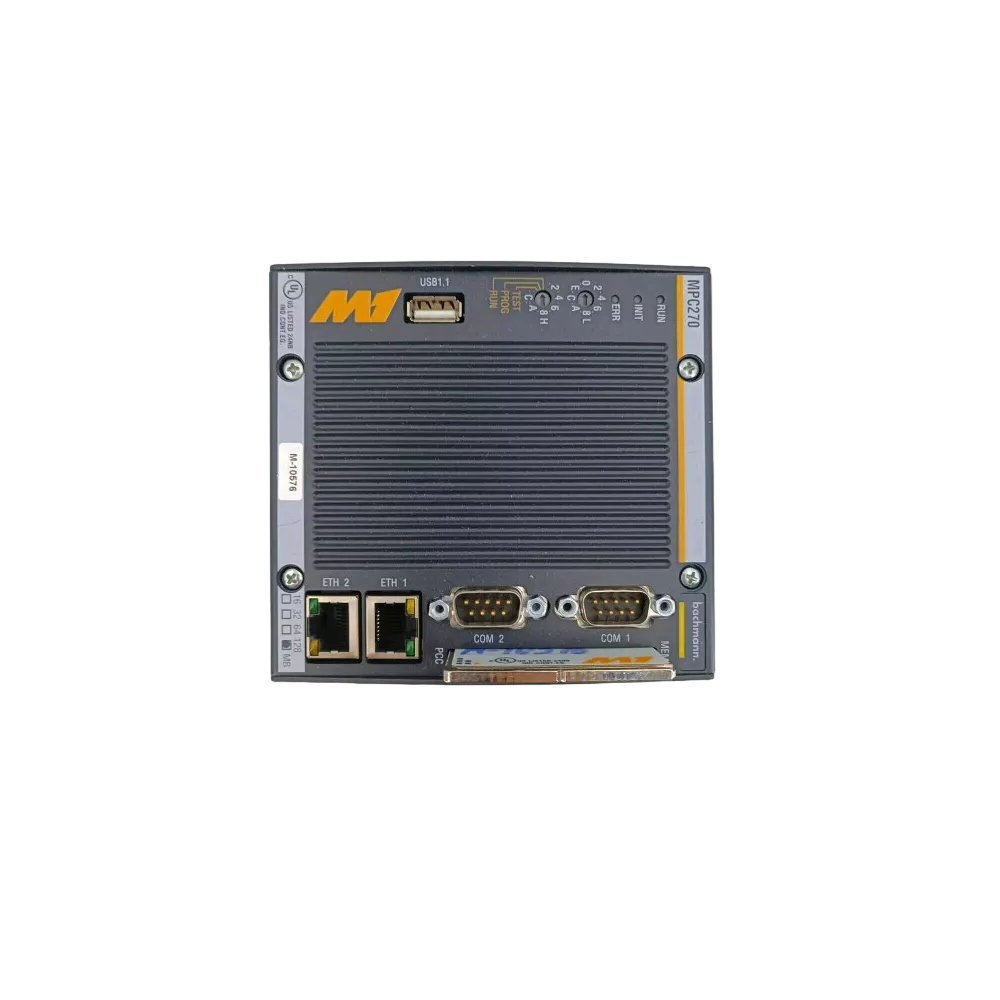

The Bachmann MPC270 is a powerful processor module from the MPC200 series designed for the M1 controller system. Featuring Pentium III-class processors, this module offers flexible configurations and is ideal for diverse industrial applications requiring robust processing power. With up to 700 MHz CPU speed, ample memory options, and multiple interfaces, the MPC270 excels in both high-performance and reliable industrial control systems.
Key Features
Processor and Memory
- CPU: Options include Celeron (400 MHz), Pentium III (700 MHz) for faster processing speeds.
- Memory:
- SRAM: Up to 512 Kb (battery-backed for data retention).
- FRAM: 64 Kb (no battery needed).
- DRAM: 64 MB or 128 MB working memory.
- Flash: 8 MB internal storage for system files.
Connectivity and Interfaces
- Serial Ports: 1x RS232, 1x RS232/422/485 for versatile communication options.
- Ethernet Ports: 2x 10/100 Base-TX Ethernet connections for high-speed network integration.
- USB Port: 1x USB 1.1 for additional connectivity.
Power and Environmental Specifications
- Power Supply: Requires an external power module, providing 5V and ±15 V through the backplane.
- Operating Temperature: 0 to 60 °C (fan-free operation).
- Humidity: 5% to 95% (non-condensing).
Additional Features
- Watchdog Timer: Ensures the system remains responsive.
- Synchronization Pulse: Supports synchronization for SERCOS, CAN, and Ethernet fieldbuses.
- Real-Time Clock: Integrated RTC with battery backup for accurate time tracking.
- Status Indicators: Monitored via 3 LEDs for easy diagnostic access.
Technical Specifications
| Feature | Specification |
|---|---|
| CPU | Celeron (400 MHz), Pentium III (700 MHz) |
| Memory | 512 Kb SRAM, 64 Kb FRAM, 64-128 MB DRAM |
| Internal Flash | 8 MB internal |
| Serial Interfaces | 1x RS232, 1x RS232/422/485 |
| Ethernet Ports | 2x 10/100 Base-TX |
| USB Port | 1x USB 1.1 |
| Power Supply | External: 5V, ±15 V via backplane |
| Operating Temperature | 0°C to +60°C |
| Weight | 650g |
| Dimensions | 110 x 119 x 61 mm |
Models and Ordering Information
| Item | Item No. | Description |
|---|---|---|
| MPC270 | 00013737-00 | Processor module; Pentium III 700 MHz, 8 MB flash, 2x Ethernet, 1x RS232/422/485, USB 1.1, fan-free operation |
Frequently Asked Questions (FAQ)
Q1: What CPU options are available for the MPC270 processor module?
A1: The MPC270 offers options for Pentium III (700 MHz) or Celeron (400 MHz) processors depending on the desired performance level.
Q2: What is the memory configuration of the MPC270?
A2: The MPC270 comes with 512 Kb SRAM, 64 Kb FRAM, and 64-128 MB DRAM, providing ample memory for industrial applications.
Q3: Can I use the MPC270 in a temperature-sensitive environment?
A3: Yes, the MPC270 operates in a wide temperature range from 0°C to +60°C without requiring a fan.
Q4: How many serial and Ethernet ports are provided?
A4: The MPC270 includes 1x RS232, 1x RS232/422/485, and 2x 10/100 Base-TX Ethernet ports for flexible communication options.
Q5: Does the MPC270 module have real-time clock (RTC) functionality?
A5: Yes, the MPC270 includes an integrated real-time clock (RTC) with battery backup for precise time tracking.
