Product Overview

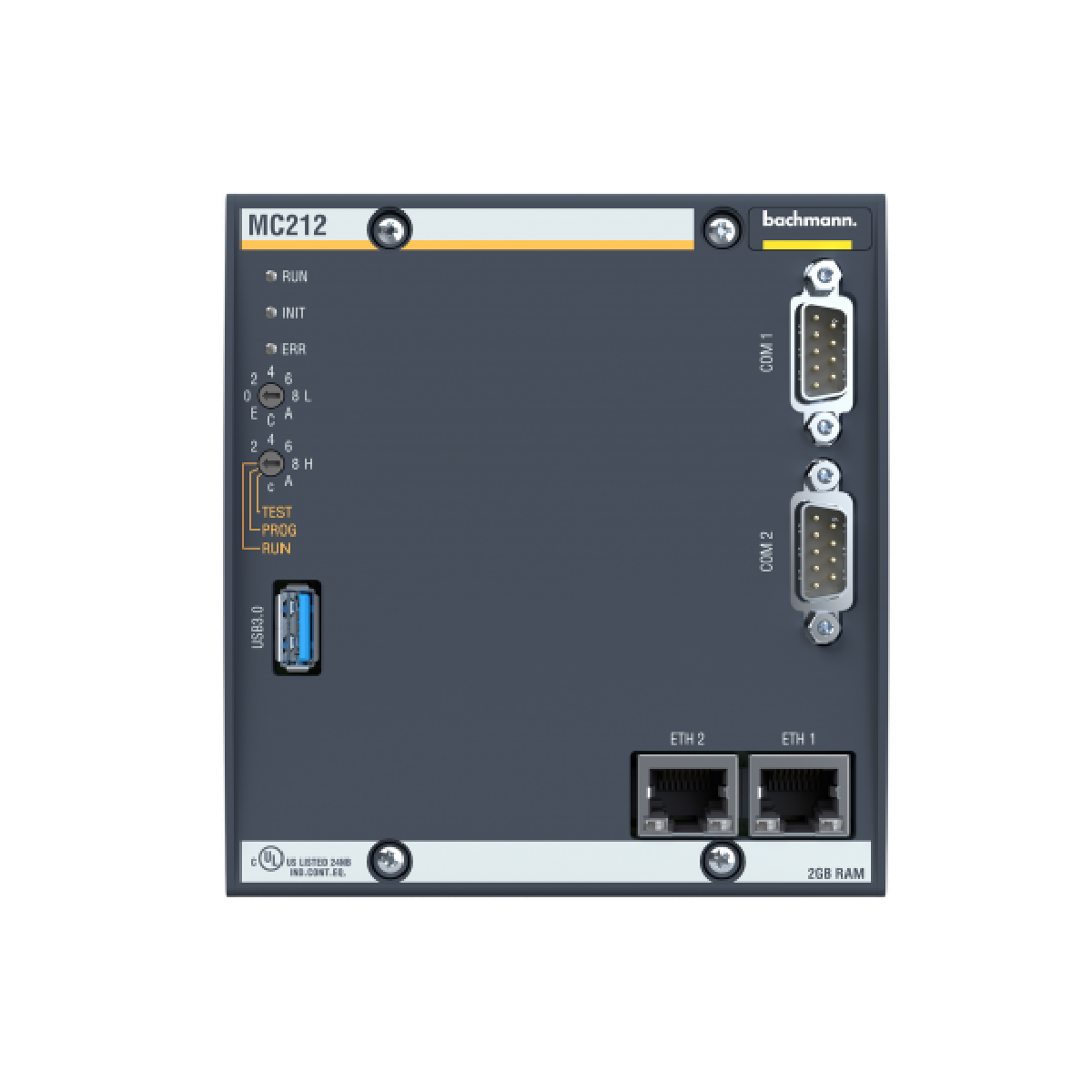

The Bachmann MC212 is a high-performance CPU module in the MC200 series, powered by a DualCore 1.3 GHz processor.
With symmetric multiprocessing, real-time capabilities, and strong environmental resilience, it is tailored for demanding applications such as motion control, predictive maintenance, and industrial data processing.
Key Features
- DualCore 1.3 GHz CPU with 2 GB DDR4 RAM
- Memory: 512 kB nvRAM, 2 GB pSLC File-Flash
- Interfaces:
- 2 × Ethernet (100/1000)
- 1 × RS232
- 1 × RS232/422/485
- 1 × USB 3.0
- CFast slot
- Advanced Monitoring of CPU load, runtime behavior, and temperature
- Real-Time Support: RTC with IEEE 1588 + SNTP sync
- Security: TPM 2.0 hardware module
- Fanless operation from -30°C to +60°C
Technical Specifications
Hardware
| Attribute | Details |
|---|---|
| Processor | DualCore, 1.3 GHz |
| RAM | 2 GB DDR4 |
| nvRAM | 512 kB |
| File-Flash | 2 GB pSLC |
| Ports | 2×Ethernet, RS232, RS232/422/485, USB 3.0 |
| Storage | CFast-Slot |
Environmental
| Attribute | Details |
|---|---|
| Operating Temp | -30°C … +60°C |
| Storage Temp | -40°C … +85°C |
| Humidity | 5% – 95% (non-condensing) |
| Altitude | Up to 2000 m (4500 m with derating) |
Power & Safety
| Attribute | Details |
|---|---|
| Supply Voltage | +5 VDC via M200 backplane |
| Consumption | 11.1 W (2220 mA @ +5 V) |
| Protection Class | IP20 (IEC 60529) |
| Certifications | CE, UKCA, cULus, ABS, BV, DNV, KR, LR, NK, RINA |
Physical
| Attribute | Details |
|---|---|
| Dimensions | 110 × 119 × 61 mm |
| Weight | ~500 g |
Programming & Software
- Languages: IEC 61131-3, C/C++, MATLAB®/Simulink®
- Function Modules: Motion Control, CNC, adaptive temperature control
- Operating System: McOS (VxWorks 7)
- Development Tools: ToolChain V4.30 or higher
Order Information
| Part Type Designation | Part Number | Description |
|---|---|---|
| MC212 | 00031731-00 | DualCore CPU, 2 GB DDR4, TPM, CFast-Slot |
| MC212 4GB CFA | 00031731-03 | Same as MC212, with additional 4 GB CFast |
Details
| Weight | 0.5 kg |
|---|
