High-Performance CPU and Memory

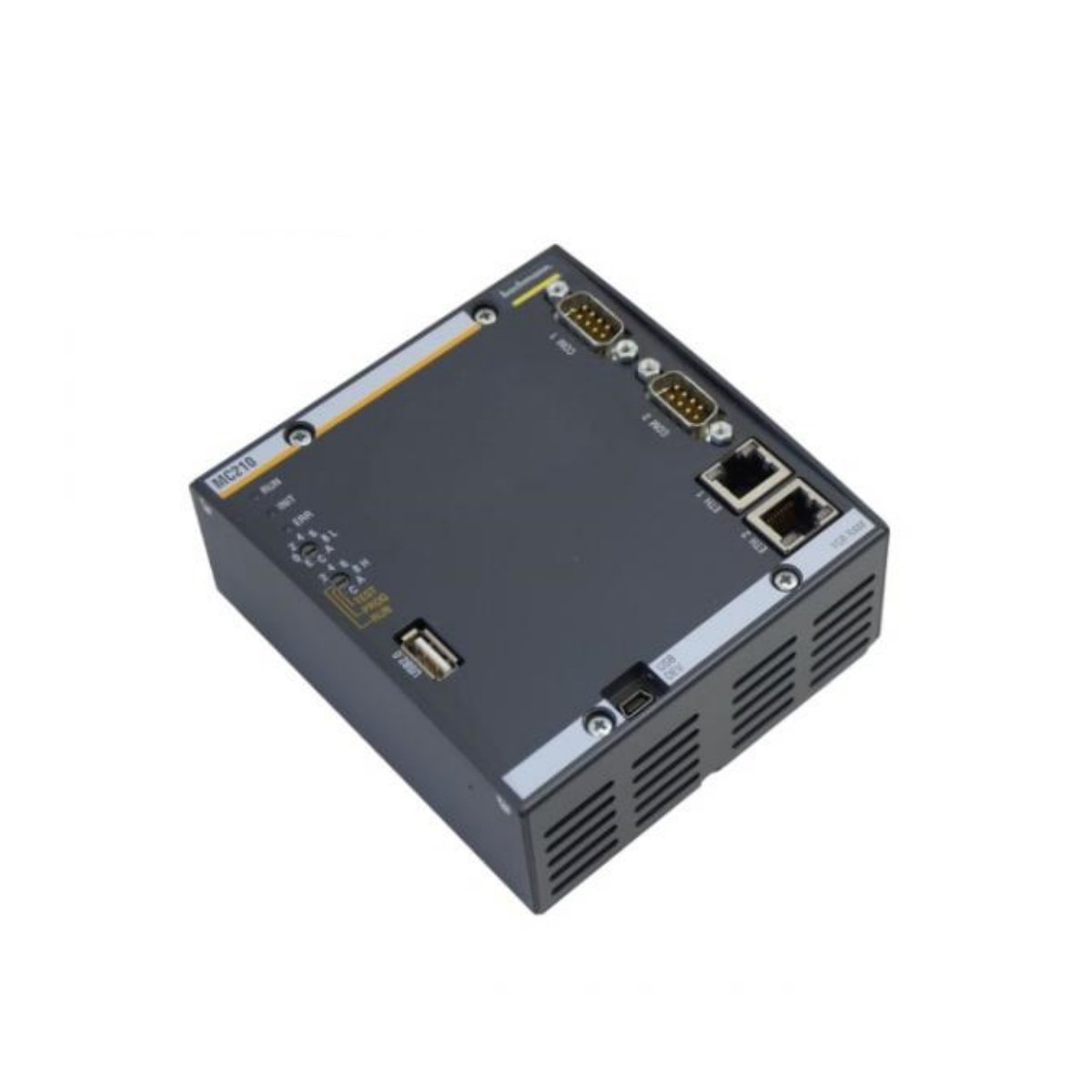

The Bachmann MC210 integrates a 1.6 GHz ATOM E680 CPU with 1 GB DDR2 DRAM, ensuring reliable processing for PLC, DCS, and factory automation applications. Moreover, it features 512 kB nvRAM for critical data and 64 MB internal FLASH, reserving 40 MB for application programs.
Flexible Storage and Expansion
The MC210 offers a side-accessible CFast slot with over 8 GB of storage, providing expandable memory for large process image applications. Additionally, its file-flash storage ensures efficient program execution without external devices.
Comprehensive Bachmann Interfaces
The module includes versatile communication interfaces: two Ethernet ports supporting 10/100/1000 Base-T with IEEE1588, one RS232, one configurable RS232/422/485 port, and USB 2.0 host plus a service USB device interface. Consequently, MC210 integrates seamlessly with modern industrial networks and automation systems.
Environmental Specifications
The Bachmann MC210 operates fan-free in temperatures from -30°C to +60°C. It tolerates storage from -40°C to +85°C with 5–95% humidity, non-condensing, ensuring stable performance in harsh industrial environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Product | Bachmann MC210 Process Image Controller |
| CPU | 1.6 GHz ATOM E680 |
| RAM | 1 GB DDR2 |
| nvRAM | 512 kB |
| Internal FLASH | 64 MB (40 MB free for application programs) |
| Mass Storage | 1x integrated CFast (>8 GB, side-accessible) |
| Serial Ports | 1x RS232, 1x RS232/422/485 (software configurable) |
| Ethernet | 2x 10/100/1000 Base-T with IEEE1588 |
| USB Host | 1x USB 2.0 |
| Service USB Interface | 1x USB device |
| I/O Bus | Process Image Controller |
| Operating Temperature | -30°C to +60°C, fan-free |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity (Storage) | 5–95%, non-condensing |
Design and Operational Advantages
The compact design of MC210 simplifies integration into control cabinets while maintaining high computational performance. Its fan-free architecture reduces maintenance requirements, and the variety of interfaces ensures compatibility with a wide range of industrial automation systems.
Origin, Dimensions, and Weight
- Origin: Germany
- Dimensions: 144 × 72 × 110 mm (approx.)
- Weight: 500 g
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 144 × 72 × 110 mm |
