Product Overview

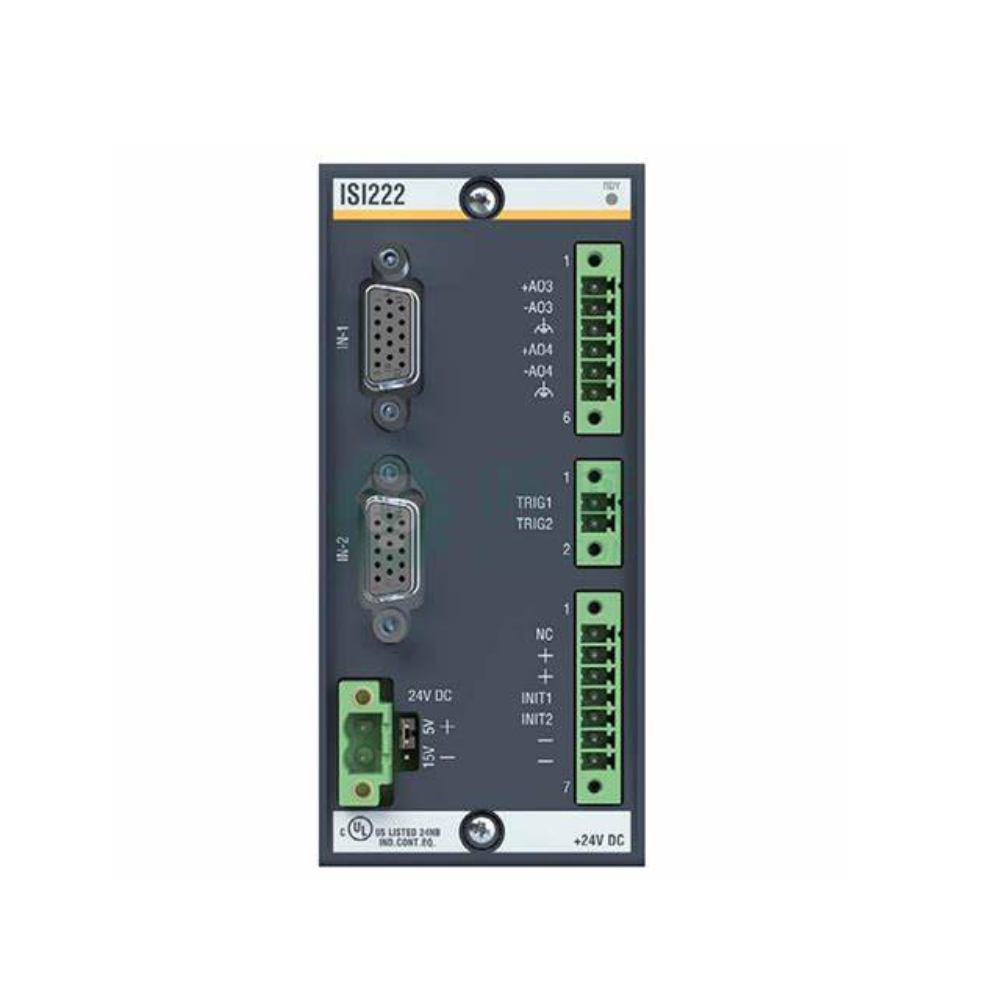

The Bachmann ISI222 00013737-00 is a highly precise positioning module designed for advanced motion control applications. This module is ideal for controlling two motion axes, providing high-speed synchronization and accurate positioning. It supports encoder interfaces for position acquisition, analog outputs for variable manipulation, and digital inputs for initiating control. The ISI222 integrates seamlessly with the Bachmann M1 system, enabling dynamic motion control and real-time error monitoring in challenging environments.
Key Features
Motion Control and Encoder Interface
- Input Channels: Two (2) input channels for incremental and SSI encoders with high-frequency support (up to 8 MHz).
- Encoder Supply: +5V, +15V, or +24V encoder supply options directly from the module.
- Full 32-bit Counter: Ensures precise and reliable position tracking.
- Synchronization: Supports SYNC and PreSYNC for accurate system synchronization.
- Analog Outputs: Two (2) 14-bit analog outputs with a ±10V range for precise control of manipulated variables.
Advanced Monitoring and Diagnostics
- Encoder Monitoring: Includes continuous monitoring of encoder voltage and wire break detection for enhanced reliability.
- Error Monitoring: Real-time checks of encoder resolution, wiring, and ESD issues to ensure optimal performance.
- Fast Digital Inputs: Four (4) 24V fast digital inputs for triggers and homing functions.
- Virtual Functions: Provides virtual usage for zero pulse, speed, and other position-related measurements.
Robust Design for Harsh Environments
- Environmental Monitoring: Suitable for use in challenging conditions with high electromagnetic interference.
- Compact and Reliable: Designed for sophisticated applications with high-speed requirements and precise motion control.
Technical Specifications
| Feature | Specification |
|---|---|
| Input Channels | 2x Incremental/SSI Encoders |
| Encoder Frequency | Up to 8 MHz |
| Analog Outputs | 2x 14-bit, ±10V output range |
| Digital Inputs | 4x 24V digital inputs for trigger and homing |
| Full Counter | 32-bit |
| Encoder Supply Options | 5V, 15V, or 24V Encoder Power Supply |
| Accuracy | 0.025% |
| Response Time | 40 µs |
| Synchronization | PreSYNC synchronization |
| Input Signal Monitoring | Encoder voltage, wire break monitoring |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| Pollution Degree | 2 (according to IEC 60664-1) |
Ordering Information
| Item | Item No. | Description |
|---|---|---|
| ISI222 | 00013737-00 | Positioning module; 2x In INC/SSI; 1 MHz; 32-bit; RS422 level; 2x Out ±10V; 14-bit resolution; accuracy of 0.025%; 4x DI 24V for trigger and homing functions |
Frequently Asked Questions (FAQ)
Q1: What is the maximum frequency supported by the input channels?
A1: The ISI222 supports input frequencies of up to 8 MHz for both incremental and SSI encoders.
Q2: Does the ISI222 module provide encoder power?
A2: Yes, the module offers selectable encoder power supply options: +5V, +15V, or +24V.
Q3: How accurate is the positioning with the ISI222?
A3: The ISI222 offers an impressive accuracy of 0.025% for precise positioning.
Q4: Can the ISI222 handle harsh environmental conditions?
A4: Yes, the ISI222 is designed with error monitoring and built-in protection against common wiring and environmental issues, making it suitable for demanding applications.
Q5: What is the response time of the ISI222 module?
A5: The ISI222 features a 40 µs response time for rapid position updates.
Details
| Weight | 1 kg |
|---|---|
| Dimensions | 1397 × 3023 × 1549 mm |
